FL225HET (2019)
CONTROL

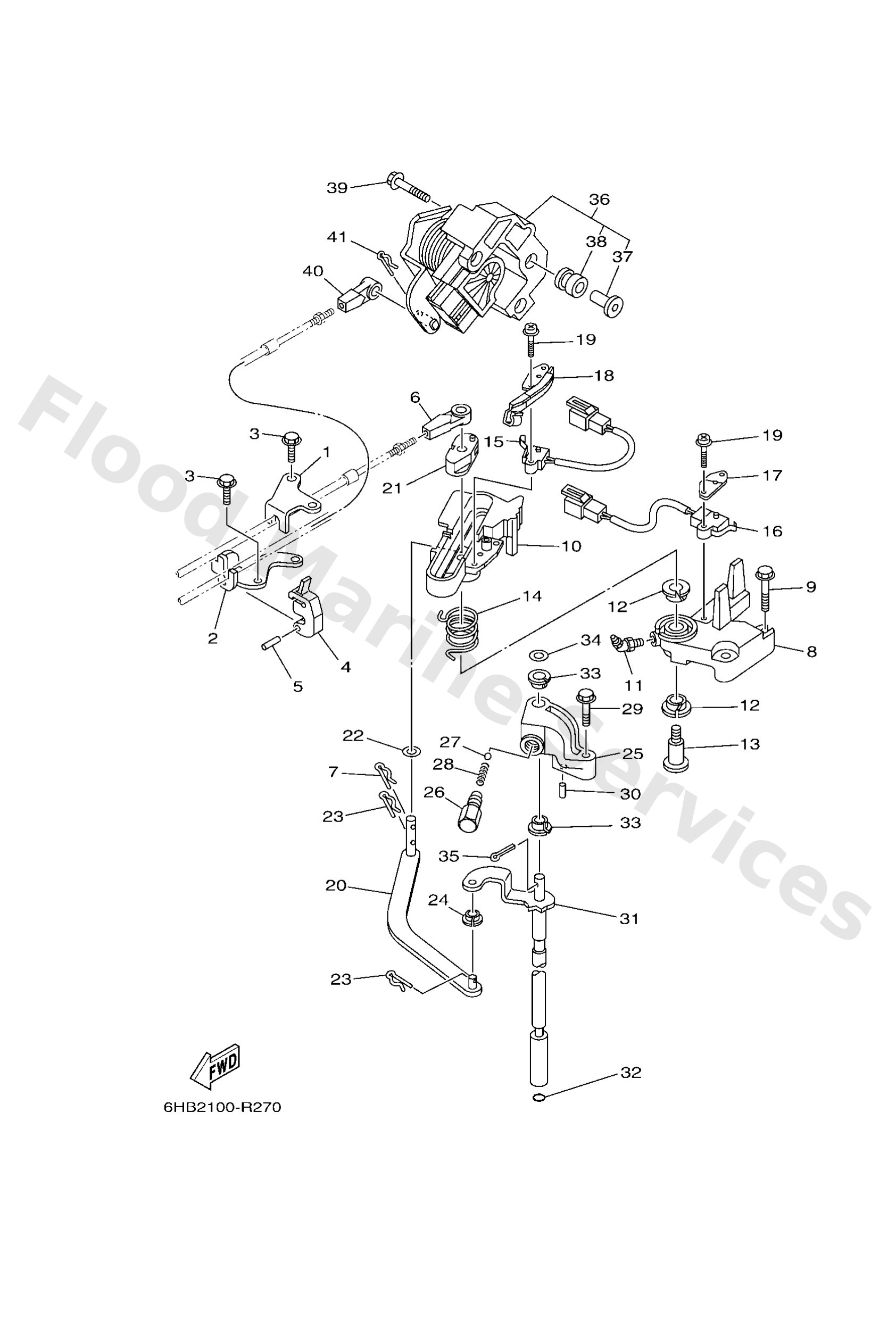

Diagram: CONTROL
Parts List
Reference
Description
Price
1
6CB4853100
Bracket, remote control 1
Loading…
↗
2
6CB4853200
Bracket, remote control 2
Loading…
↗
3
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
4
6E54853800
Clamp, cable
Loading…
↗
5
9169030010
Pin, Spring
Loading…
↗
6
6E54834400
22
Loading…
↗
7
9046818008
Clip
Loading…
↗
8
6CB4411700
Bracket
Loading…
↗
9
95D9506035
Bolt, flange deep recess
Loading…
↗
10
69J4417601
Bracket
Loading…
↗
11
9370006M01
22
Loading…
↗
12
9038612069
Bush
Loading…
↗
13
9010908019
Bolt
Loading…
↗
14
9050820052
Spring, torsion
Loading…
↗
15
60V8259F00
Switch Assy
Loading…
↗
16
69J8259F00
Switch Assy
Loading…
↗
17
61A8258801
Plate
Loading…
↗
18
6CB8258800
Plate
Loading…
↗
19
9798504116
Screw, With Washer
Loading…
↗
20
6CB4412100
Lever, shift rod
Loading…
↗
21
69J4412200
Bushing, Shift Rod Lever
Loading…
↗
22
9020208M20
22
Loading…
↗
24
9038606M12
22
Loading…
↗
25
69J4411800
Bracket
Loading…
↗
26
6484271500
19
Loading…
↗
27
9350104M02
Ball
Loading…
↗
28
9050112082
Spring, Compression
Loading…
↗
29
97E7506535
Bolt, hexagon w/w deep recess
Loading…
↗
31
6FR4412000
Handle gear shift assembly
Loading…
↗
32
9321009165
25
Loading…
↗
33
9038690M90
20
Loading…
↗
34
9020109M02
Washer, Plate
Loading…
↗
35
9149020015
Pin. Cotter
Loading…
↗
36
6CB8A41010
Sensor unit
Loading…
↗
37
6P24413900
Collar
Loading…
↗
38
6CB4127300
Grommet
Loading…
↗
39
9011906126
Bolt, with washer
