Yamaha Outboard Parts - CONTROL - LF200CB (2023) | Flood Marine

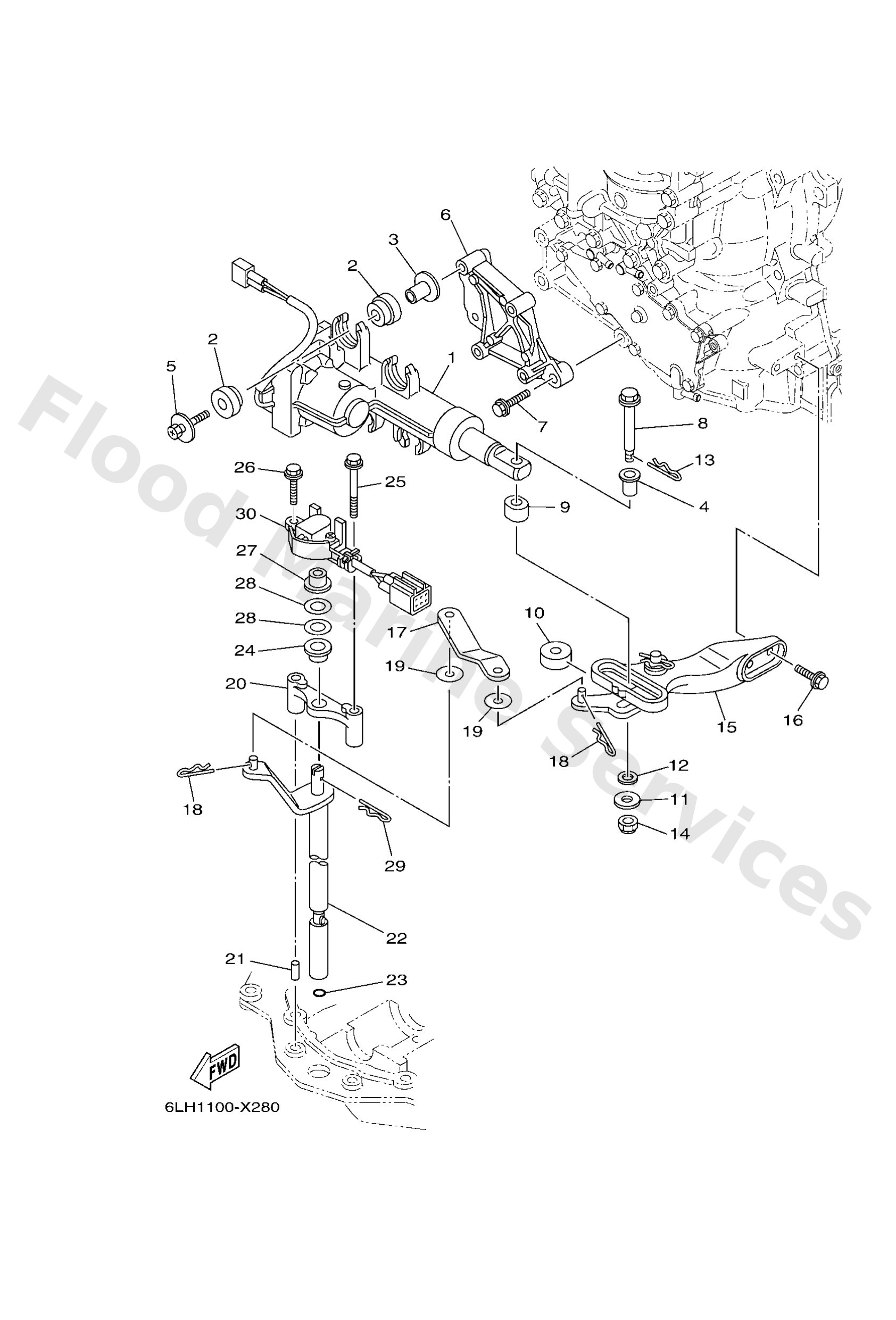

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
6DV4820A01
Actuator unit
Loading…

↗
2
6DV8556400
Grommet
Loading…

↗
3
9038706176
Collar
Loading…

↗
4
9038608008
Bush
Loading…

↗
5
68F8511900
Bolt
Loading…

↗
6
6DV4414200
Joint
Loading…

↗
7
95D7508030
Bolt, flange deep recess
Loading…

↗
8
6DV4219500
Pin, joint 1
Loading…

↗
9
6DV4412200
Bushing, shift rod lever
Loading…

↗
10
6DV4413200
Bushing
Loading…

↗
11
9020106068
Washer,plate (6k8)
Loading…

↗
12
9020208M41
Washer, plate(6t4)
Loading…

↗
13
9046818008
Clip 620436610000
Loading…

↗
14
9018506M07
Nut, self-locking(6e5)
Loading…

↗
15
6DV4410000
Shift link assembly
Loading…

↗
16
97E7506520
Bolt, hexagon w/w deep recess
Loading…

↗
17
6DV4412100
Lever, shift rod
Loading…

↗
19
9020206015
Washer, plate
Loading…

↗
20
6DV4411800
Bracket
Loading…

↗
21
9360409066
Pin, dowel
Loading…

↗
22
6DV4412003 X(25.2")
Handle gear shift assembly
Loading…

↗
22
6DV4412012 L(20.3")
Handle gear shift assembly
Loading…

↗
23
9321009165
O-ring
Loading…

↗
24
9038610001
Bush
Loading…

↗
25
97E9506550
Bolt, hexagon w/w deep recess
Loading…

↗
28
9020111008
Washer, plate
Loading…

↗
29
90468180A0
Clip
Loading…

↗
30
6DV6830300
Sensor assembly
Loading…

↗
