Yamaha Outboard Parts - CONTROL 1 - FT8DE (2003) | Flood Marine

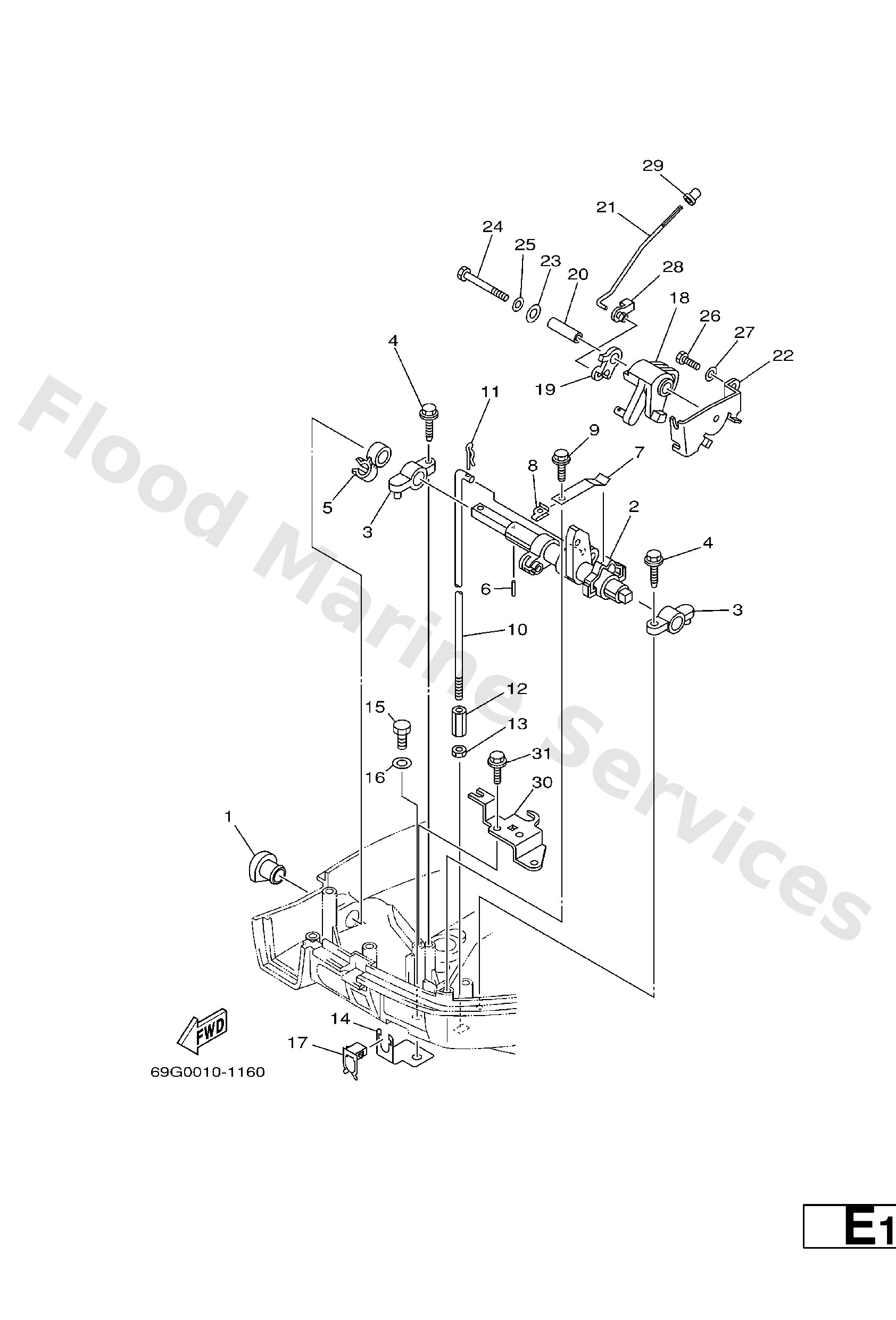

Diagram: CONTROL 1

Diagram

Parts List

Reference
Description
Price


1
68T−42726−00
Grommet
Loading…

↗
2
68T−44121−01
Lever, shift rod
Loading…

↗
3
6G1−41662−01−94
Bracket
Loading…

↗
4
90109−06M81
Bolt
Loading…

↗
5
90464−10M60
Clamp
Loading…

↗
6
91690−30014
Pin, spring (647)
Loading…

↗
7
65W−44116−00
Spring
Loading…

↗
8
66R−44117−00
Bracket
Loading…

↗
9
90109−06M86
Bolt
Loading…

↗
10
68T−44143−10
Rod, shift 1
Loading…

↗
11
90468−18001
Clip
Loading…

↗
12
90170−06015
Connector, shift rod
Loading…

↗
13
95380−06700
Nut
Loading…

↗
14
68T−48538−00
Clamp, cable 1
Loading…

↗
15
97095−06012
Bolt(gh1)
Loading…

↗
16
92995−06600
Washer, plain (646)
Loading…

↗
17
63D−48538−00
Clamp, cable 1
Loading…

↗
18
68T−41638−00
Pulley
Loading…

↗
19
68T−41283−00
Lever, free accel.
Loading…

↗
20
90387−06M59
Collar (6h3)
Loading…

↗
21
68T−41211−00
Link, accel.
Loading…

↗
22
68T−14497−00
Stay, throttle wire
Loading…

↗
23
90201−06M62
Washer, plate (6e5)
Loading…

↗
24
97095−06045
Bolt, hexagon
Loading…

↗
28
661−41262−02
Joint, choke lever
Loading…

↗
29
647−14395−60
Cap,over flow pipe
Loading…

↗
30
68T−15774−10
Stay 4
Loading…

↗
