E25B (2010)
CONTROL 2

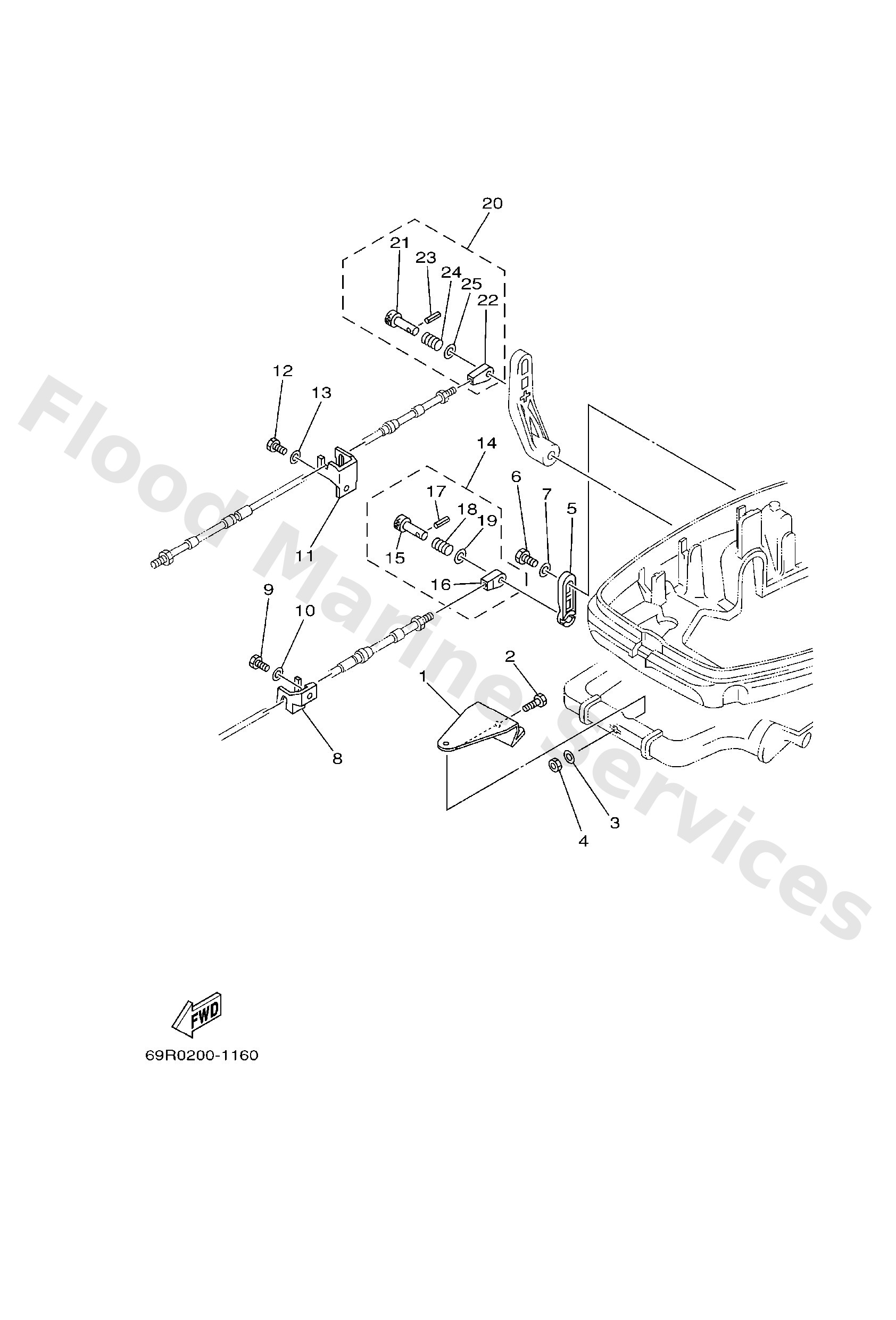

Diagram: CONTROL 2
Parts List
Reference
Description
Price
1
6894851101
BALL POST/STEERING GUIDE TYPE
Hook, steering
Loading…
↗
2
9707510040
Bolt, hexagon deep recess
Loading…
↗
3
9299010600
Washer, plate
Loading…
↗
4
9018510051
Nut, self-locking
Loading…
↗
5
64848534504D
Throttle lever, control
Loading…
↗
6
9709506012
Bolt(gh1)
Loading…
↗
7
9299506600
Washer, plain (646)
Loading…
↗
8
6894853250
Bracket, remote control 2
Loading…
↗
9
9709506016
Bolt, hexagon deep recess
Loading…
↗
11
6894853150
Bracket, remote control 1
Loading…
↗
14
6484834050
Cable end assembly
Loading…
↗
15
6174836191
Hook, cable
Loading…
↗
16
6174834690
Cable end, remote control
Loading…
↗
17
9169030012
Pin, spring
Loading…
↗
18
9050110264
Spring 6174833290
Loading…
↗
19
9299008600
Washer, plain (663)
Loading…
↗
20
6484833050
Cable end assembly
Loading…
↗
21
6174833191
Hook, cable
Loading…
↗
22
6484834650
Cable,end remote control 3
Loading…
↗
24
9050110071
Spring 6044833200
Loading…
↗
