F200AET (2003)
CONTROL 3

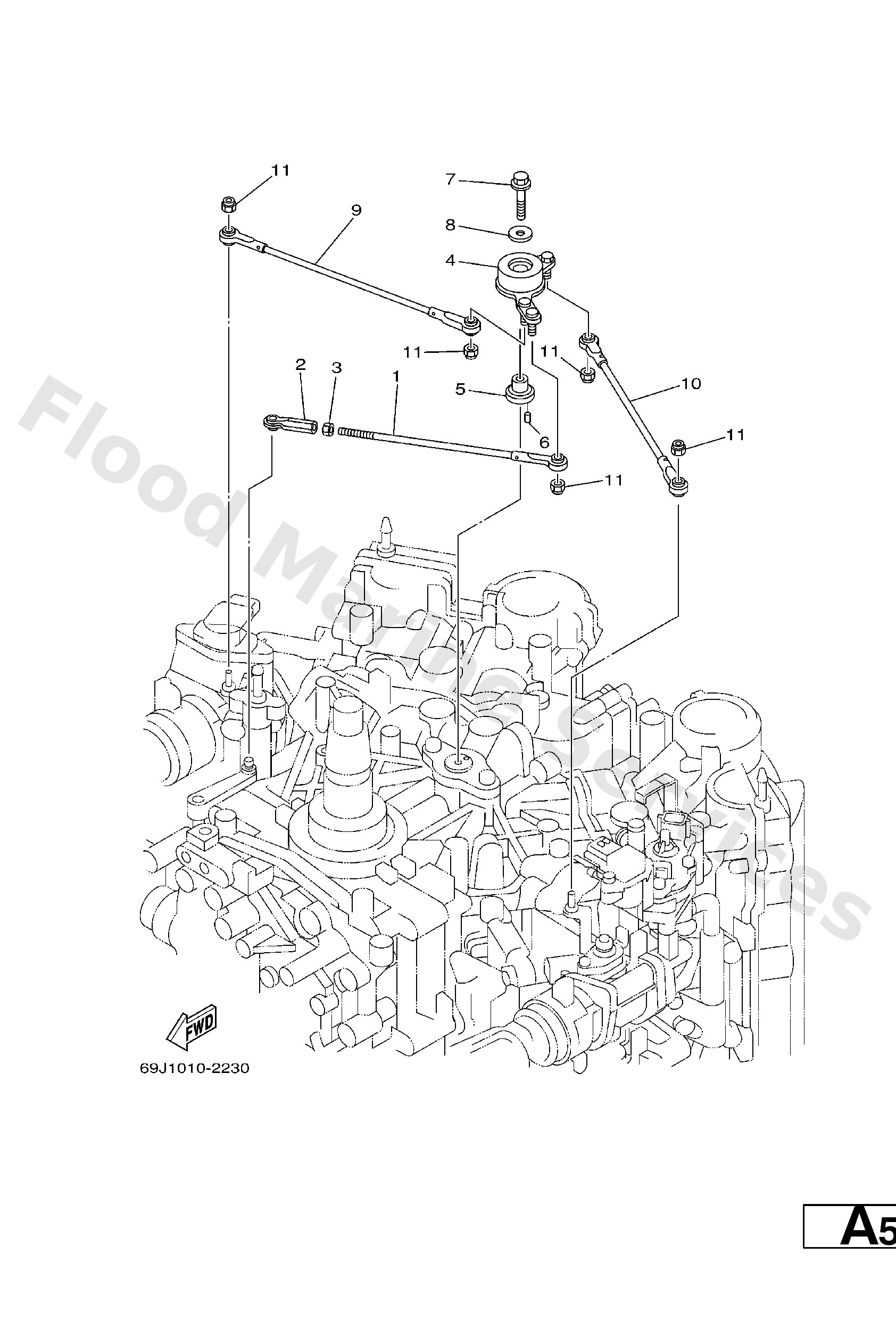

Diagram: CONTROL 3
Parts List
Reference
Description
Price
1
69J4124100
Rod, link
Loading…
↗
1
69J−41241−00
Rod, link
Loading…
↗
2
682--41237--00
Joint, link 2
Loading…
↗
2
682−41237−00
Joint, link 2
Loading…
↗
3
95380−05600
Nut, hexagon (663)
Loading…
↗
3
95380--05600
Nut, hexagon (663)
Loading…
↗
4
69J−41210−00
Accel. arm assembly
Loading…
↗
4
69J4121000
Accel. arm assembly
Loading…
↗
5
69J−41635−00
Shaft, link connecting
Loading…
↗
5
69J4163500
Shaft, link connecting
Loading…
↗
6
91690−30008
Pin. spring(656)
Loading…
↗
6
91690--30008
Pin. spring(656)
Loading…
↗
7
95895--06030
Bolt, flange deep recess
Loading…
↗
7
95895−06030
Bolt, flange deep recess
Loading…
↗
8
90201--06M31
Washer (6a0)
Loading…
↗
8
90201−06M31
Washer (6a0)
Loading…
↗
9
69J4121100
Link, accel.
Loading…
↗
9
69J−41211−00
Link, accel.
Loading…
↗
10
69J4163600
Rod, magneto control
Loading…
↗
10
69J−41636−00
Rod, magneto control
Loading…
↗
11
9568005100
Nut, u (705)
Loading…
↗
11
95680−05100
Nut, u (705)
