F30AWHD (2006)
CYLINDER & CRANKCASE 1

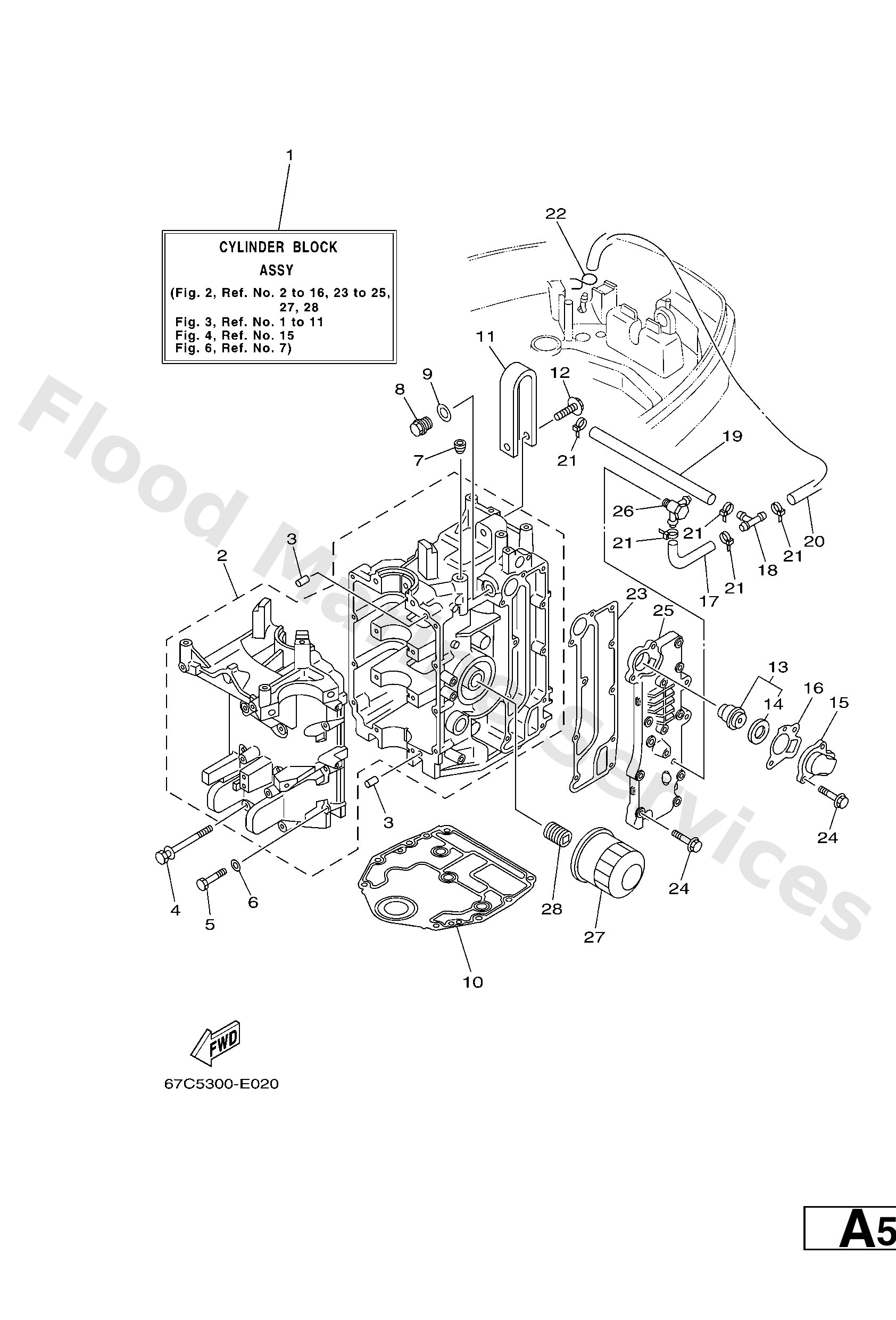

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
67CW009B021S
Cylinder block assembly
Loading…
↗
2
67C151000194
Crankcase assembly
Loading…
↗
3
9953008012
Pin, dowel(6g8)
Loading…
↗
4
9011908M01
Bolt, with washer(62y)
Loading…
↗
5
9701306035
Bolt(3rv)
Loading…
↗
6
9290306600
Washer, plain (646)
Loading…
↗
7
9034451M01
Plug, Taper Screw
Loading…
↗
8
9034014M06
Plug, straight screw(62y)
Loading…
↗
9
9043014115
Gasket (663)
Loading…
↗
10
67C1135101
Gasket, cylinder
Loading…
↗
11
65W1111900
2 – 11
Loading…
↗
12
9010508M87
Bolt, washer based
Loading…
↗
13
6G81241103
Thermostat
Loading…
↗
14
6881241200
Seal, thermostat
Loading…
↗
15
6H312413001S
Cover, thermostat
Loading…
↗
16
62Y1241400
Gasket, cover
Loading…
↗
17
9044509068
Hose (l420)
Loading…
↗
18
6882437800
Pipe, joint
Loading…
↗
19
9044509095
Hose (L215)
Loading…
↗
20
9044509104
Hose (l1500)
Loading…
↗
21
9046511M10
Clamp
Loading…
↗
22
9046708004
Clip, pipe 6162435600
Loading…
↗
23
67C4111410
Gasket, exhaust outer cover
Loading…
↗
24
9011906MA5
Bolt, with washer
Loading…
↗
25
67C41113011S
Outer cover, exhaust
Loading…
↗
26
62Y1137201
FLUSHING KIT
Nipple, hose
Loading…
↗
27
5GH1344000
Element assembly, oil cleaner
Loading…
↗
28
9040120M00
Bolt, union(62y)
Loading…
↗
