F50HED (2015)
CYLINDER & CRANKCASE 1

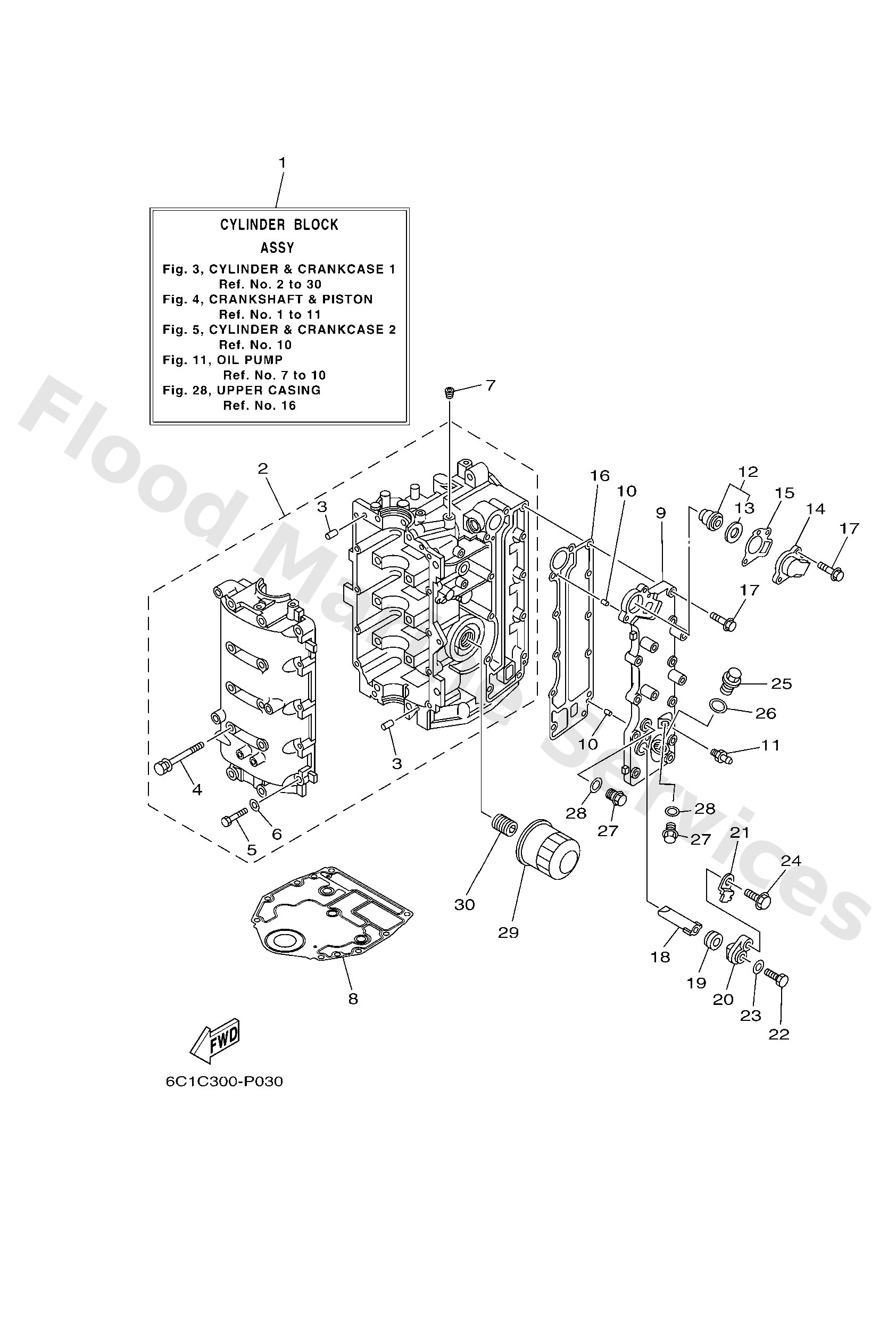

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
6C5W009B059S
Cylinder block assembly
Loading…
↗
2
6C51510012
Crankcase assembly
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
9011908154
Bolt, with washer
Loading…
↗
5
9701306035
Bolt(3rv)
Loading…
↗
6
9290306600
Washer, plain (646)
Loading…
↗
7
9034451003
Plug, taper screw
Loading…
↗
8
6BG1135100
Gasket, cylinder
Loading…
↗
9
6C541113119S
Outer cover, exhaust
Loading…
↗
10
9360410M03
Pin, dowel (688)
Loading…
↗
11
62Y1248110
Pipe 1
Loading…
↗
12
6G81241103
Thermostat
Loading…
↗
13
6881241200
Seal, thermostat
Loading…
↗
14
6C512413009S
Cover, thermostat
Loading…
↗
15
62Y1241400
Gasket, cover
Loading…
↗
16
6C54111410
Gasket, exhaust outer cover
Loading…
↗
17
9011906MA5
Bolt, with washer
Loading…
↗
18
62Y1132500
Anode
Loading…
↗
19
66M1132800
Grommet, anode
Loading…
↗
20
66M113270094
Cover, anode
Loading…
↗
21
66M1253500
Plate
Loading…
↗
22
9709505012
Bolt, hexagon
Loading…
↗
23
9299505600
Washer, plain (646)
Loading…
↗
24
9759506520
Bolt(7u8)
Loading…
↗
25
9034018M09
Plug, straight screw
Loading…
↗
26
90201186F1
Washer, plate (22f)
Loading…
↗
27
9034014M06
Plug, straight screw(62y)
Loading…
↗
28
9043014115
Gasket (663)
Loading…
↗
29
5GH1344050
Element assembly, oil cleaner
Loading…
↗
30
6C51285800
Bolt, union
Loading…
↗
