150AET (2002)
CYLINDER. CRANKCASE 1

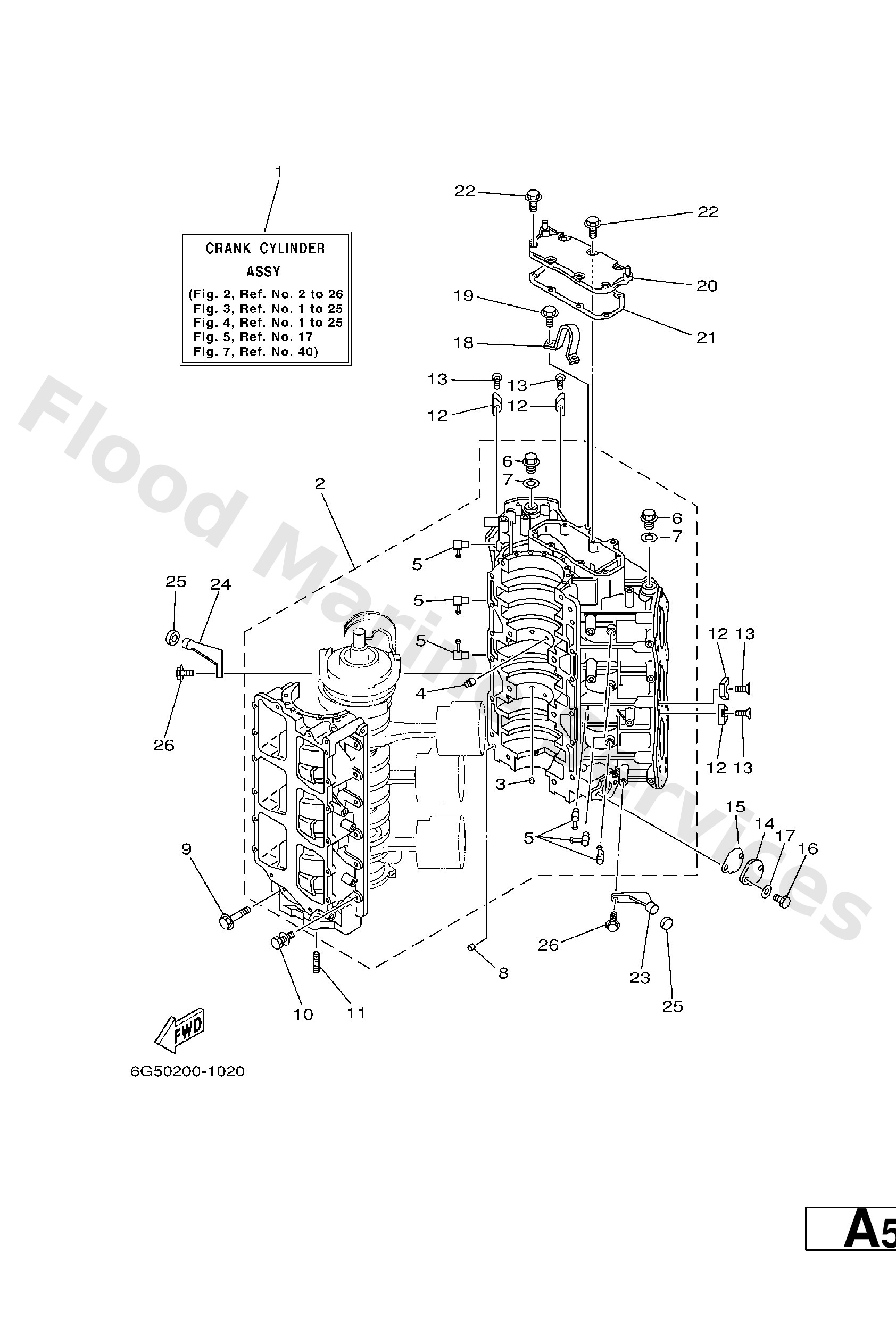

Diagram: CYLINDER. CRANKCASE 1
Parts List
Reference
Description
Price
3
6241137900
Valve, check
Loading…
↗
4
6631151801
Lock, bearing
Loading…
↗
5
6461137000
Check valve assembly
Loading…
↗
6
9034014M00
Plug, straight screw(62y)
Loading…
↗
7
9043014115
Gasket (663)
Loading…
↗
8
9360812063
Pin, dowel (626)
Loading…
↗
9
9010510M20
Bolt (6e5)
Loading…
↗
10
9011908M94
Bolt, with washer
Loading…
↗
11
9011608M45
Bolt, stud (6e5)
Loading…
↗
12
6E51132500
Anode
Loading…
↗
13
9878004015
Screw, flat head(ga5)
Loading…
↗
14
6R31131M01
Cover
Loading…
↗
15
6R31139701
-
Loading…
↗
16
9701306016
Bolt, hexagon deep recess
Loading…
↗
17
9290306600
Washer, plain (646)
Loading…
↗
18
6E51111901
Hanger, engine
Loading…
↗
19
9011908MA3
Bolt, with washer
Loading…
↗
21
6E511381A2
Gasket 1
Loading…
↗
22
9011906MA2
Bolt, with washer
Loading…
↗
25
68F4453300
Damper, upper mount rubber
Loading…
↗
