175DETO (2003)
CYLINDER. CRANKCASE 1

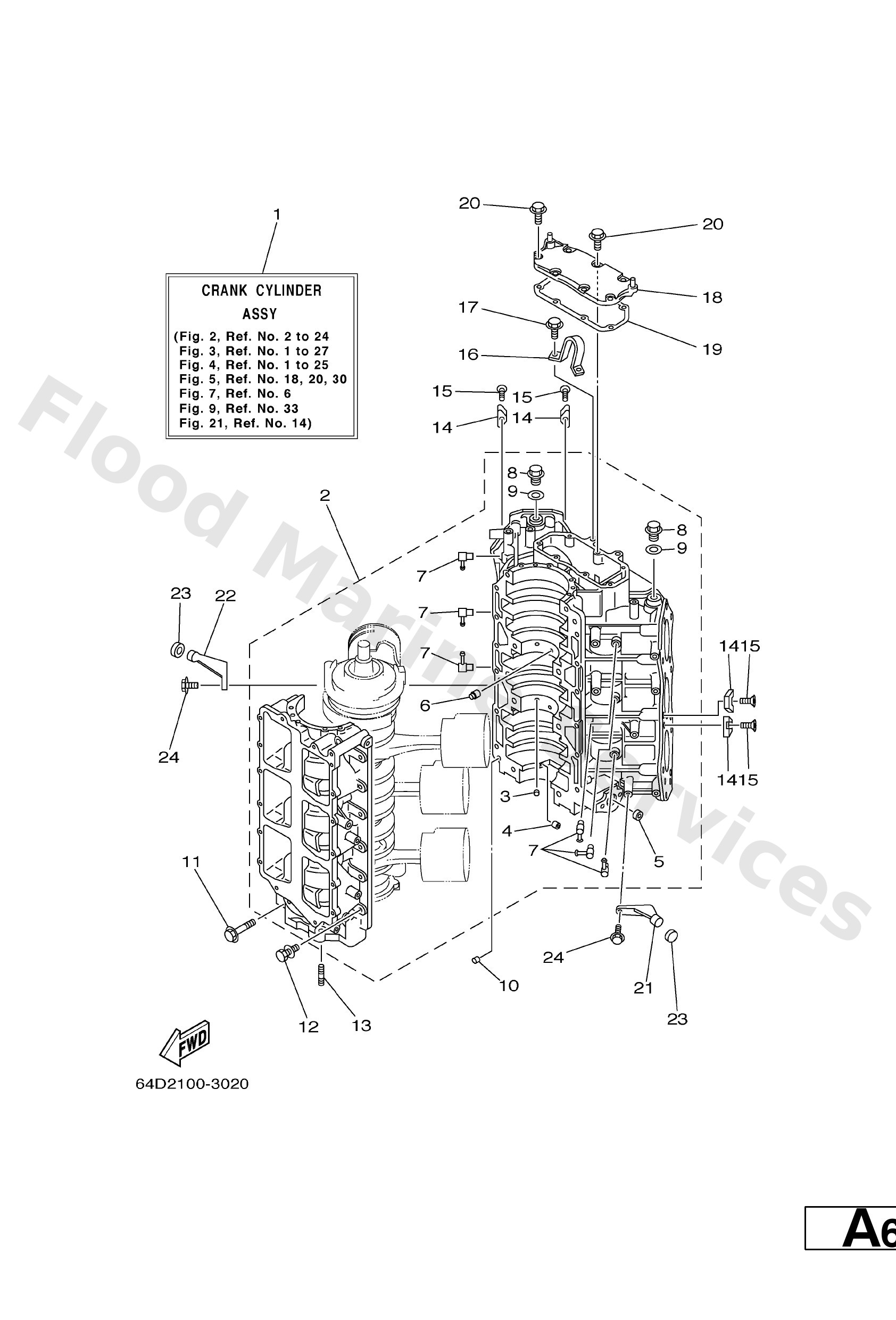

Diagram: CYLINDER. CRANKCASE 1
Parts List
Reference
Description
Price
3
624−11379−00
Valve, check
Loading…
↗
4
90384−06M07
Bush, bimetal formed(6r3)
Loading…
↗
5
90384−14M09
Bush, bimetal formed(6r3)
Loading…
↗
6
663−11518−01
Lock, bearing
Loading…
↗
7
646−11370−01
Check valve assembly
Loading…
↗
8
90340−14M00
Plug, straight screw(62y)
Loading…
↗
9
90430−14115
Gasket (663)
Loading…
↗
10
93608−12063
Pin, dowel (626)
Loading…
↗
11
90105−10M20
Bolt (6e5)
Loading…
↗
12
90119−08M94
Bolt, with washer
Loading…
↗
13
90116−08M45
Bolt, stud (6e5)
Loading…
↗
14
6E5−11325−00
Anode
Loading…
↗
15
98780−04015
Screw, flat head(ga5)
Loading…
↗
16
67H−11119−01
Hanger, engine
Loading…
↗
17
90119−08MA3
Bolt, with washer
Loading…
↗
18
6K7−11371−01−1S
Cover
Loading…
↗
19
6E5−11381−A2
Gasket 1
Loading…
↗
20
90119−06MA2
Bolt, with washer
Loading…
↗
23
68F−44533−00
Damper, upper mount rubber
Loading…
↗
