E40XMH (1998)
Carburetor

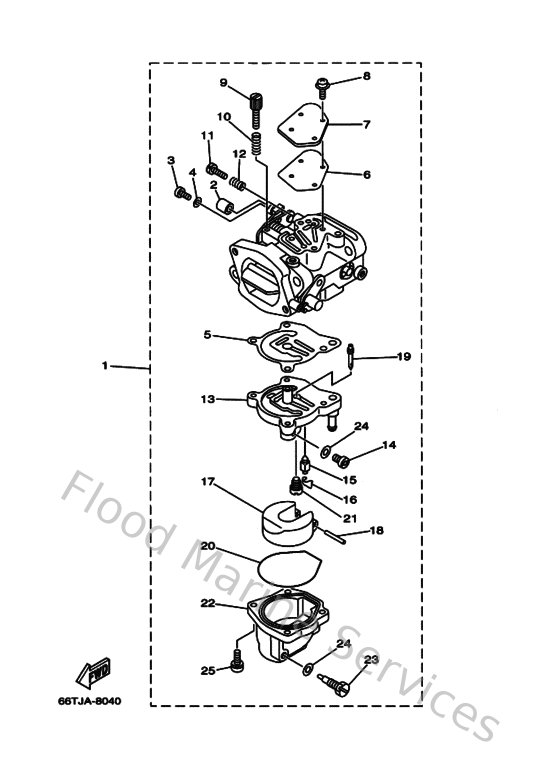

Diagram: Carburetor
Parts List
Reference
Description
Price
1
66T143010000
Carburetor assembly 1
Loading…
↗
2
6J8145780000
Collar
Loading…
↗
3
6J8145920100
Screw
Loading…
↗
4
929900560000
Washer, plain (646)
Loading…
↗
5
66T143840000
Gasket, float chamber
Loading…
↗
6
66T145360100
Gasket
Loading…
↗
7
66T145270000
Plate
Loading…
↗
8
979800411200
Screw, pan head (686)
Loading…
↗
9
66T145230000
Screw, stop
Loading…
↗
10
6J8143340000
Spring, throttle
Loading…
↗
11
6E5143230300
Screw, air adjusting
Loading…
↗
12
6E5142230000
Spring, air adjusting
Loading…
↗
13
66T149450000
Spacer assembly (#38)
Loading…
↗
14
61A1492E8500
Jet, main (#170)
Loading…
↗
15
6E5145460000
Valve, needle
Loading…
↗
16
6E5141590000
Clip
Loading…
↗
17
6E5143850200
Float
Loading…
↗
18
6E5143860200
Pin, float
Loading…
↗
19
66T1492F3500
Jet, air slow (#70)
Loading…
↗
20
66T149840000
Gasket, float chamber
Loading…
↗
21
66T149920000
Plug
Loading…
↗
22
66T149810000
Body, float chamber
Loading…
↗
23
66T149910000
Plug, drain
Loading…
↗
24
66T149590000
Gasket
Loading…
↗
25
979800512500
Screw, panhead (a93)
Loading…
↗
