Yamaha Outboard Parts - Carburetor Link - F45A (1996) | Flood Marine

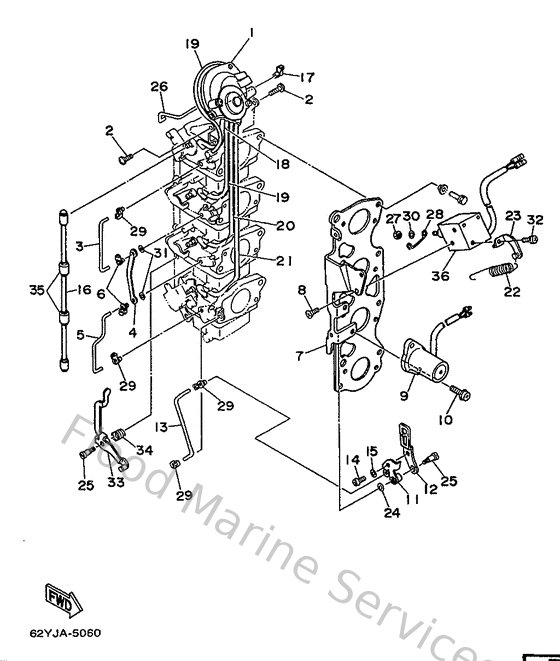

Diagram: Carburetor Link

Diagram

Parts List

Reference
Description
Price


2
978900500600
Screw,panhead (eg9)
Loading…

↗
3
62Y145850000
Rod, Choke
Loading…

↗
4
62Y145851000
Rod, Choke
Loading…

↗
5
62Y145852000
Rod, Choke
Loading…

↗
6
6F5412620100
Joint, throttle lever
Loading…

↗
8
62Y145920000
Screw
Loading…

↗
9
62Y143800000
Prime starter assembly
Loading…

↗
10
62Y144290000
Screw
Loading…

↗
11
62Y141750000
Lever, Starter 1
Loading…

↗
13
62Y145853000
Rod, Choke
Loading…

↗
14
62Y145670000
Screw
Loading…

↗
15
929900560000
Washer, plain (646)
Loading…

↗
17
62Y412620000
Joint, choke lever
Loading…

↗
18
62Y143491000
Pipe
Loading…

↗
19
62Y143492000
Pipe
Loading…

↗
20
62Y143490000
Pipe
Loading…

↗
21
62Y143493000
Pipe
Loading…

↗
22
62Y144870000
Spring
Loading…

↗
24
929900460000
Washer, plain (646)
Loading…

↗
25
62Y144291000
Screw
Loading…

↗
26
62Y145855000
Rod, Choke
Loading…

↗
27
62Y142580000
Nut, lock
Loading…

↗
28
62Y1212A0000
Wire, Plus Lead
Loading…

↗
30
62Y144751000
Washer
Loading…

↗
33
62Y143600000
Throttle Damper assembly
Loading…

↗
34
62Y145550000
Spring
Loading…

↗
35
62Y145780000
Collar
Loading…

↗
36
6E9861110100
Coil, solenoid
Loading…

↗
