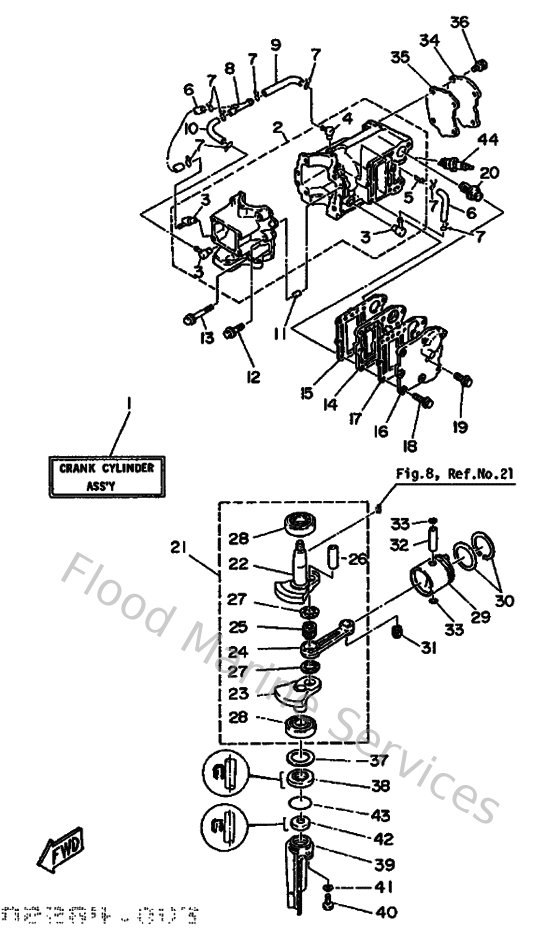

Diagram: Cylinder & Crankcase

Diagram

Parts List

Reference
Description
Price


1
6E3W009002EJ
Crank cylinder assembly
Loading…

↗
2
6E3151000294
Crankcase assembly
Loading…

↗
3
650113700000
Check valve assembly
Loading…

↗
4
6E5113720000
Nipple, hose
Loading…

↗
5
624144850000
Pipe, joint
Loading…

↗
6
9044507M2800
Hose (l200)
Loading…

↗
7
904670601600
Clip (655)
Loading…

↗
8
6E0243780000
Pipe, joint
Loading…

↗
9
9044507M5100
Hose (l200)
Loading…

↗
10
9044507MA300
Hose (l200)
Loading…

↗
11
936061201900
Pin, dowel (614)
Loading…

↗
12
9010506M1600
Bolt (6e0)
Loading…

↗
14
6E341111019M
Inner cover, exhaust
Loading…

↗
15
6E3411120100
Gasket,inner cover exhaust
Loading…

↗
16
6E341113011S
Outer cover, exhaust
Loading…

↗
17
6E3411140100
Gasket,outer cover exhaust
Loading…

↗
18
9010506M2400
Bolt (6g1)
Loading…

↗
19
9010506M1400
Bolt (6e0)
Loading…

↗
20
6E5124110200
Thermostat
Loading…

↗
22
6E3114120000
Crank 1
Loading…

↗
23
6E3114220000
Crank 2
Loading…

↗
24
6E0116510100
Rod, connecting
Loading…

↗
25
93310418V100
Bearing (6e0)
Loading…

↗
27
902091811200
Washer 132116850000
Loading…

↗
28
933062041100
Bearing(6e0)
Loading…

↗
29
6E3116310098
Piston
Loading…

↗
30
6J1116100000
Piston ring set (std)
Loading…

↗
31
93310112V000
Bearing (6e0)
Loading…

↗
32
6G1116330000
Pin, piston
Loading…

↗
33
934501302200
Circlip 132116340000
Loading…

↗
37
676455672000
Shim (t:0.90mm)
Loading…

↗
38
9310220M0600
Oil seal(6j1)
Loading…

↗
39
6E015396019M
Housing, oil seal
Loading…

↗
40
973950601600
Bolt, hexagon deep recess
Loading…

↗
41
929900660000
Washer, plain (646)
Loading…

↗
42
9310111M2500
Oil seal(6e0)
Loading…

↗
43
932103111400
O-ring
Loading…

↗
44
947020027200
Plug, spark (br7hs)
Loading…

↗
