25NMHO (2004)
ELECTRICAL 1

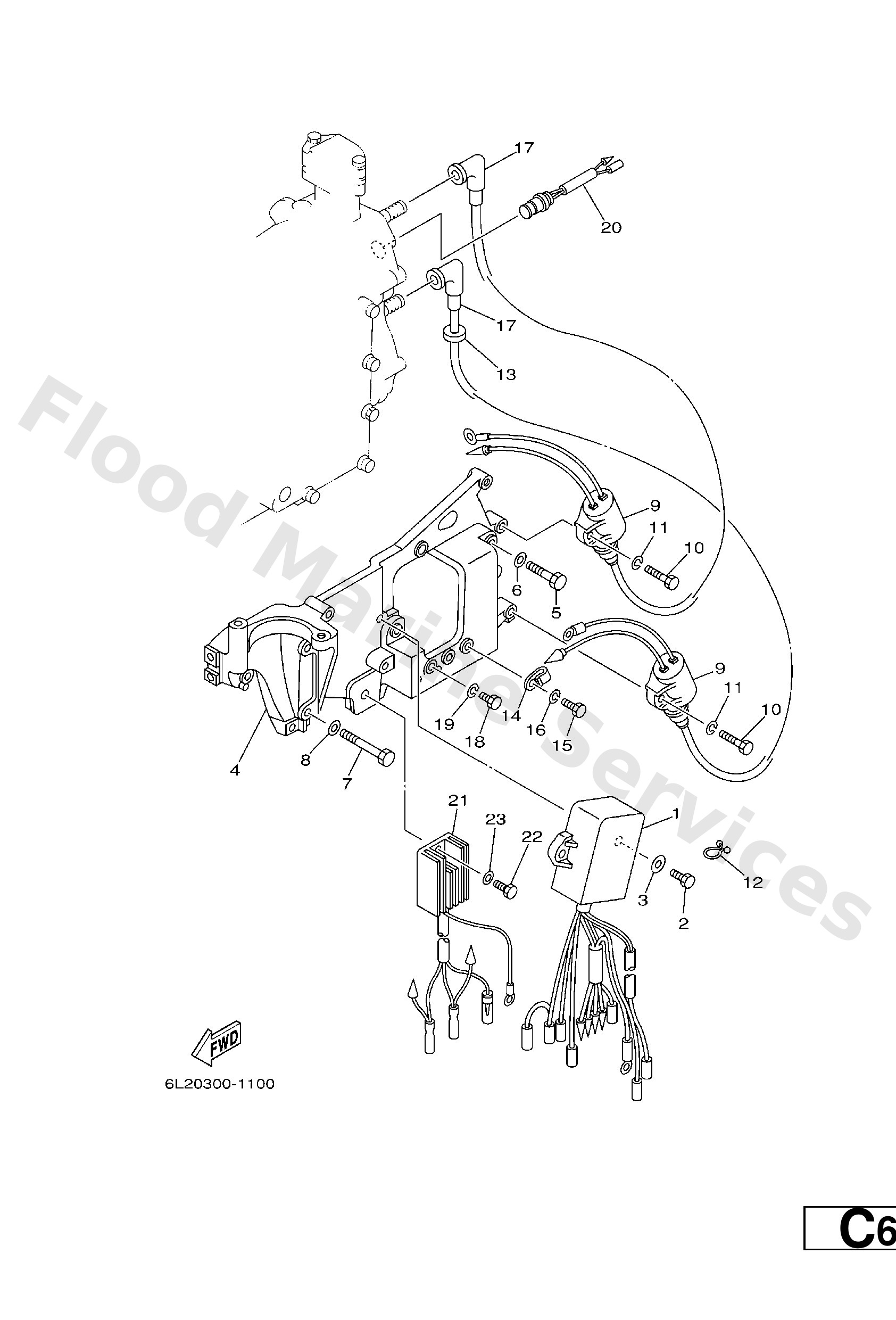

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6L28554023
C.d.i. unit assembly
Loading…
↗
2
9709506020
Bolt(7u8)
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
6L2855420294
Bracket
Loading…
↗
5
9707506030
Bolt(jf7)
Loading…
↗
7
9010106M16
Bolt(6l2)
Loading…
↗
8
9290306600
Washer, plain (646)
Loading…
↗
9
61N8557000
Ignition coil assembly
Loading…
↗
11
9299506100
Washer(6a1)
Loading…
↗
12
9046408M07
Clamp
Loading…
↗
13
9048025161
Grommet(656)
Loading…
↗
14
9046506M86
Clamp
Loading…
↗
15
9709506012
Bolt(gh1)
Loading…
↗
17
6G18237021
Plug cap assembly
Loading…
↗
20
6898256000
Thermo switch assembly
Loading…
↗
21
6J88196000
Rectifier & regulator assembly
Loading…
↗
22
9709506016
Bolt, hexagon deep recess
Loading…
↗
