Yamaha Outboard Parts - ELECTRICAL 1 - FL250AET (2006) | Flood Marine

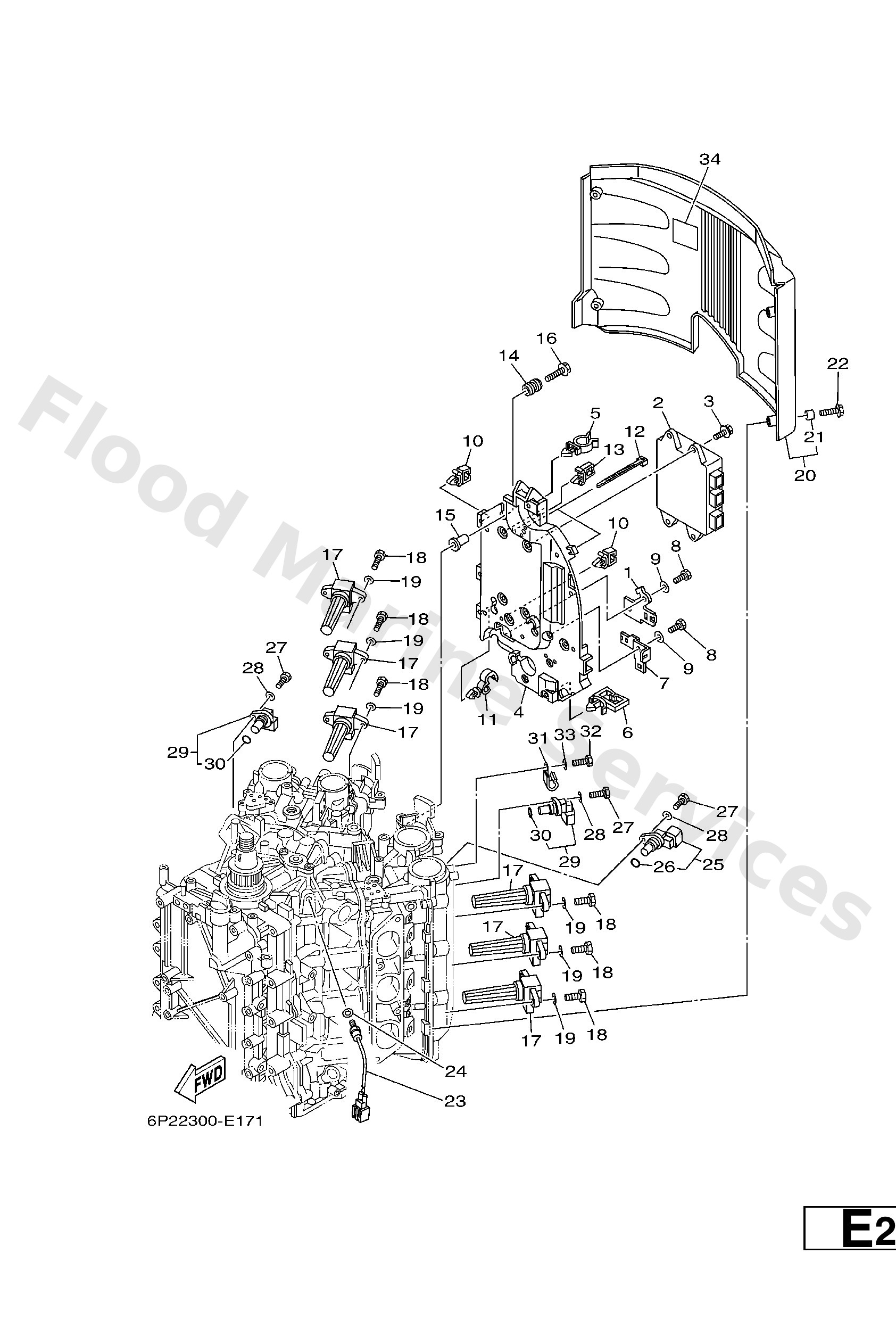

Diagram: ELECTRICAL 1

Diagram

Parts List

Reference
Description
Price


1
6P28257V00
Plate, connector
Loading…

↗
2
6P28591A00
Engine control unit assembly
Loading…

↗
3
9011906M82
Bolt, With Washer
Loading…

↗
4
6P28231600
Bracket, ignition coil
Loading…

↗
5
9046419M45
Clamp(65j)
Loading…

↗
6
9046423199
Clamp
Loading…

↗
7
6P28184500
Plate
Loading…

↗
8
9709506016
Bolt
Loading…

↗
9
9299506600
10
Loading…

↗
10
9046411121
Clamp(4gy)
Loading…

↗
11
9046413249
Clamp
Loading…

↗
12
9046514M66
Clamp
Loading…

↗
13
9046408004
14
Loading…

↗
14
6A08231700
Damper, Ignition Coil
Loading…

↗
15
9038706119
Collar
Loading…

↗
16
9011906M59
Bolt, With Washer
Loading…

↗
17
6P28231000
Ignition coil assembly
Loading…

↗
18
9709506020
Bolt
Loading…

↗
20
6P28231400
Cover, ignition coil
Loading…

↗
21
9038706044
Collar
Loading…

↗
22
9011906M92
Bolt, With Washer
Loading…

↗
23
61A8579000
Thermosensor Assy
Loading…

↗
24
9299010600
Washer, Plate
Loading…

↗
25
6P28589600
Sensor, Cam Position
Loading…

↗
26
6P28507500
O-Ring
Loading…

↗
29
6P28589700
Sensor, cam position 2
Loading…

↗
31
9046208032
Clamp
Loading…

↗
32
9709506012
Bolt
Loading…

↗
34
67F1213860
Mark, Caution
Loading…

↗
