F15CEH (2007)
ELECTRICAL 4

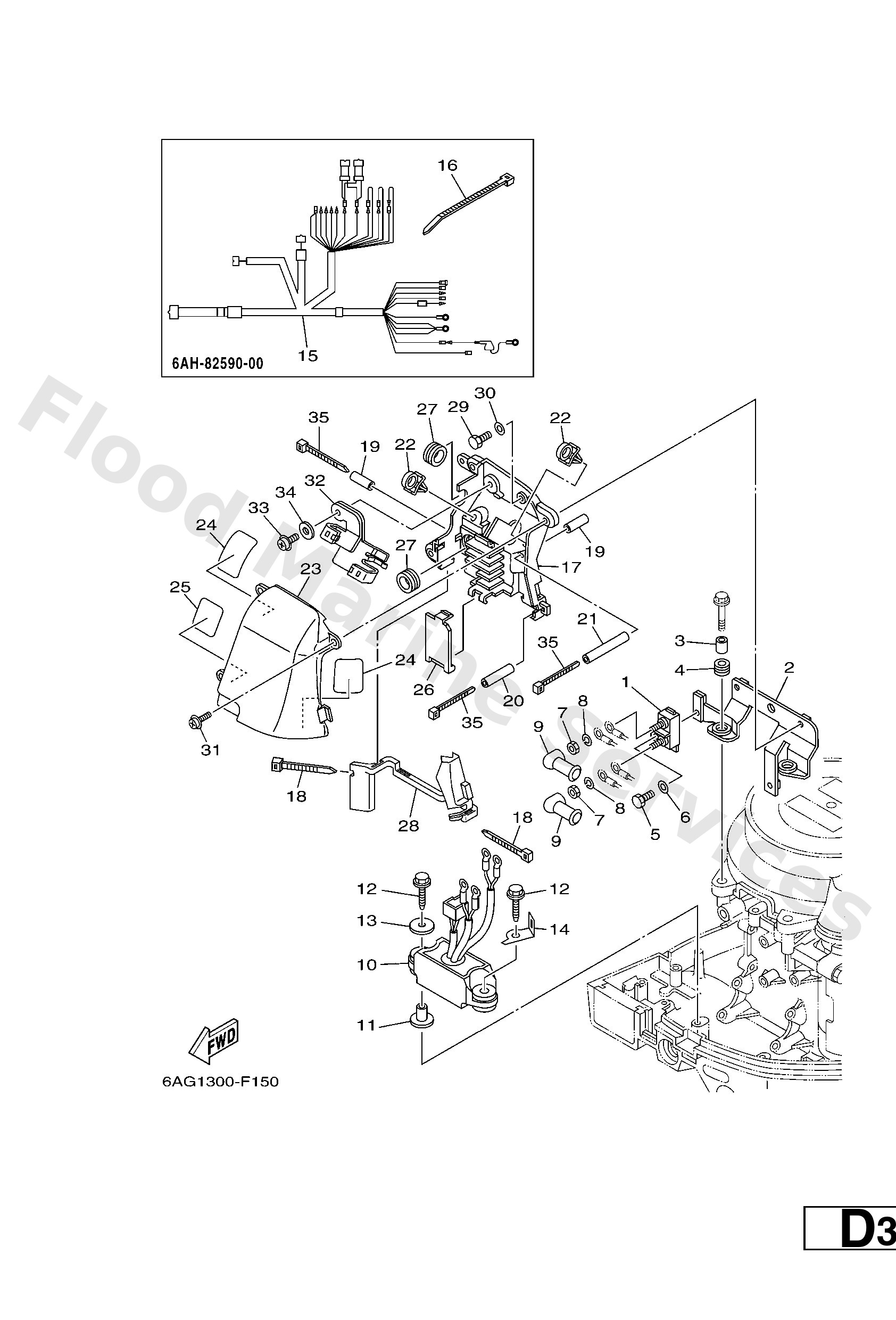

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
6H58192500
Terminal
Loading…
↗
2
6AH8192900
Bracket, terminal
Loading…
↗
3
9038706182
Collar
Loading…
↗
4
6AH8231700
Damper, ignition coil
Loading…
↗
5
9709506014
Bolt(gj3)
Loading…
↗
6
9299506600
Washer, plain (646)
Loading…
↗
7
9017006M30
Nut(62x)
Loading…
↗
8
9020406M00
Washer, spring(62x)
Loading…
↗
9
6G58211900
Cover, lead wire
Loading…
↗
10
6AH8195000
Relay assembly
Loading…
↗
11
9038706M03
Collar (676)
Loading…
↗
12
9010906MA2
Bolt
Loading…
↗
13
9020106416
Washer, plate(663)
Loading…
↗
14
6AH8238800
Plate
Loading…
↗
15
6AH8259000
Wire harness & extension wire
Loading…
↗
16
9046513M18
Clamp
Loading…
↗
17
6AH8552A10
Housing
Loading…
↗
19
9044507025
Hose
Loading…
↗
20
9044507026
Hose
Loading…
↗
21
9044507027
Hose
Loading…
↗
22
9046412001
Clamp
Loading…
↗
23
6AH8552E10
Cover, case
Loading…
↗
24
6AH4273510
Protector
Loading…
↗
25
6AH4273520
Protector
Loading…
↗
26
6AH8553710
Cover
Loading…
↗
27
9048019368
Grommet(75v)
Loading…
↗
28
6AH8554710
Damper
Loading…
↗
31
9798506214
Screw, with washer
Loading…
↗
32
6AH8552510
Plate
Loading…
↗
34
9020106068
Washer,plate (6k8)
Loading…
↗
35
9046476001
Clamp
Loading…
↗
