F100B (2023)
ELECTRICAL 5

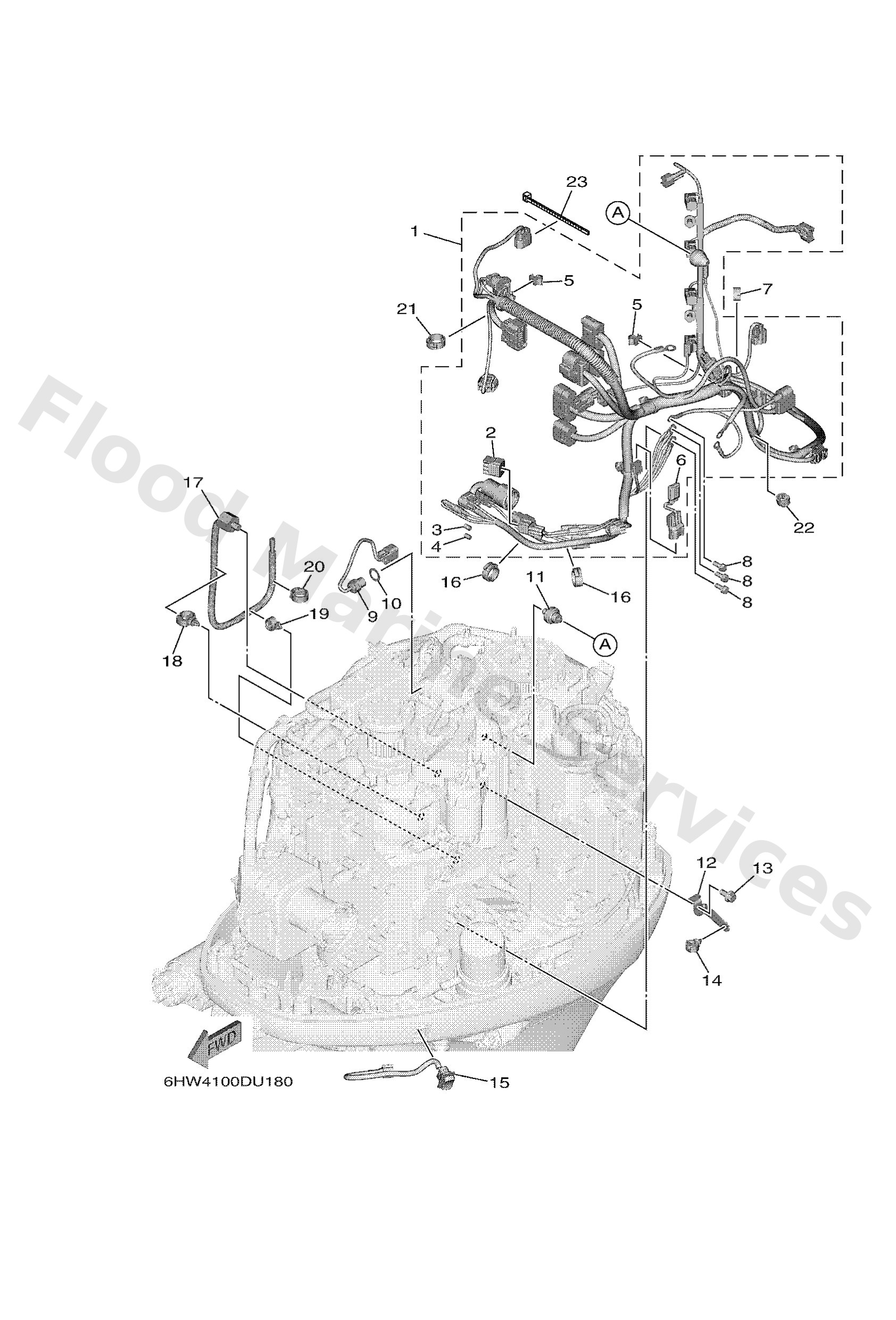

Diagram: ELECTRICAL 5
Parts List
Reference
Description
Price
1
6FP8259012
Wire harness assembly
Loading…
↗
2
6Y88258211
White cap 1 (4pin)
Loading…
↗
3
6DA8258200
Cap 1 (female)
Loading…
↗
4
6DA8258210
Cap 1 (male)
Loading…
↗
5
9046409M47
Clamp(65j)
Loading…
↗
6
6FM8198001
Diode assembly
Loading…
↗
7
9046413227
Clamp
Loading…
↗
8
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
9
6CJ8579000
Thermosensor assembly
Loading…
↗
10
9043014115
Gasket (663)
Loading…
↗
11
68V8250400
Oil pressure switch assembly
Loading…
↗
12
6JX8554800
Holder
Loading…
↗
13
95D9506016
Bolt, flange deep recess
Loading…
↗
14
9046413249
Clamp
Loading…
↗
15
6FM8256301
Trim & tilt switch assembly
Loading…
↗
16
9046416001
Clamp
Loading…
↗
17
6CJ8578001
Sensor, knock
Loading…
↗
18
9046420181
Clamp(4ap)
Loading…
↗
23
9046513M97
Clamp
Loading…
↗
