XF425NSA2 (2020)
EXHAUST 1

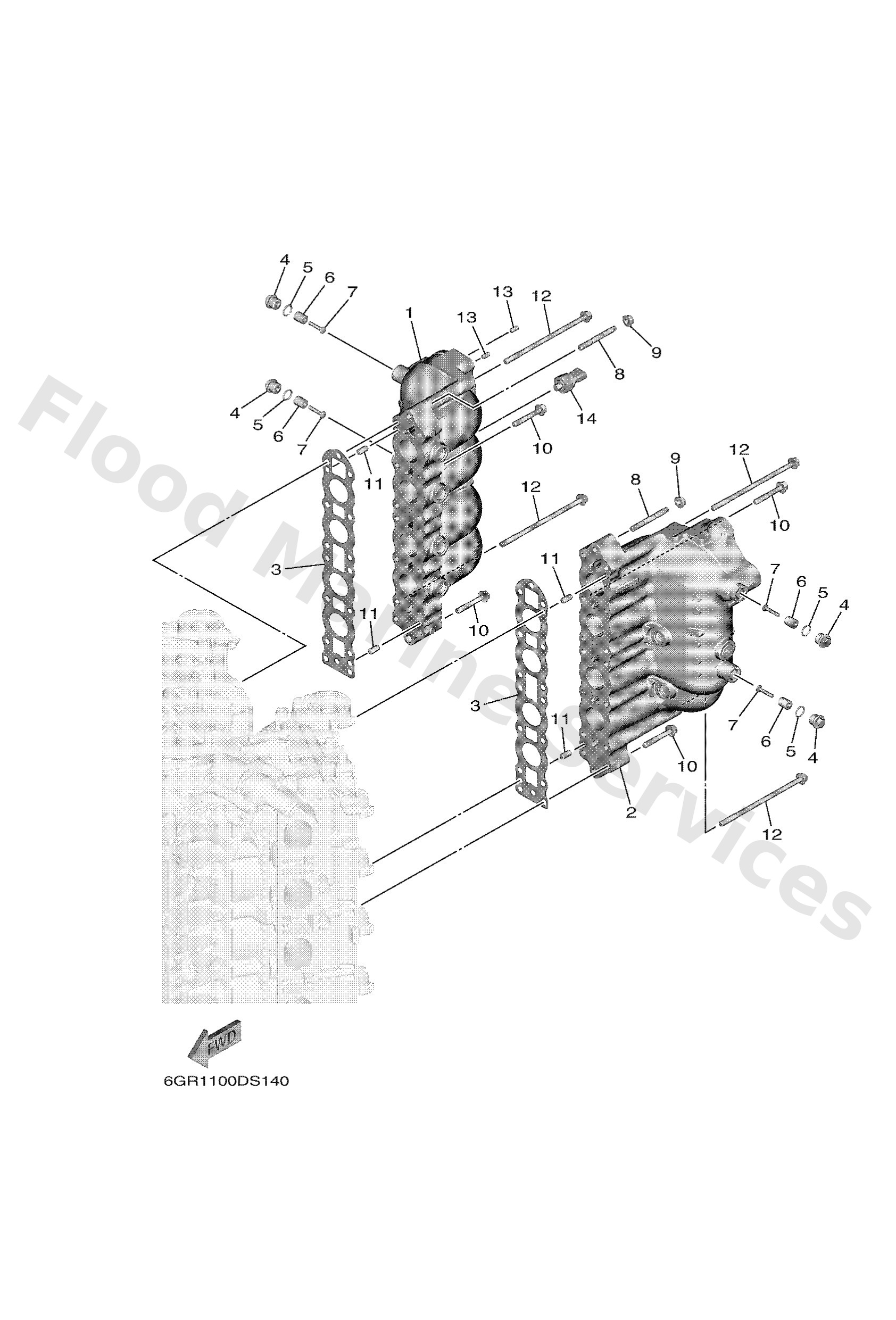

Diagram: EXHAUST 1
Parts List
Reference
Description
Price
1
6GR14615019S
Joint, exhaust 1
Loading…
↗
2
6GR14625019S
Joint, exhaust 2
Loading…
↗
3
6GR1461300
Gasket, exhaust pipe
Loading…
↗
4
6G811197A0
Plug, blind
Loading…
↗
5
9321013M63
O-ring (6g8)
Loading…
↗
6
6G81132500
Anode
Loading…
↗
7
9898005025
Screw, panhead (a93)
Loading…
↗
8
9011608037
Bolt, stud
Loading…
↗
9
9017908M34
Nut
Loading…
↗
10
9010508175
Bolt, flange
Loading…
↗
11
9360816M16
Pin, dowel(6t4)
Loading…
↗
12
9010508266
Bolt, flange
Loading…
↗
13
9360612019
Pin, dowel (614)
Loading…
↗
14
6GR8366B00
Sensor, water pressure
Loading…
↗
