F115AET (2000)
Electrical 1

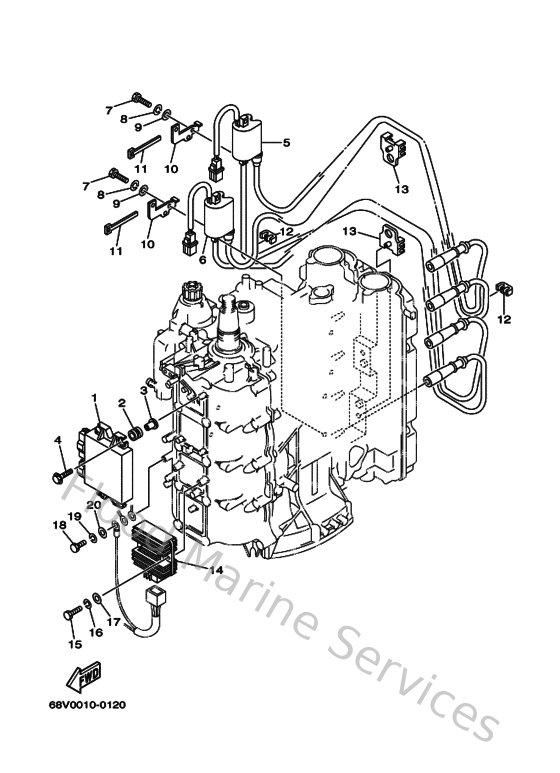

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
68V8591A0000
Engine control unit assembly
Loading…
↗
2
68V823170000
Damper, ignition coil
Loading…
↗
3
624425420000
Collar
Loading…
↗
4
9011906M5900
Bolt, with washer
Loading…
↗
5
68V823100100
Ignition coil assembly
Loading…
↗
6
68V823101000
Ignition coil assembly
Loading…
↗
7
970950602500
Bolt
Loading…
↗
8
929950610000
Washer(6a1)
Loading…
↗
9
929950660000
Washer, plain (646)
Loading…
↗
10
68V823880000
Plate
Loading…
↗
11
904640600100
Clamp
Loading…
↗
12
67F823610000
Clamp, cord
Loading…
↗
13
67F823620000
Clamp, cord 2
Loading…
↗
14
68V819600000
Rectifier & regulator assembly
Loading…
↗
18
970950602000
Bolt(7u8)
Loading…
↗
