225GETOL (1999)
Electrical 2

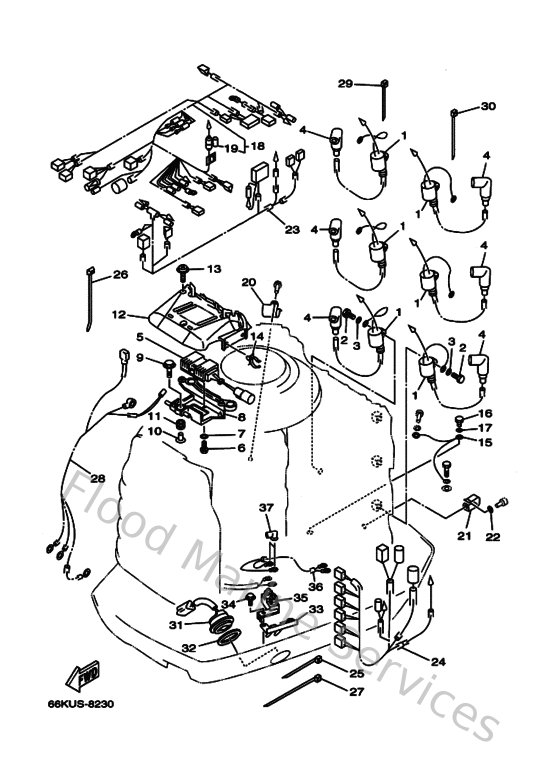

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
61A855700000
Ignition coil assembly
Loading…
↗
2
970130602000
Bolt(62y)
Loading…
↗
3
929030660000
Washer, plain (646)
Loading…
↗
4
6E3823702000
Plug cap assembly
Loading…
↗
5
65L853700000
Resistor assembly
Loading…
↗
6
978850501000
Screw, pan head(62x)
Loading…
↗
7
929950560000
Washer, plain (646)
Loading…
↗
8
65L819150000
Plate, Regulator Fitting
Loading…
↗
9
9011906M6500
Bolt, with washer
Loading…
↗
10
9038706M6000
Collar (6h3)
Loading…
↗
11
9048010M2300
Grommet(6k7)
Loading…
↗
12
65L819160000
Cover, Terminal
Loading…
↗
13
9015906M0300
Screw (6g5)
Loading…
↗
14
9046419M4500
Clamp(65j)
Loading…
↗
15
61A825310000
Wire, lead
Loading…
↗
16
970130601200
Bolt(gh1)
Loading…
↗
17
929950610000
Washer(6a1)
Loading…
↗
18
66K825900000
Wire Harness assembly
Loading…
↗
19
705821510000
Fuse (30a)
Loading…
↗
20
9046510M1400
Clamp
Loading…
↗
21
9046508M3300
Clamp(6t4)
Loading…
↗
22
929900660000
Washer, plain (646)
Loading…
↗
23
65L8259M0000
Wire Harness assembly 2
Loading…
↗
24
65L8259N0000
Wire Harness assembly 3
Loading…
↗
25
9046511M1000
Clamp
Loading…
↗
26
9046511M5200
Clamp(6e7)
Loading…
↗
27
9046513M1800
Clamp
Loading…
↗
28
61A821050000
Battery cable
Loading…
↗
29
904651009800
Clamp
Loading…
↗
31
61A825630000
Trim & tilt switch assembly
Loading…
↗
32
6E5825870000
Gasket
Loading…
↗
33
61A836140000
Bracket
Loading…
↗
34
970950601200
Bolt(gh1)
Loading…
↗
35
6H5819200000
Terminal assembly
Loading…
↗
36
66K825530000
Extension, Wire Lead
Loading…
↗
37
6G5821191000
Cover, lead wire
Loading…
↗
