Yamaha Outboard Parts - FITTING KIT-F40 - Tiller Handle (2008) | Flood Marine

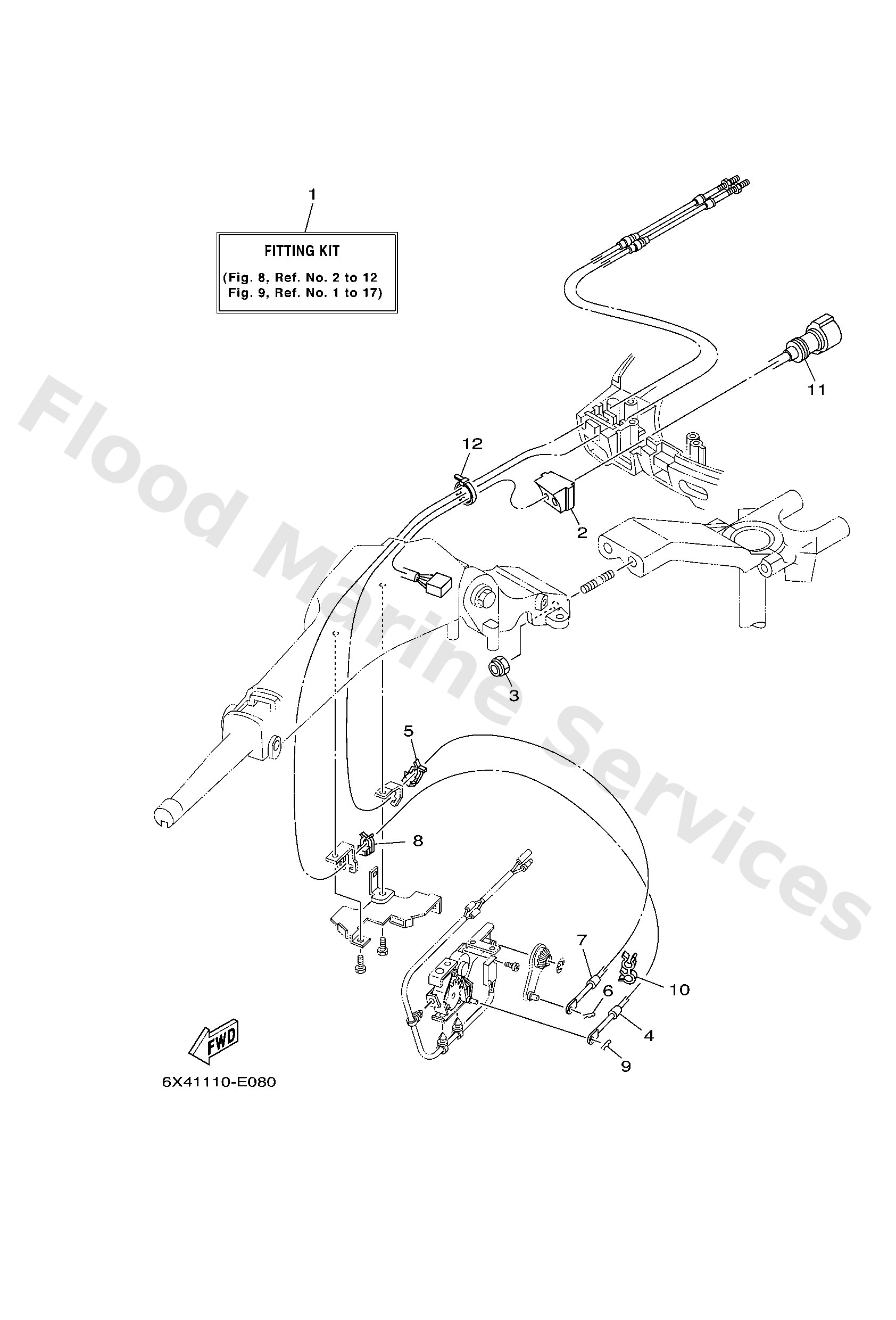

Diagram: FITTING KIT-F40

Diagram

Parts List

Reference
Description
Price


1
6X44210231 LM
-
Loading…

↗
2
62Y4272530
Grommet
Loading…

↗
3
9018510051
Nut, self-locking
Loading…

↗
4
67C4832111
Cable
Loading…

↗
5
63D4853800
Clamp, cable 1
Loading…

↗
6
9046810005
Pin, hair 6264123500
Loading…

↗
7
69W2630100
Throttle cable assembly
Loading…

↗
10
9046409M42
Clamp(6b0)
Loading…

↗
11
6X48258600
Ext., wire harness (l: 700mm)
Loading…

↗
12
9046513M36
Clamp(6h4)
Loading…

↗
