L150FETO (2003)
FUEL 2

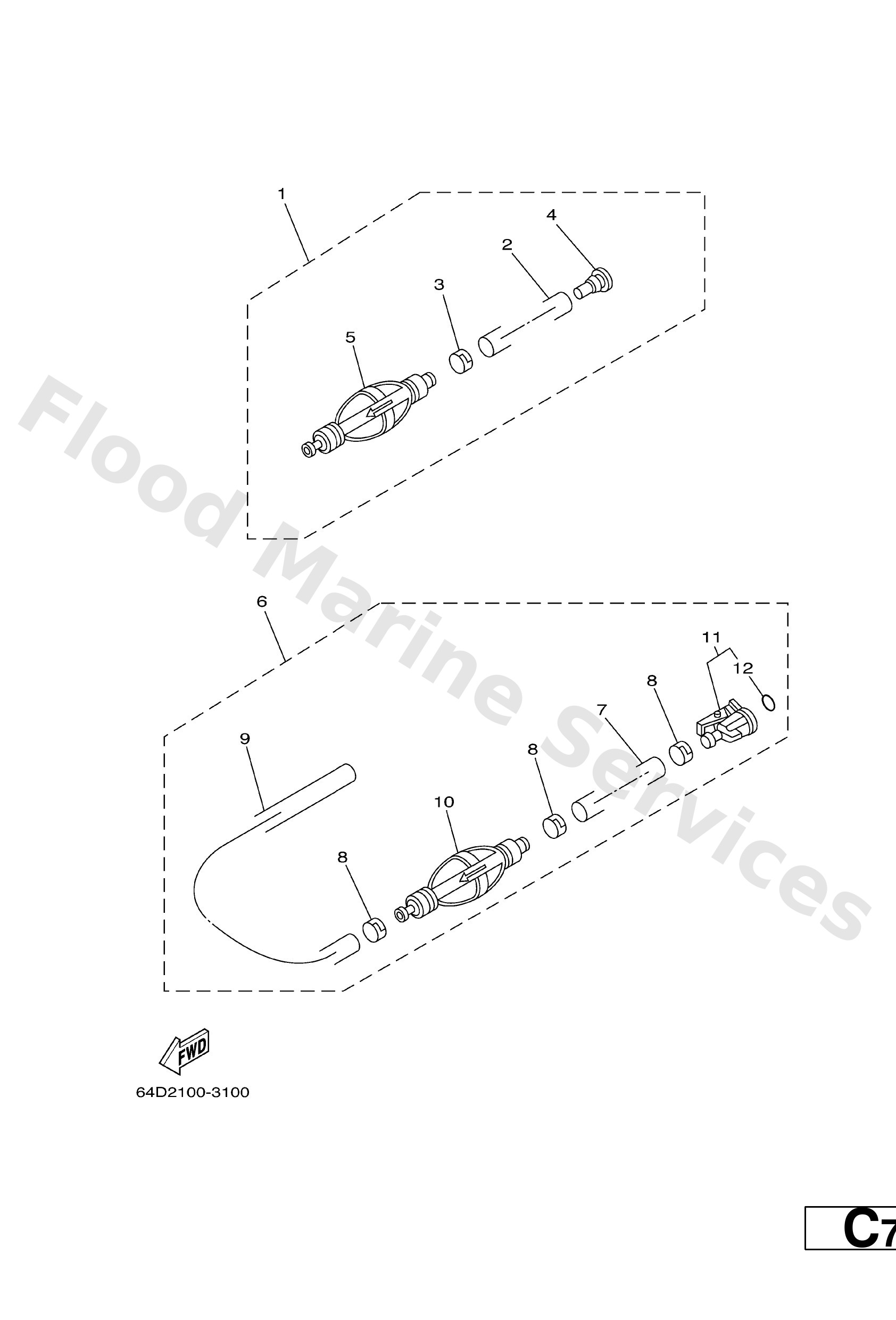

Diagram: FUEL 2
Parts List
Reference
Description
Price
1
6Y2−24307−41
AP FOR OCEANIA
Fuel pipe comp. 2
Loading…
↗
2
90445−13M01
Hose (l2050)
Loading…
↗
3
6E5−24351−51
Band 1
Loading…
↗
4
90480−06M19
Grommet (6e3)
Loading…
↗
5
6Y2−24360−52
Primer pump assembly
Loading…
↗
6
6Y2−24306−42
AP FOR CARIB
Fuel pipe comp. 1
Loading…
↗
9
90445−13M35
Hose (L250)
Loading…
↗
11
6Y2−24305−04
Fuel pipe joint comp. 2
Loading…
↗
12
93210−08287
O-ring (655)
Loading…
↗
