F20GMH (2021)
FUEL INJECTION PUMP

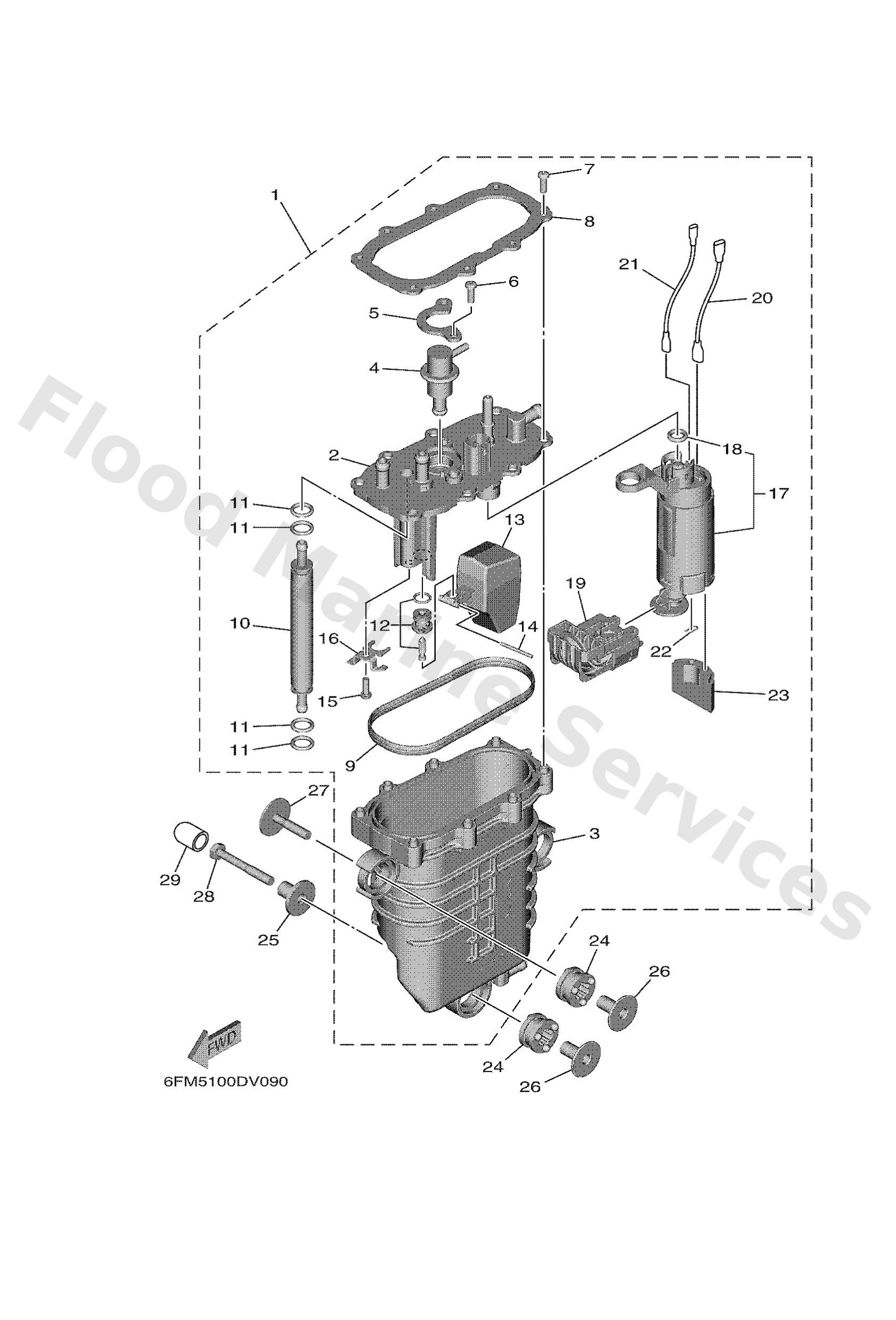

Diagram: FUEL INJECTION PUMP
Parts List
Reference
Description
Price
1
6FM1418001
Float chamber assembly
Loading…
↗
2
6FM1418200
Cover, float chamber
Loading…
↗
3
6FM1418100
Body, float chamber 1
Loading…
↗
4
6FM1390600
Regulator, pressure
Loading…
↗
5
6FM1414600
Plate
Loading…
↗
6
6FM1456500
Screw
Loading…
↗
7
6FM1456700
Screw
Loading…
↗
8
6FM1424300
Plate
Loading…
↗
9
6FM1498400
Gasket, float chamber
Loading…
↗
10
6FM2184100
Cooler
Loading…
↗
11
6FM1456200
O-ring
Loading…
↗
12
6FM1454600
Valve, needle
Loading…
↗
13
68V1498500
Float
Loading…
↗
14
6FM1438600
Pin, float
Loading…
↗
16
6FM1467400
Valve, plate
Loading…
↗
17
6FM1391000
Fuel pump assembly
Loading…
↗
18
6FM1456100
O-ring
Loading…
↗
19
6FM1391500
Filter
Loading…
↗
20
6FM1469M00
Wire 1
Loading…
↗
21
6FM1469N00
Wire 2
Loading…
↗
22
6FM1413700
Clip
Loading…
↗
23
6FM1378100
Damper, pump
Loading…
↗
24
6FM1359300
Damper
Loading…
↗
25
9038706M69
Collar (688)
Loading…
↗
26
9038706176
Collar
Loading…
↗
27
9011906291
Bolt, with washer
Loading…
↗
28
9010106032
Bolt
Loading…
↗
29
67F1344800
Cap
Loading…
↗
