Z150QETO (2006)
FUEL PUMP DRIVE GEAR

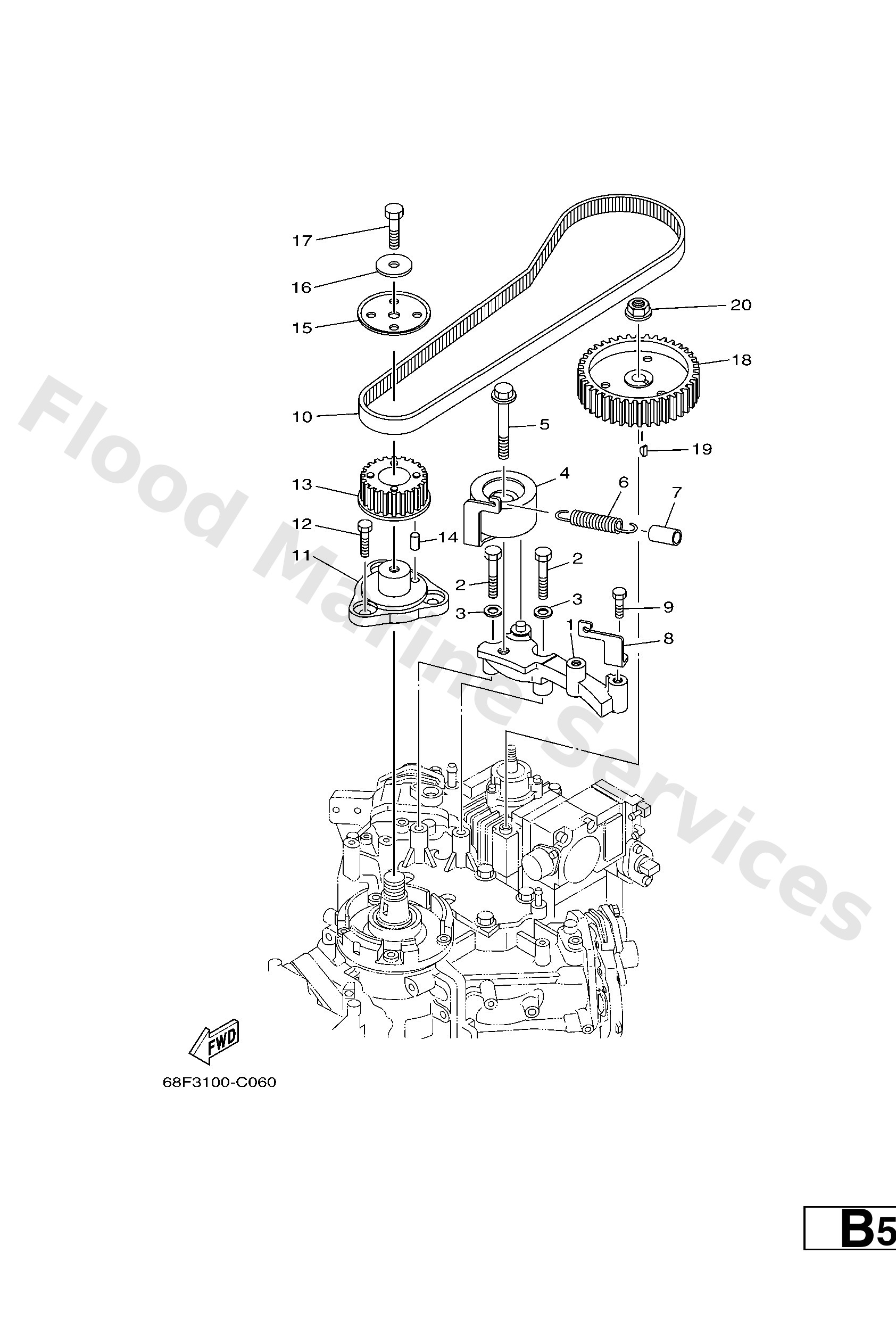

Diagram: FUEL PUMP DRIVE GEAR
Parts List
Reference
Description
Price
1
68F115980094
Bracket, tensioner
Loading…
↗
2
9701308045
Bolt
Loading…
↗
3
9290308600
Washer, plain (663)
Loading…
↗
4
68F1159000
Tensioner assembly
Loading…
↗
5
9011910M72
Bolt, with washer(6m6)
Loading…
↗
6
9050616M39
Spring, tension
Loading…
↗
7
9044515M03
Hose (l23)
Loading…
↗
8
68F1159510
Plate,valve
Loading…
↗
9
9701308012
Bolt(62e)
Loading…
↗
10
68F4624110
Belt
Loading…
↗
11
68F115790194
Coupling, flywheel
Loading…
↗
13
68F115360094
Gear, drive
Loading…
↗
14
9360510108
Pin, dowel (8g8)
Loading…
↗
15
60V1155700
Washer 1
Loading…
↗
16
9020108M00
Washer, plate(6e0)
Loading…
↗
17
9709508025
Bolt (62g)
Loading…
↗
18
68F115370094
Gear, driven
Loading…
↗
19
9028003M01
Key woodruff 146115450000
Loading…
↗
20
9570708600
Nut, flange(jn5)
Loading…
↗
