E8DMH (1999)
Fuel

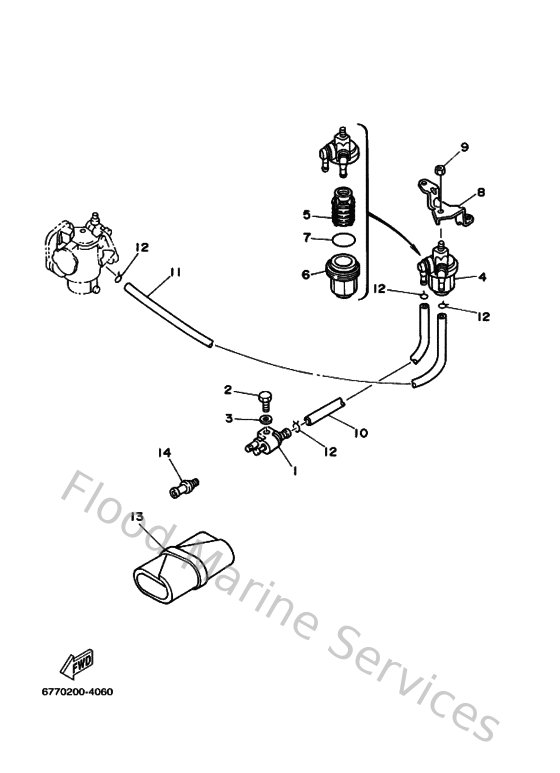

Diagram: Fuel
Parts List
Reference
Description
Price
1
6G1243040200
Fuel pipe joint comp. 1
Loading…
↗
2
970950602000
Bolt(7u8)
Loading…
↗
3
929900660000
Washer, plain (646)
Loading…
↗
4
61N245601000
Filter assembly
Loading…
↗
5
61N245630000
Element, filter
Loading…
↗
6
61N245210000
Cup, filter
Loading…
↗
7
932103273800
O-ring(1wg)
Loading…
↗
8
6K3245660000
Bracket, Filter
Loading…
↗
9
988800810000
Nut, hex.
Loading…
↗
10
904450908300
Hose (l420)
Loading…
↗
11
904450916300
Hose (L260)
Loading…
↗
12
904670800400
Clip, pipe 6162435600
Loading…
↗
13
656W28100200
Tool kit
Loading…
↗
14
626281930194
Plug, water check
Loading…
↗
