F9.9BMH (1991)
Fuel Tank

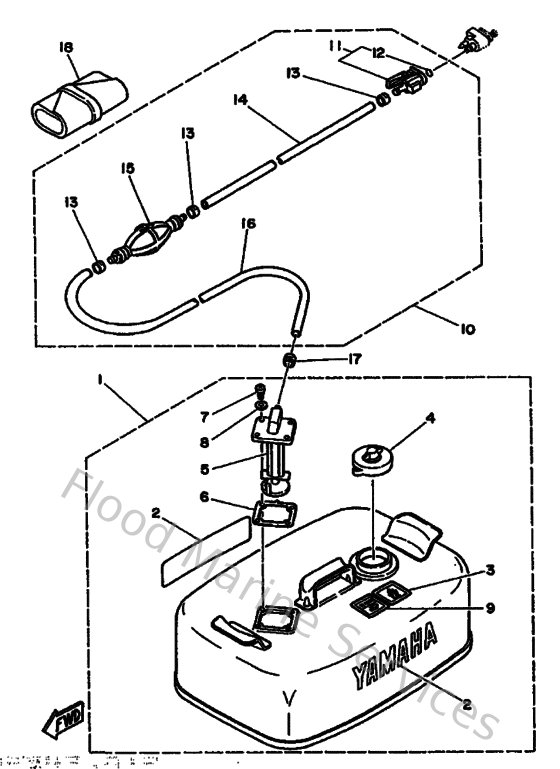

Diagram: Fuel Tank
Parts List
Reference
Description
Price
4
6Y1246101200
Cap assembly
Loading…
↗
6
6Y1242680000
Gasket, fuel meter
Loading…
↗
7
985860501600
Screw, pan head
Loading…
↗
8
6Y1243290000
Seal
Loading…
↗
10
6Y4243068100
Fuel pipe comp. 1
Loading…
↗
11
6G1243050000
Fuel pipe joint comp. 2
Loading…
↗
12
932100828700
O-ring (655)
Loading…
↗
13
650243515100
Band 1
Loading…
↗
14
9044511M0500
Hose (l1000)
Loading…
↗
15
6Y1243600200
Primer pump assembly
Loading…
↗
16
9044511M8100
Hose (l3000)
Loading…
↗
17
650243510100
Band 1
Loading…
↗
18
676W28100000
Tool kit
Loading…
↗
