225DETO (2002)
GENERATOR

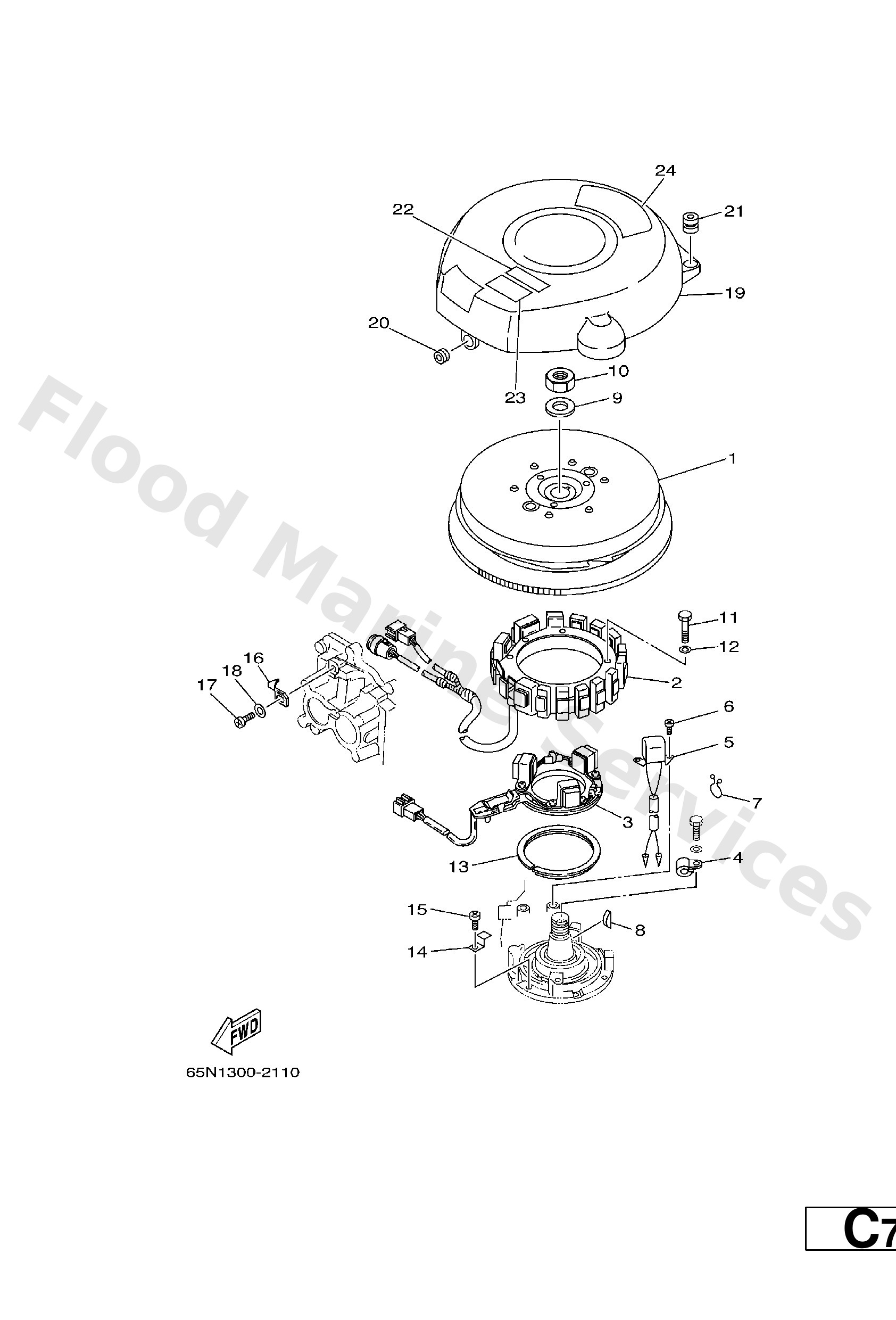

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
64D--85550--02
11 −
Loading…
↗
2
6R3--85510--00
Stator assembly
Loading…
↗
3
64D--85580--00
Coil, pulser
Loading…
↗
4
90465--06M86
Clamp
Loading…
↗
5
6R5--85895--01
Crank position sender
Loading…
↗
6
97885--05012
Screw,pan head (646)
Loading…
↗
7
90464--15M11
Clamp (3y2)
Loading…
↗
8
90280--05015
Key, woodruff
Loading…
↗
9
90201--21M18
Washer, plate (663)
Loading…
↗
10
90170--20137
Nut, hexagon(663)
Loading…
↗
11
97013--06070
Bolt(62j)
Loading…
↗
12
92903--06600
Washer, plain (646)
Loading…
↗
13
688--41611--00
Retainer, magneto base 1
Loading…
↗
14
688--41612--00
Retainer, magneto base 2
Loading…
↗
15
97880--06018
Screw, pan head(6e5)
Loading…
↗
16
6E5--81332--00
Plate, timing
Loading…
↗
17
97885--06010
Screw pan head
Loading…
↗
18
92995--06600
Washer, plain (646)
Loading…
↗
19
64D--81337--01
Cover, Flywheel
Loading…
↗
20
90480--13M24
Grommet (6e9)
Loading…
↗
21
663--82317--01
Damper, ignition coil
Loading…
↗
22
6A1--83625--51
Mark 5
Loading…
↗
23
6A1--83625--41
Mark 5
Loading…
↗
24
64E--14488--00
Label, caution
