F150FET (2015)
GENERATOR

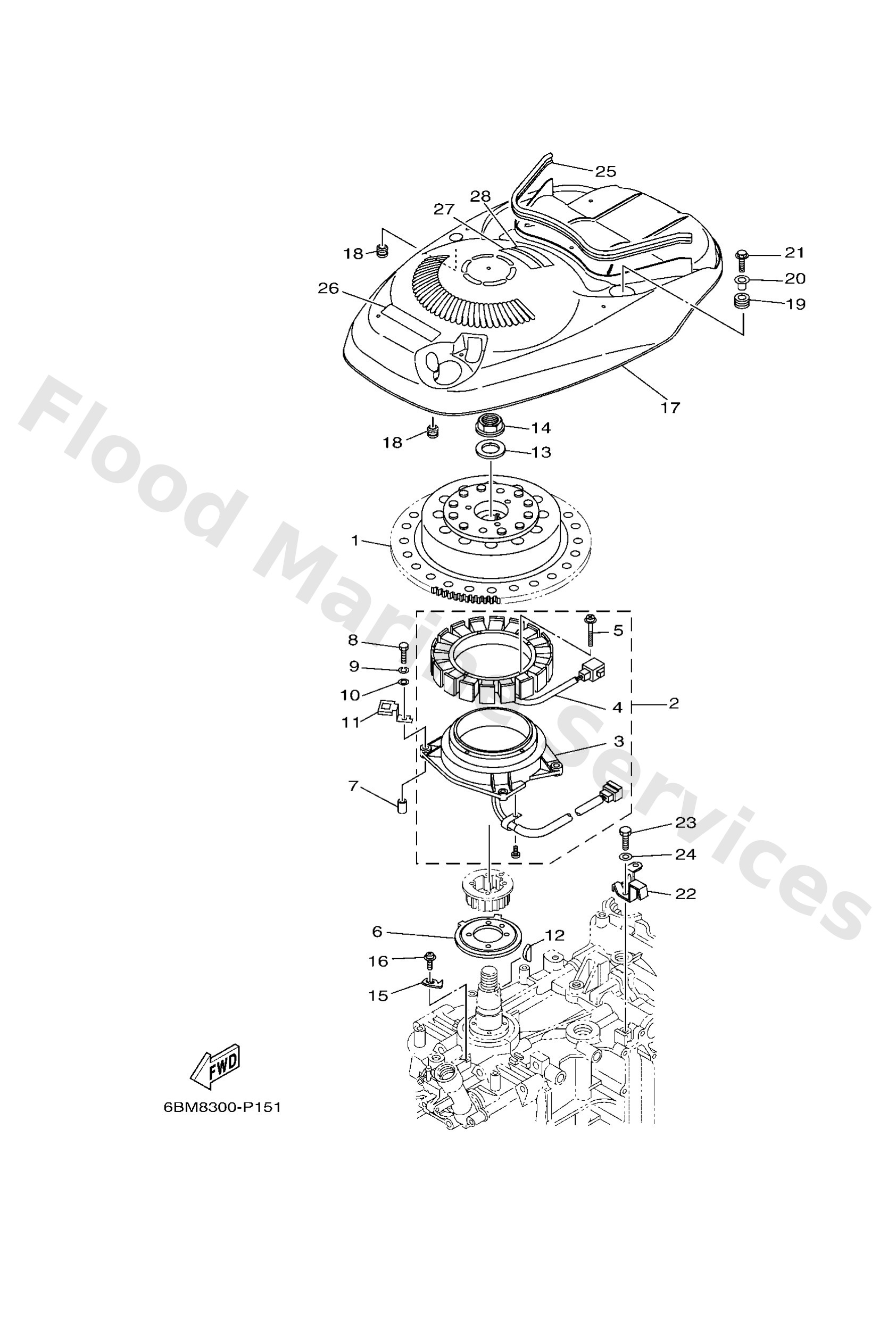

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6BM8145000
Rotor assembly
Loading…
↗
2
63P8146000
Base assembly
Loading…
↗
3
63P8558000
Coil, pulser
Loading…
↗
4
63P8141000
Stator assembly
Loading…
↗
5
63D8134520
Screw, pan
Loading…
↗
6
63P8167301
Rotor
Loading…
↗
7
9953008012
Pin, dowel(6g8)
Loading…
↗
8
9709506035
Bolt(j52)
Loading…
↗
9
9299506100
Washer(6a1)
Loading…
↗
10
9299506600
Washer, plain (646)
Loading…
↗
11
63P8184500
Plate
Loading…
↗
12
9028005015
Key, woodruff
Loading…
↗
13
9020124014
Washer, plate
Loading…
↗
14
9017924002
Nut
Loading…
↗
15
6P28133200
Plate, timing
Loading…
↗
16
9798506210
Screw pan head
Loading…
↗
17
63P8133710
Cover, flywheel
Loading…
↗
18
6A08231700
Damper, ignition coil
Loading…
↗
19
9048015M31
Grommet (6g1)
Loading…
↗
20
9038706285
Collar
Loading…
↗
21
9589506020
Bolt, flange(jk3)
Loading…
↗
22
63P8132G10
Plate
Loading…
↗
23
9709506016
Bolt, hexagon deep recess
Loading…
↗
25
6DA4261700
Damper, form
Loading…
↗
26
63P1343762
Mark, caution
Loading…
↗
27
6EE8199440
Label, safety
Loading…
↗
28
6EE8199450
Label, safety
