F350SA2 (2024)
GENERATOR

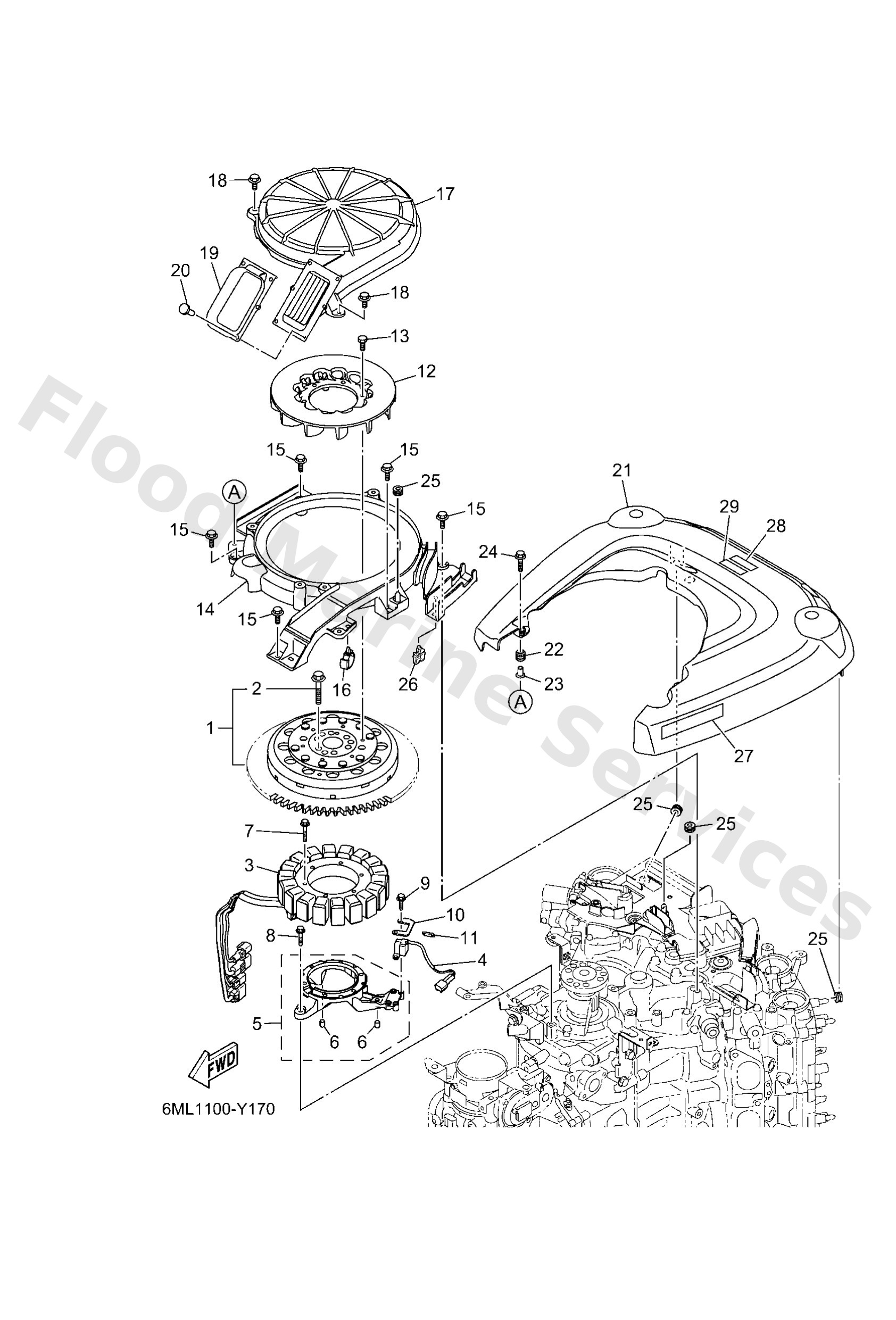

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6MLW814500
Rotor assembly with bolts
Loading…
↗
2
6EKW901000
Bolt set
Loading…
↗
3
6ML8141000
Stator assembly
Loading…
↗
4
6CB8558000
Coil, pulser
Loading…
↗
5
6CB8556100
Base, magneto
Loading…
↗
6
9953008012
Pin, dowel(6g8)
Loading…
↗
7
9502206035
Bolt, flange
Loading…
↗
8
95D9506030
Bolt, flange deep recess
Loading…
↗
9
9011905M03
Bolt, With Washer
Loading…
↗
10
6ML8559200
Stay, pulser
Loading…
↗
11
9046511M10
Clamp
Loading…
↗
12
6ML8558600
Fan
Loading…
↗
13
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
14
6ML1265100
Air shroud, cylinder 1
Loading…
↗
15
95D9506016
Bolt, flange deep recess
Loading…
↗
16
9046412183
Clamp(jn2)
Loading…
↗
17
6ML1265300
Air shroud, cylinder 3
Loading…
↗
18
95D9506012
Bolt, flange deep recess
Loading…
↗
19
6ML1265900
Damper, air shroud 2
Loading…
↗
20
9026905001
Rivet
Loading…
↗
21
6ML8194200
Cover
Loading…
↗
22
6A08231701
Damper, ignition coil
Loading…
↗
23
9038706119
Collar
Loading…
↗
24
95D9506025
Bolt, flange deep recess
Loading…
↗
25
9048012314
Grommet(3aa)
Loading…
↗
26
9046411121
Clamp(4gy)
Loading…
↗
27
6ML1343760
Mark, caution
Loading…
↗
28
6EE8199440
Label, safety
Loading…
↗
29
6EE8199450
Label, safety
Loading…
↗
