FT8DE (2003)
GENERATOR

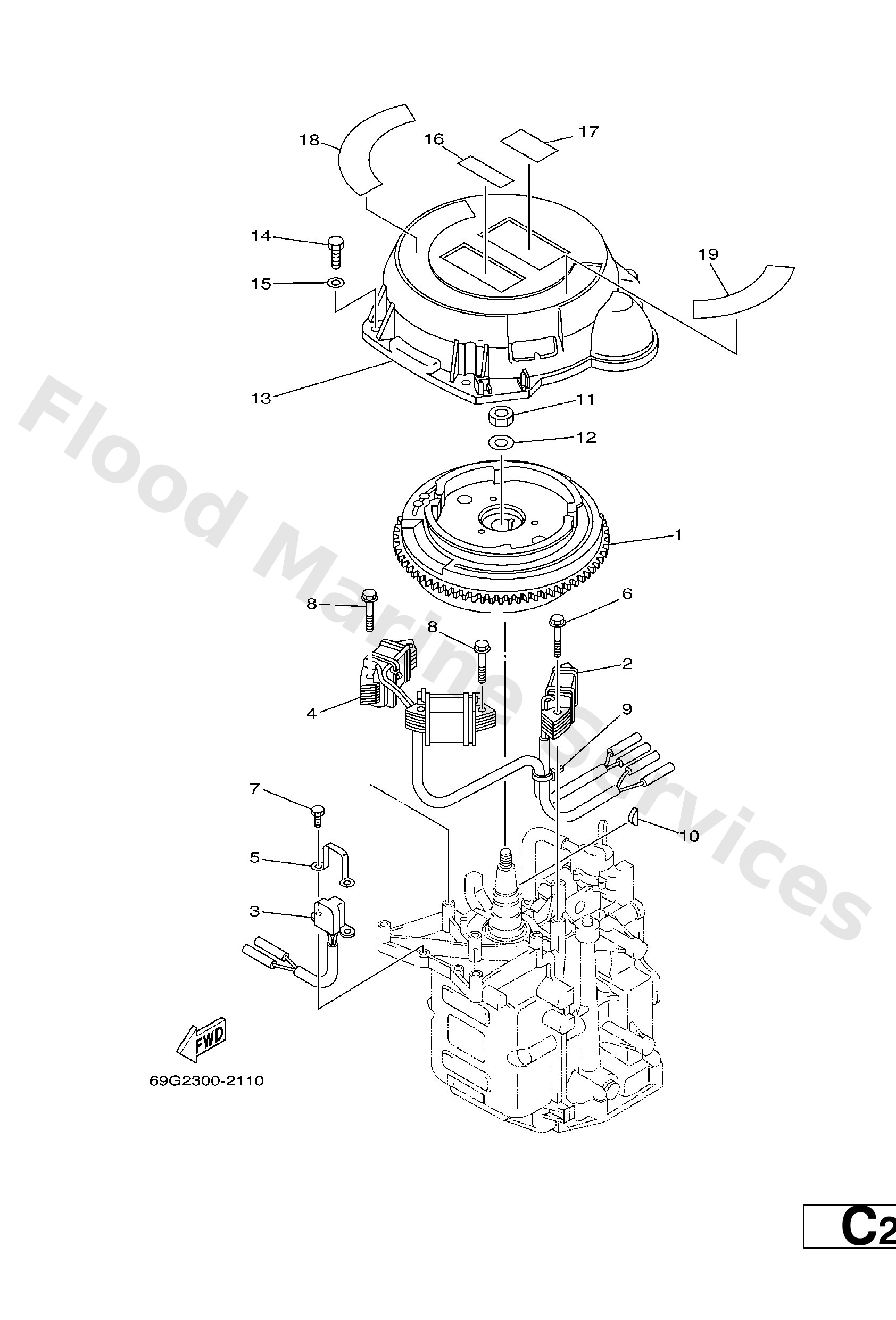

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
68T−85550−11
Rotor assembly
Loading…
↗
2
68T−85520−00
Coil, charge
Loading…
↗
3
68T−85580−01
Coil, pulser
Loading…
↗
4
68T−85533−10
Coil, lighting
Loading…
↗
5
6H2−85582−00
Attachment, pulser
Loading…
↗
6
90119−06014
Bolt, with washer(61b)
Loading…
↗
7
97095−05010
Bolt (682)
Loading…
↗
8
90119−06MA1
Bolt, with washer(63m)
Loading…
↗
9
90465−11M10
Clamp
Loading…
↗
10
90280−04M06
Key, woodruff(6a1)
Loading…
↗
11
90170−12066
Nut, hexagon 6481155500
Loading…
↗
12
90201−12472
Washer, plate (4n0)
Loading…
↗
13
69G−81337−00
Cover, Flywheel
Loading…
↗
14
97095−06020
Bolt(7u8)
Loading…
↗
15
92995−06600
Washer, plain (646)
Loading…
↗
16
6A1−83625−41
Mark 5
Loading…
↗
17
6A1−83625−51
15 −
Loading…
↗
18
68T−13437−61
Mark, Caution
Loading…
↗
19
68T−85711−60
Mark, caution
Loading…
↗
