E55CMH (2005)
GENERATOR 1

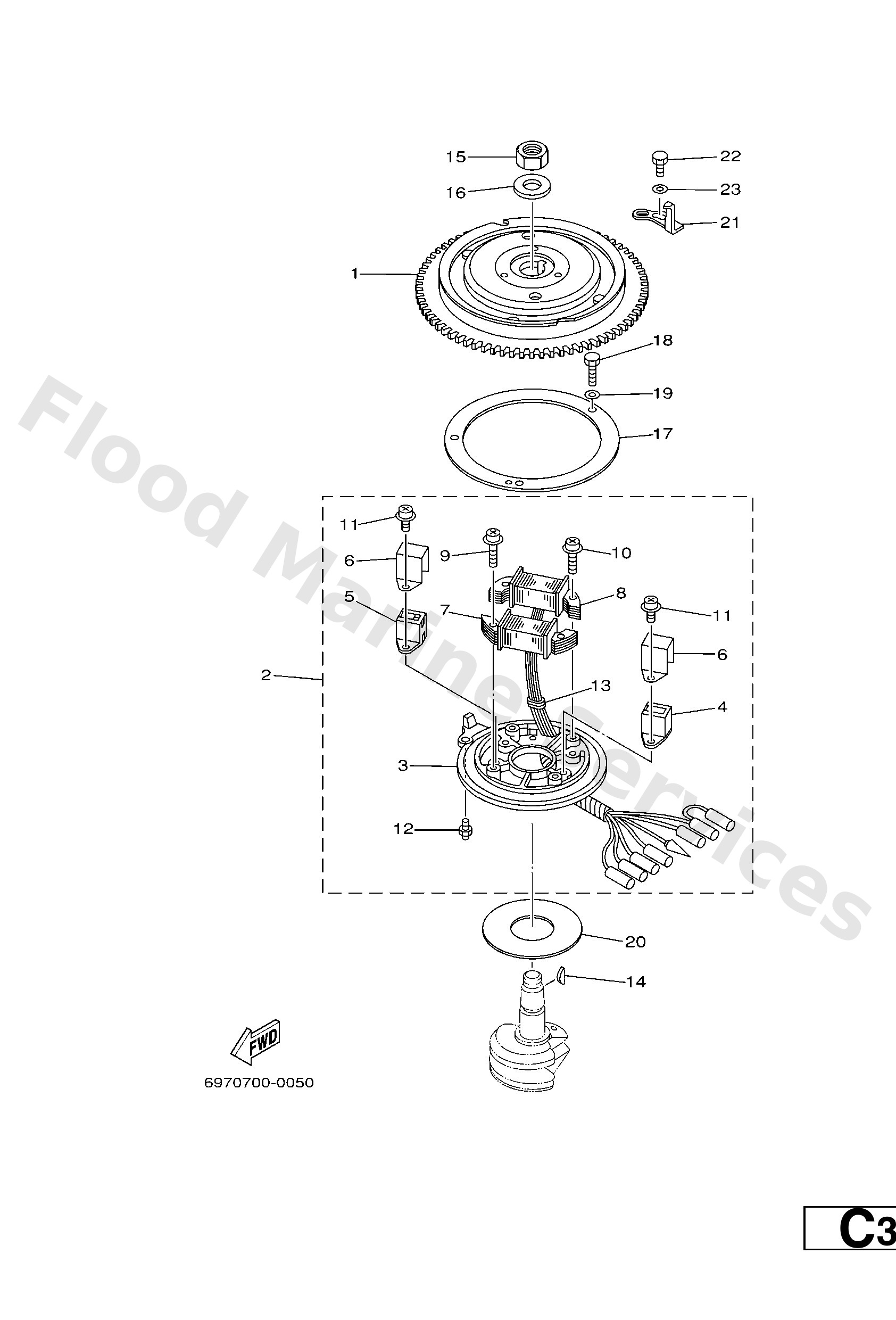

Diagram: GENERATOR 1
Parts List
Reference
Description
Price
1
6978555000
Rotor assembly
Loading…
↗
2
6978556001
Base assembly
Loading…
↗
3
6978556100
Base, magneto
Loading…
↗
4
6978558000
Coil, pulser
Loading…
↗
5
6978558010
Coil, pulser
Loading…
↗
6
6F085599A0
Cover
Loading…
↗
7
6978552002
Coil, charge
Loading…
↗
8
6978553300
Coil, lighting
Loading…
↗
9
9760205130
Screw, Pan Head With Washer
Loading…
↗
10
9760205132
Screw, pan head with washer
Loading…
↗
11
9760205114
Screw, pan head with washer
Loading…
↗
12
6638551800
Joint, ball
Loading…
↗
13
9048006158
Grommet (663)
Loading…
↗
14
9028005015
Key, woodruff
Loading…
↗
15
9017020137
Nut, hexagon(663)
Loading…
↗
16
9020121M18
Washer, plate (663)
Loading…
↗
17
6634161200
Retainer, magneto base 2
Loading…
↗
18
9701306020
Bolt(62y)
Loading…
↗
19
9290306600
Washer, plain (646)
Loading…
↗
20
6634161900
Washer, magneto 2
Loading…
↗
21
6978133200
Plate, timing
Loading…
↗
22
9709506016
Bolt, hexagon deep recess
Loading…
↗
23
9299506600
Washer, plain (646)
Loading…
↗
