Yamaha Outboard Parts - Generator - FT25BE (2001) | Flood Marine

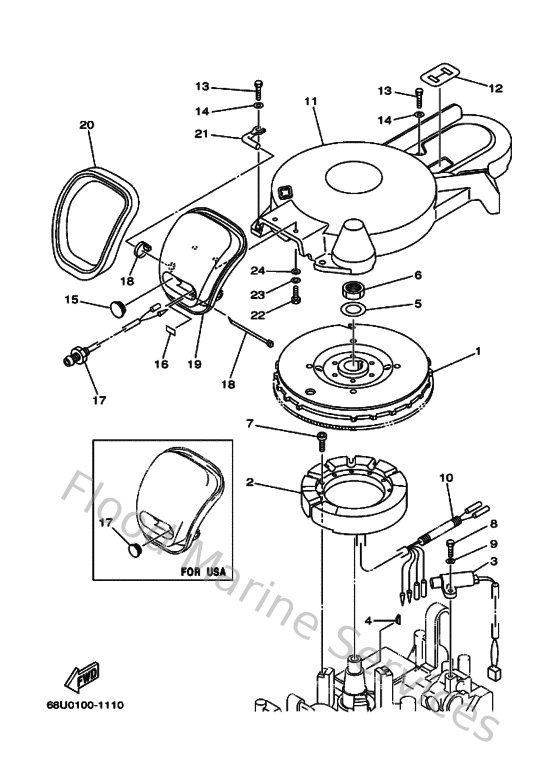

Diagram: Generator

Diagram

Parts List

Reference
Description
Price


1
65W855500100
Rotor assembly
Loading…

↗
2
65W855101000
Stator assembly
Loading…

↗
3
65W855800000
Coil, pulser
Loading…

↗
4
65W115450000
Key, woodruff
Loading…

↗
5
9020121M1800
Washer, plate (663)
Loading…

↗
6
901702013700
Nut, hexagon(663)
Loading…

↗
7
913800503000
Bolt,socket
Loading…

↗
8
970950501600
Bolt(6a1)
Loading…

↗
9
929900560000
Washer, plain (646)
Loading…

↗
10
9044610M8200
Hose
Loading…

↗
11
65W813370000
Cover Flywheel
Loading…

↗
12
65W816390000
Cover
Loading…

↗
13
970950602500
Bolt
Loading…

↗
14
929900660000
Washer, plain (646)
Loading…

↗
15
6G1427250000
Grommet
Loading…

↗
16
65W843420000
Seat, emblem
Loading…

↗
17
65W854100100
Emergency signal light assembly
Loading…

↗
18
9046511M1000
Clamp
Loading…

↗
19
65W157581000
Guide Rope
Loading…

↗
20
65W157620000
Seal, rubber 2
Loading…

↗
21
65W157710000
Stay 1
Loading…

↗
22
970950602000
Bolt(7u8)
Loading…

↗
23
929950610000
Washer(6a1)
Loading…

↗
24
929950660000
Washer, plain (646)
Loading…

↗
