15FMH (2003)
INTAKE

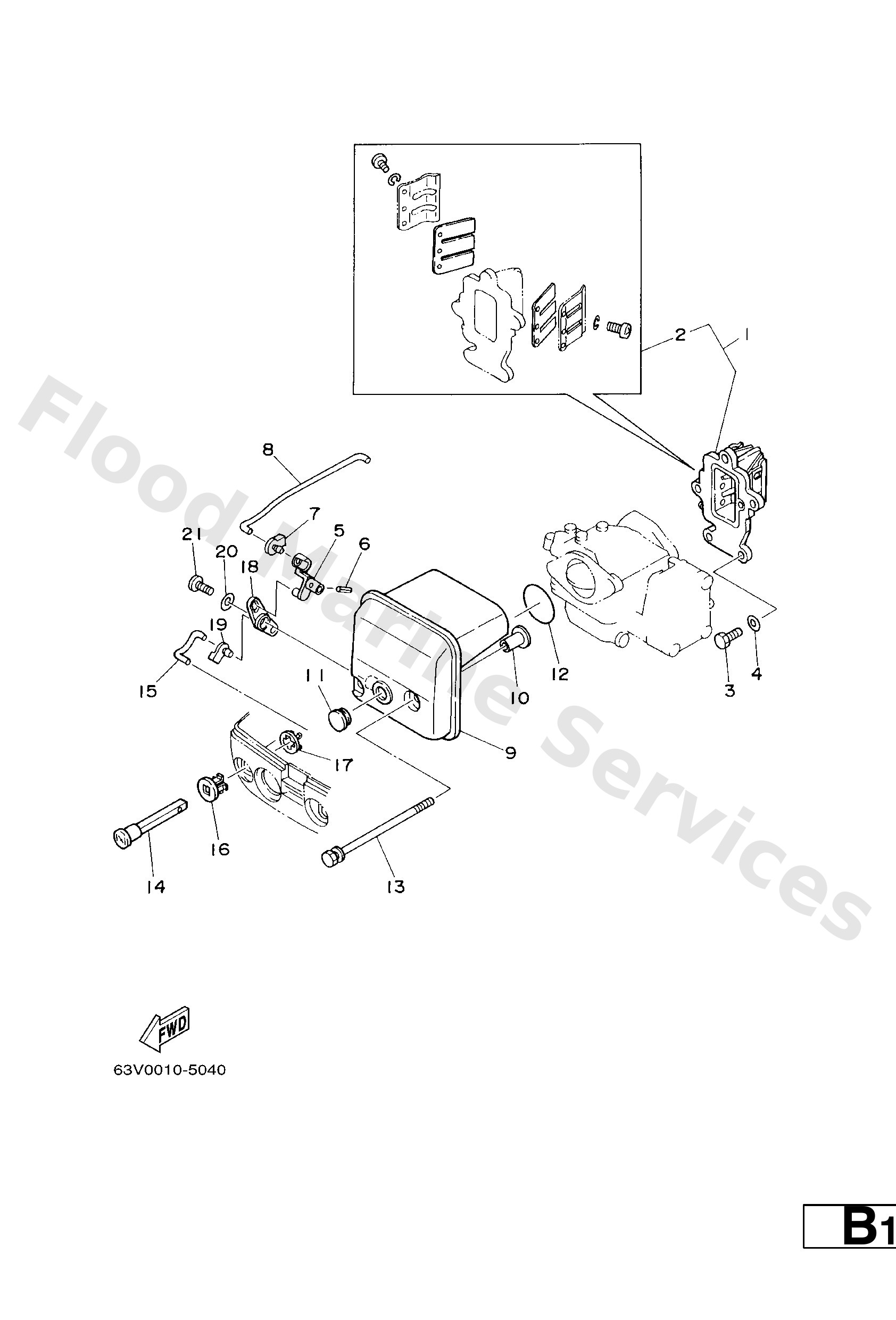

Diagram: INTAKE
Parts List
Reference
Description
Price
1
63W−13610−00
Reed valve assembly
Loading…
↗
1
63V−13610−10
Reed valve assembly
Loading…
↗
2
682−W0004−00
Reed set
Loading…
↗
3
97095−06020
Bolt(7u8)
Loading…
↗
4
92995−06600
Washer, plain (646)
Loading…
↗
5
63V−41253−00
Lever, choke
Loading…
↗
6
91690−20010
Pin, spring
Loading…
↗
7
63V−41262−00
Joint, choke lever
Loading…
↗
8
63V−41257−00
Rod, choke 2
Loading…
↗
9
63V−14440−00
Silencer assembly, intake
Loading…
↗
10
90387−06M15
Collar(6g8)
Loading…
↗
11
90480−12M25
Grommet (6e9)
Loading…
↗
12
93210−35M86
O-ring(6l2)
Loading…
↗
13
90119−06M94
Bolt, with washer
Loading…
↗
14
6H4−41271−01
Knob, choke
Loading…
↗
15
63V−41256−00
Rod, choke 1
Loading…
↗
16
689−41273−00
Grommet
Loading…
↗
17
6J8−41274−00
Grommet 2
Loading…
↗
18
63V−41252−00
Lever, choke 1
Loading…
↗
19
661−41262−02
Joint, choke lever
Loading…
↗
20
90201−05M09
Washer, plate(63v)
Loading…
↗
21
90164−05M03
Screw, tapping(6g8)
Loading…
↗
