70BETO (2011)
INTAKE

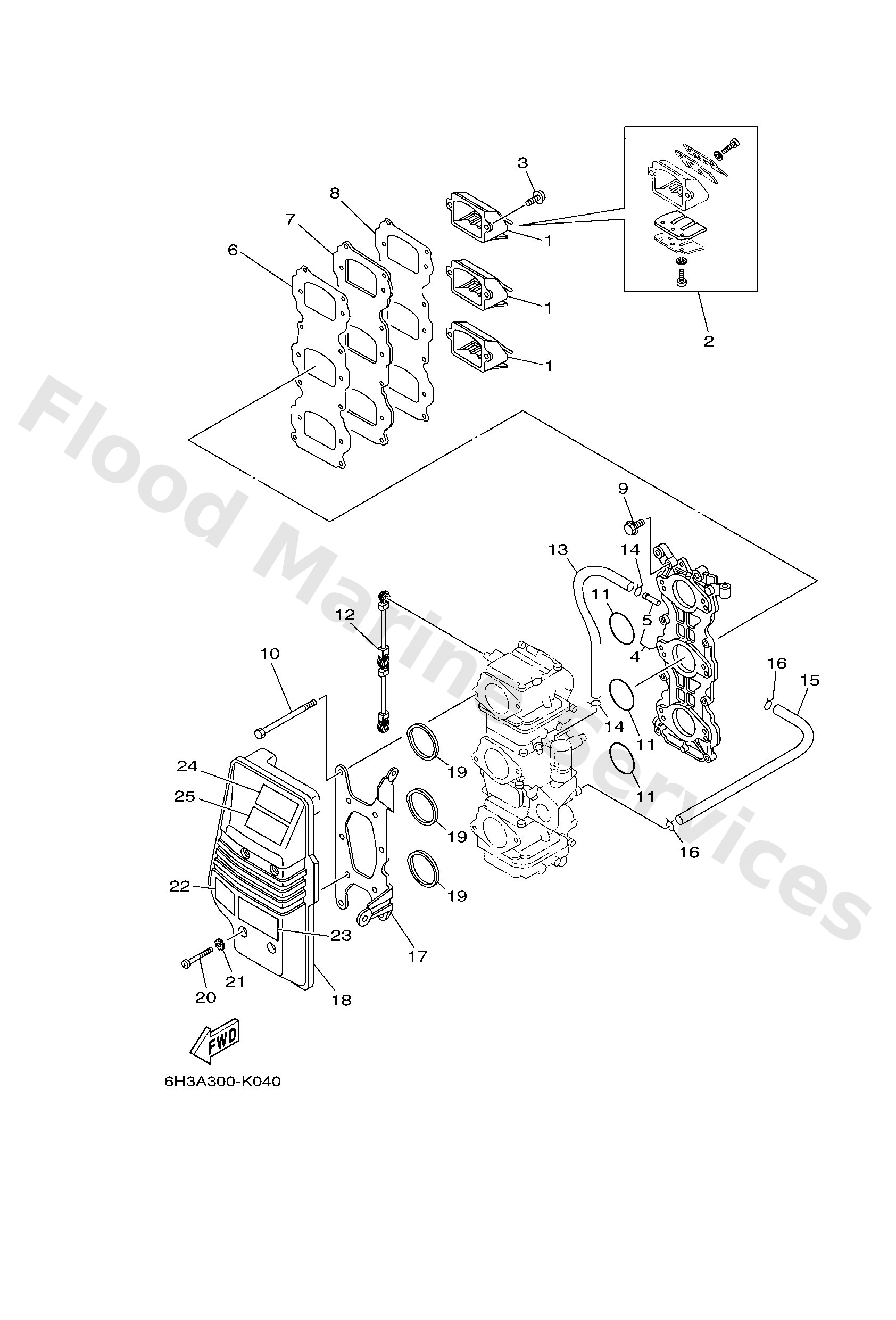

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6H31361000
Reed valve assembly
Loading…
↗
2
688W000400
Reed set
Loading…
↗
3
9798005216
Screw, pan w/ plain
Loading…
↗
4
6H31364113
Manifold 1
Loading…
↗
5
6H11448500
Pipe, joint
Loading…
↗
6
6H313621A1
Gasket, valve seat
Loading…
↗
7
6H31362400
Plate, reed valve
Loading…
↗
8
6H313622A1
Gasket, valve seat
Loading…
↗
9
9011906MA3
Bolt, with washer
Loading…
↗
10
9709506095
Bolt, hexagon deep recess
Loading…
↗
11
9321039ME4
O-ring(6h2)
Loading…
↗
12
6H34121700
Rod, accel lever
Loading…
↗
13
9044507255
Hose (l200)
Loading…
↗
14
9046706016
Clip (655)
Loading…
↗
15
6H31434900
Pipe
Loading…
↗
16
9046708004
Clip, pipe 6162435600
Loading…
↗
17
6H31441311
Stay
Loading…
↗
18
6H31444002
Silencer assembly, intake
Loading…
↗
19
6H31445701
Seal
Loading…
↗
20
9788506045
Screw, pan head(6b0)
Loading…
↗
21
9020906M05
Washer (688)
Loading…
↗
22
6H18571160
Mark, caution
Loading…
↗
23
6K51448800
Label, caution
Loading…
↗
24
6AH8199440
Label, safety
Loading…
↗
25
6AH8199450
Label, safety
Loading…
↗
