F350SA2 (2024)
INTAKE 1

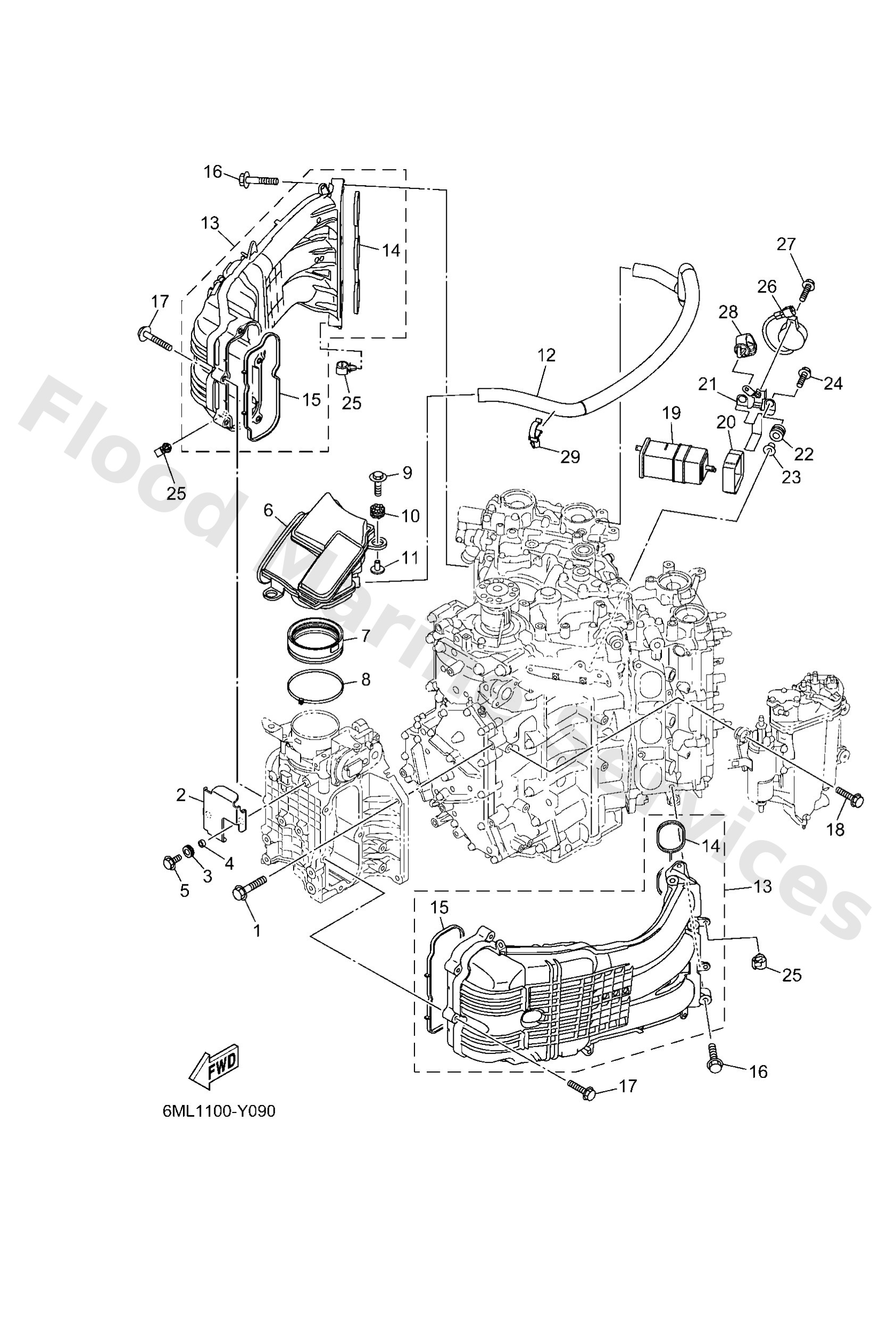

Diagram: INTAKE 1
Parts List
Reference
Description
Price
1
9010508M87
Bolt, washer based
Loading…
↗
2
6ML1388100
Cover 1
Loading…
↗
3
9048013004
Grommet
Loading…
↗
4
9038707054
Collar
Loading…
↗
5
95D9506016
Bolt, flange deep recess
Loading…
↗
6
6ML1444000
Silencer assembly, intake
Loading…
↗
7
6AW1441J01
Pipe, silencer
Loading…
↗
8
9046499004
Clamp
Loading…
↗
9
68F8511900
Bolt
Loading…
↗
10
68F8551601
Spacer
Loading…
↗
11
9038706176
Collar
Loading…
↗
12
6ML1537300
Pipe, breather
Loading…
↗
13
6ML1364100
Manifold, intake 1
Loading…
↗
14
6CB1364500
Gasket, manifold 1
Loading…
↗
15
6ML1364600
Gasket, manifold 2
Loading…
↗
16
9011908020
Bolt, with washer
Loading…
↗
17
9011906MA6
Bolt, with washer
Loading…
↗
18
9011906299
Bolt, with washer
Loading…
↗
19
69J2417000
Canister assembly
Loading…
↗
20
6FP2419E01
Cover, canister
Loading…
↗
21
6KA2134X00
Bracket, canister
Loading…
↗
22
9048010M23
Grommet(6k7)
Loading…
↗
23
9038706289
Collar
Loading…
↗
24
9011906309
Bolt, with washer
Loading…
↗
25
9046413249
Clamp
Loading…
↗
26
6KA8338301
Buzzer
Loading…
↗
27
9011905M04
Bolt, with washer
Loading…
↗
29
9046423005
Clamp
Loading…
↗
