F25GMH (2021)
INTAKE 2

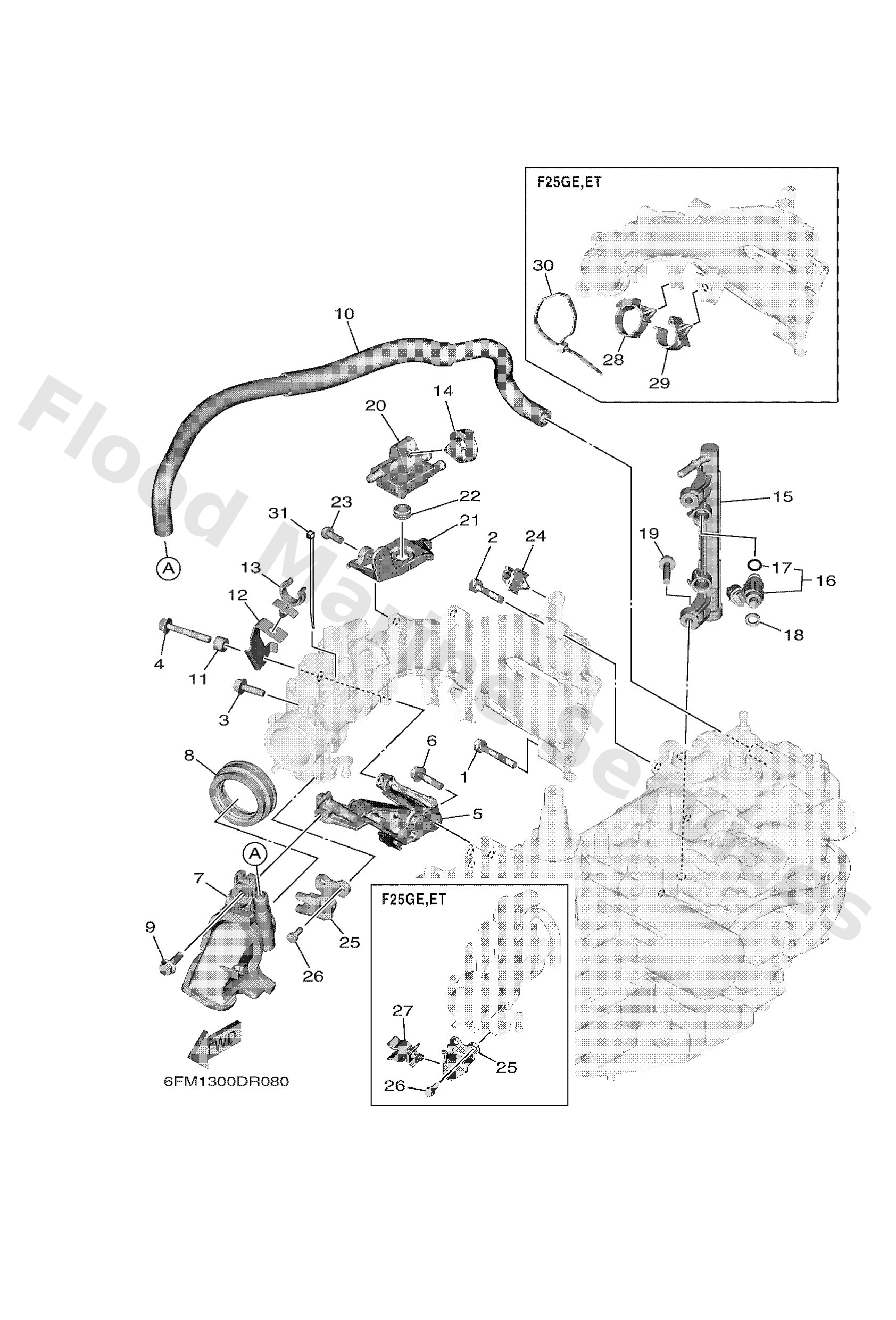

Diagram: INTAKE 2
Parts List
Reference
Description
Price
1
9011906MA6
Bolt, with washer
Loading…
↗
2
9011906MA4
Bolt, with washer
Loading…
↗
3
95D9506020
Bolt, flange deep recess
Loading…
↗
4
95D9506040
Bolt, flange deep recess
Loading…
↗
5
6FM1315201
Stay 2
Loading…
↗
6
95D9506025
Bolt, flange deep recess
Loading…
↗
7
6FM1444010
Silencer assembly, intake
Loading…
↗
8
6FM1441J00
Pipe, silencer
Loading…
↗
10
6FM1537300
Pipe, breather
Loading…
↗
11
9038706318
Collar
Loading…
↗
12
6FM1378200
Stay
Loading…
↗
13
9046416240
Clamp
Loading…
↗
14
9046420181
Clamp(4ap)
Loading…
↗
15
6FM1316100
Pipe, delivery 1
Loading…
↗
16
6FM1376110
Injector
Loading…
↗
17
68V1416A00
O-ring
Loading…
↗
18
6FM1376600
Rubber, injector
Loading…
↗
20
6FM2417F00
Separator
Loading…
↗
21
6FM2419F00
Bracket, canistor
Loading…
↗
22
9048013M24
Grommet (6e9)
Loading…
↗
23
9798006216
Screw, with washer(6h2)
Loading…
↗
24
9046407259
Clamp
Loading…
↗
25
6FM1449700
Stay, throttle wire
Loading…
↗
25
6FM8238900
Plate 2
Loading…
↗
26
9138005012
Bolt,socket
Loading…
↗
27
9046412015
Clamp
Loading…
↗
28
9046412183
Clamp(jn2)
Loading…
↗
29
9046420006
Clamp
Loading…
↗
30
9046515011
Clamp
Loading…
↗
31
9046511M59
Clamp(63m)
Loading…
↗
