Yamaha Outboard Parts - Intake - E40XMH (1998) | Flood Marine
New Search
Parts
New Outboards
Home
E40XMH (1998)
Intake

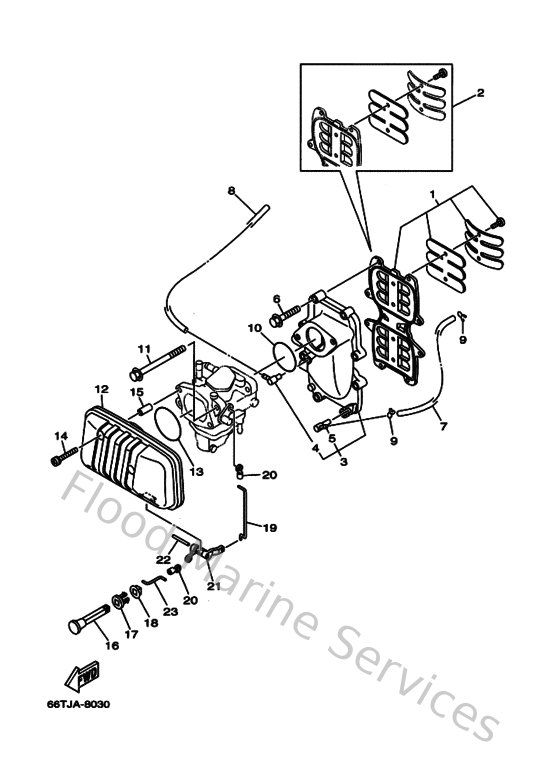

Diagram: Intake
Parts List
Reference
Description
Price
1
66T136100000
Reed valve assembly
Loading…
↗
2
66TW00040000
Reed set
Loading…
↗
4
6E5135520000
Nozzle
Loading…
↗
5
650113720000
Nipple, hose
Loading…
↗
6
970140603500
Bolt(3rv)
Loading…
↗
7
9044507M2400
Hose (l390)
Loading…
↗
8
9044507MA400
Hose (l390)
Loading…
↗
9
904670601600
Clip (655)
Loading…
↗
10
9321046M1600
O-ring (688)
Loading…
↗
11
9011908M8000
Bolt, with washer(688)
Loading…
↗
12
66T144400000
Silencer assembly, intake
Loading…
↗
13
9321054M5400
O-ring (6g1)
Loading…
↗
14
979850624000
Screw, with washer
Loading…
↗
15
9038706M8000
Collar
Loading…
↗
16
6H4412710100
Knob, choke
Loading…
↗
17
689412730000
Grommet
Loading…
↗
18
6J8412740000
Grommet 2
Loading…
↗
19
66T412560000
Rod, choke 1
Loading…
↗
20
661412620200
Joint, choke lever
Loading…
↗
21
66T412520000
Lever, choke 1
Loading…
↗
22
916904003200
Pin, spring (6f5)
Loading…
↗
23
66T412570000
Rod, choke 2
Loading…
↗
