130TRC (2004)
LOWER CASING. DRIVE 3

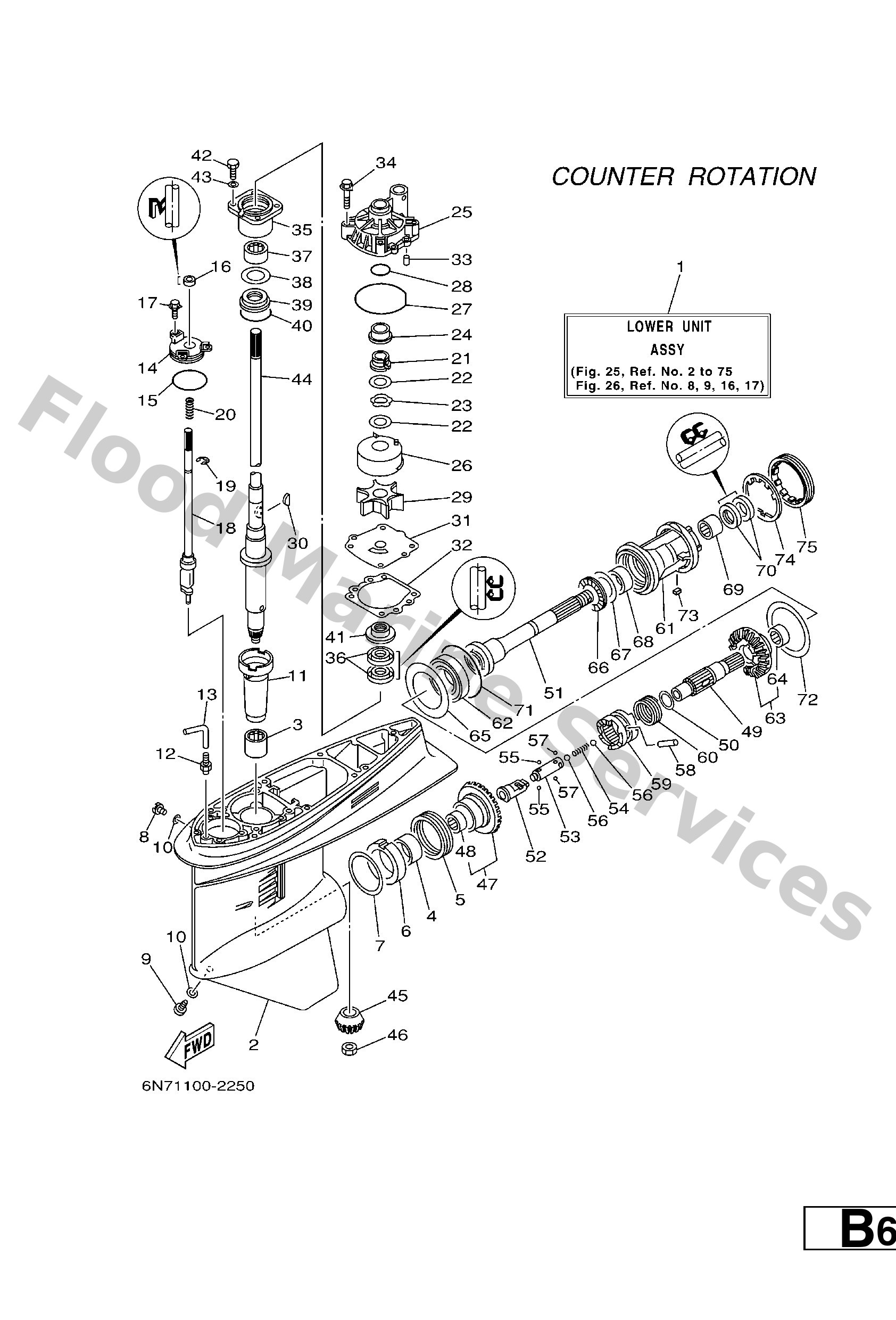

Diagram: LOWER CASING. DRIVE 3
Parts List
Reference
Description
Price
1
6L645300258D
X
Lower Unit assembly
Loading…
↗
2
6E545301058D
Casing, lower
Loading…
↗
3
93315628U9
Brg,cyl-cal roller (6e5)
Loading…
↗
4
93315345W0
Bearing, cylindrical(6l6)
Loading…
↗
5
93341360U8
Bearing, thrust (6l6)
Loading…
↗
6
6L64553800
Spacer, 1
Loading…
↗
7
6E5455670110
UR
Shim (t:0.10mm)
Loading…
↗
7
6E5455670112
UR
Shim (t:0.12mm)
Loading…
↗
7
6E5455670115
UR
Shim (t:0.15mm)
Loading…
↗
7
6E5455670118
UR
Shim (t:0.18mm)
Loading…
↗
7
6E5455670130
UR
Shim (t:0.30mm)
Loading…
↗
7
6E5455670140
UR
Shim (t:0.40mm)
Loading…
↗
7
6E5455670150
UR
Shim (t:0.50mm)
Loading…
↗
8
9034008002
Plug, straight screw
Loading…
↗
9
6884534110
Plug, drain
Loading…
↗
10
9043008020
Gasket
Loading…
↗
11
6E54553600
Sleeve, drive shaft
Loading…
↗
12
6J84537800
Nipple, hose (plug)
Loading…
↗
13
9044507ME9
X
Hose (l250)
Loading…
↗
14
6E54532100
Plate
Loading…
↗
15
9321058144
O-ring(47x)
Loading…
↗
16
9310609014
Oil seal
Loading…
↗
17
9011906M10
Bolt, with washer
Loading…
↗
18
6L64415001
Shift cam assembly
Loading…
↗
19
9900108600
Circlip(2r6)
Loading…
↗
20
9050111M10
Spring, compression (663)
Loading…
↗
21
61A4553800
Spacer, 1
Loading…
↗
22
9020122M01
Washer, plate(61a)
Loading…
↗
23
9020622M19
Washer, wave(61a)
Loading…
↗
24
61A4552700
Collar, drive shaft
Loading…
↗
25
61A4431101
Housing, water pump
Loading…
↗
26
61A4432202
Insert, cartridge
Loading…
↗
27
9321086M38
O-ring (6e5)
Loading…
↗
28
9321037160
O-ring (6g8)
Loading…
↗
29
6E54435201
Impeller
Loading…
↗
30
9028004M05
Key, woodruff (6e5)
Loading…
↗
31
6E54432300
Outer plate, cartridge
Loading…
↗
32
6E544315A0
Gasket,water pump
Loading…
↗
33
9360612019
Pin, dowel (614)
Loading…
↗
34
9011908M14
Bolt, with washer
Loading…
↗
35
6E5453310094
Housing, bearing
Loading…
↗
36
9310128M16
Oil seal (6e5)
Loading…
↗
37
93317330U2
Bearing, cylindrical(6k0)
Loading…
↗
38
6E5455870150
UR
Shim (t:0.50mm)
Loading…
↗
38
6E5455870140
UR
Shim (t:0.40mm)
Loading…
↗
38
6E5455870130
UR
Shim (t:0.30mm)
Loading…
↗
38
6E5455870115
UR
Shim (t:0.15mm)
Loading…
↗
38
6E5455870118
UR
Shim (t:0.18mm)
Loading…
↗
38
6E5455870110
UR
Shim (t:0.10mm)
Loading…
↗
38
6E5455870112
UR
Shim (t:0.12mm)
Loading…
↗
39
93341930V2
Bearing, thrust(64d)
Loading…
↗
40
9321055M14
O-ring (70e)
Loading…
↗
41
6E54534400
Cover, oil seal
Loading…
↗
42
9709508025
Bolt (62g)
Loading…
↗
43
9299508600
Washer, plain (663)
Loading…
↗
44
6E54550121
X
Drive shaft comp.
Loading…
↗
45
6E54555102
Pinion
Loading…
↗
46
9017016M01
Nut, hexagon (688)
Loading…
↗
47
6L64556000
Gear
Loading…
↗
48
93315425U7
Brg,cyl-cal roller (6e5)
Loading…
↗
49
6K14561100
Shaft, Propeller
Loading…
↗
50
9020126M00
Washer, plate(6k0)
Loading…
↗
51
6L64561120
Shaft, Propeller
Loading…
↗
52
6K14564101
Shifter
Loading…
↗
53
6E54563401
Slide, shift
Loading…
↗
54
9050116M37
Spring (6g5)
Loading…
↗
55
9350732009
Ball (12r)
Loading…
↗
56
9351132017
Ball (498)
Loading…
↗
57
9350316003
Ball
Loading…
↗
58
9025008M07
Pin, straight (6g5)
Loading…
↗
59
6E54563101
Clutch, dog
Loading…
↗
60
6E54563301
Ring, cross pin
Loading…
↗
61
6L6453320094
Housing, bearing
Loading…
↗
62
93332000V7
Bearing(6l6)
Loading…
↗
63
6L64557000
Gear
Loading…
↗
64
93315430V5
Bearing, cylindrical(6k0)
Loading…
↗
65
6L64557600
Washer, thrust
Loading…
↗
66
93341440U5
Bearing, thrust (6k0)
Loading…
↗
67
6K1455780110
UR
Shim (t:0.10mm)
Loading…
↗
67
6K1455780112
UR
Shim (t:0.12mm)
Loading…
↗
67
6K1455780115
UR
Shim (t:0.15mm)
Loading…
↗
67
6K1455780118
UR
Shim (t:0.18mm)
Loading…
↗
67
6K1455780130
UR
Shim (t:0.30mm)
Loading…
↗
67
6K1455780140
UR
Shim (t:0.40mm)
Loading…
↗
67
6K1455780150
UR
Shim (t:0.50mm)
Loading…
↗
68
93315440V6
Bearing, cylindrical(6k0)
Loading…
↗
69
93317330U5
Bearing
Loading…
↗
70
9310130M17
Oil seal (6e5)
Loading…
↗
71
9321086M39
O-ring (6e5)
Loading…
↗
72
6L6455770010
UR
Shim (t:0.10mm)
Loading…
↗
72
6L6455770012
UR
Shim (t:0.12mm)
Loading…
↗
72
6L6455770015
UR
Shim (t:0.15mm)
Loading…
↗
72
6L6455770018
UR
Shim (t:0.18mm)
Loading…
↗
72
6L6455770030
UR
Shim (t:0.30mm)
Loading…
↗
72
6L6455770040
UR
Shim (t:0.40mm)
Loading…
↗
72
6L6455770050
UR
Shim (t:0.50mm)
Loading…
↗
73
9028204010
Key, strait(663)
Loading…
↗
74
6884538302
Washer, claw
Loading…
↗
75
6884538400
Nut
Loading…
↗
