E8DMH (1999)
Lower Casing & Drive 2

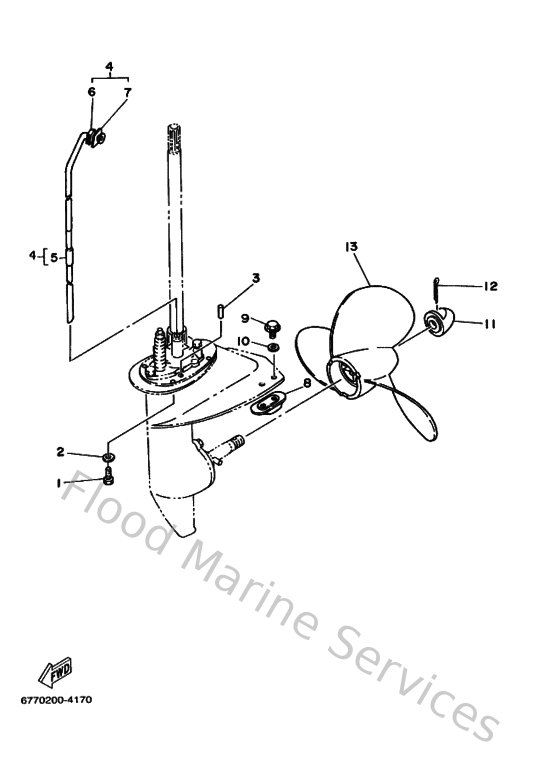

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
970950602000
Bolt(7u8)
Loading…
↗
2
929900660000
Washer, plain (646)
Loading…
↗
3
936040806200
Pin,dowel (626)
Loading…
↗
4
655443601000
Tube, water
Loading…
↗
5
904451126200
Hose (l30)
Loading…
↗
6
655443650000
Damper, water seal 1
Loading…
↗
7
655443730000
Set plate, water tube
Loading…
↗
8
6E0452511200
Anode
Loading…
↗
9
958950601600
Bolt, flange deep recess
Loading…
↗
10
929900630000
Washer, tooth
Loading…
↗
11
647456160200
Nut, propeller
Loading…
↗
12
914903003000
Pin, cotter
Loading…
↗
13
6554594500EL
Propeller (3x9 x6-1/4 -c)
Loading…
↗
