225DETO (2002)
METER

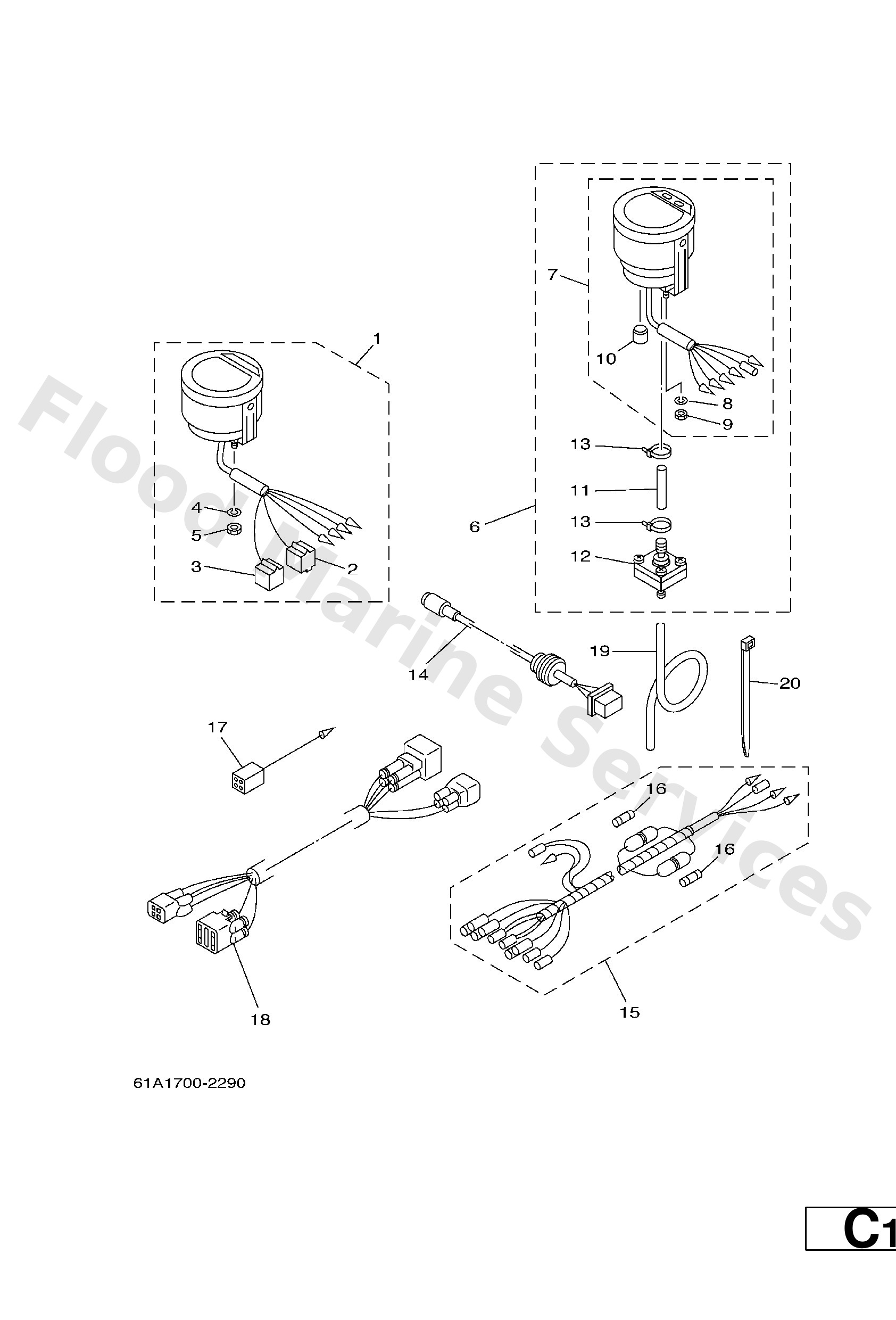

Diagram: METER
Parts List
Reference
Description
Price
1
6Y5--8350T--01
AP
Digital tachometer assembly
Loading…
↗
2
9E450--04433
M−4−W
Housing, connector (m-4-w)
Loading…
↗
3
9E450--04533
F−4−W
Housing, f-4-w(5pcs)
Loading…
↗
4
92990--04100
Ybs67-4 washer, spring
Loading…
↗
5
95380--04600
Nut,hex
Loading…
↗
6
6Y5--83500--S5
AP
Digital Speedometer assembly
Loading…
↗
7
6Y5--83570--S5
Speedometer assembly
Loading…
↗
10
6Y5--83533--T2
Grommet
Loading…
↗
11
6Y5--83557--31
Tube
Loading…
↗
12
6Y5--83728--00
Connector assembly
Loading…
↗
20
90465--11M10
AP
Clamp
Loading…
↗
14
6Y5--87122--S0
AP
Cord assembly 1
Loading…
↗
15
6Y5--83553--M0
AP
Wire, lead (l=2.5m)
Loading…
↗
16
1E6--82151--00
Fuse (10a)
Loading…
↗
17
6Y5--82117--00
AP
Wire, lead
Loading…
↗
18
68F--82553--80
AP
Extension, wire lead (8m)
Loading…
↗
19
6Y5--83557--10
AP
Tube (8m)
