Yamaha Outboard Parts - METER - F150FET (2015) | Flood Marine

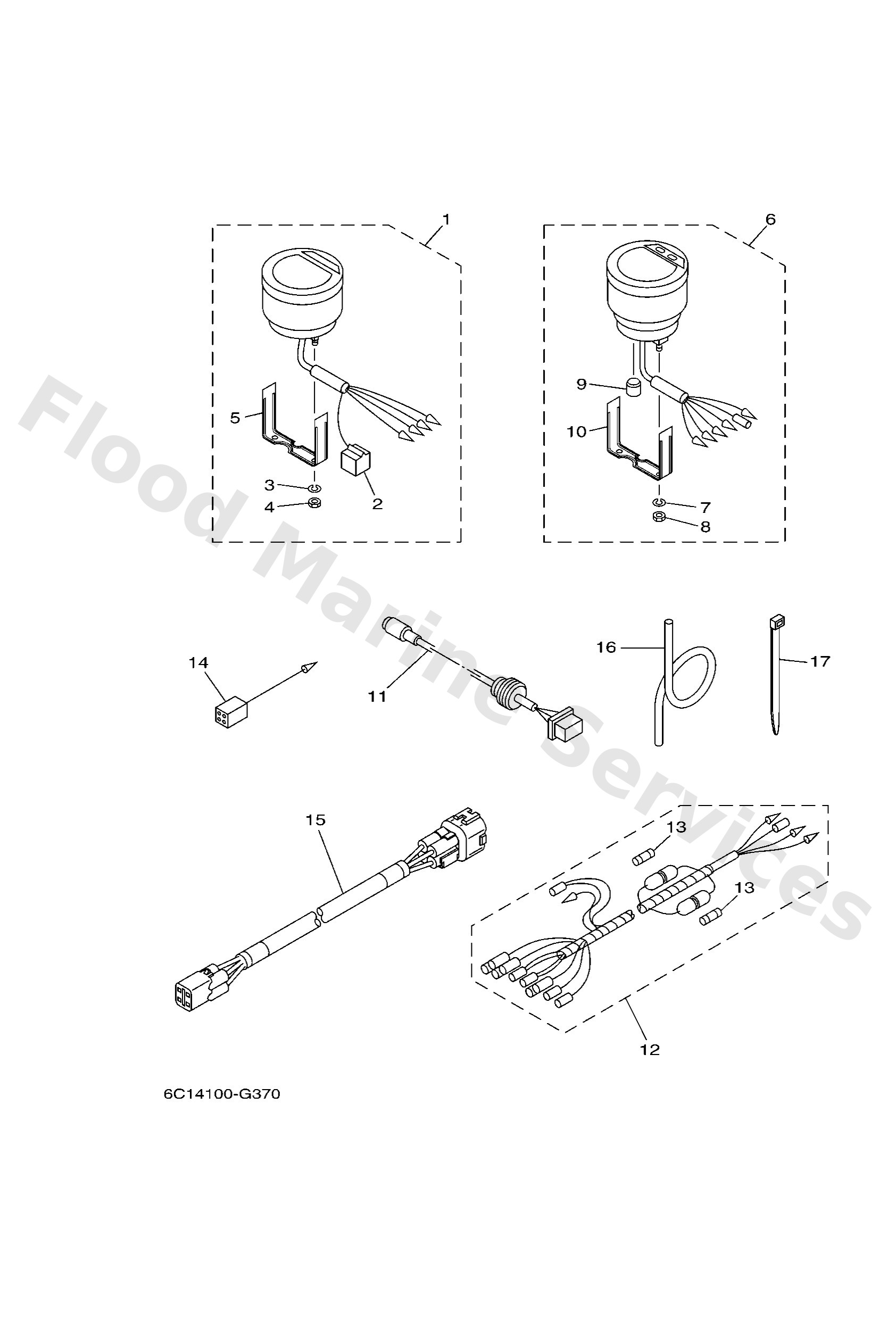

Diagram: METER

Diagram

Parts List

Reference

Description

Price

1

6Y58350T91 AP

Tachometer assembly

Loading…

2

9E45004533 F-4-W

Housing, f-4-w(5pcs)

Loading…

3

9299004100

Ybs67-4 washer, spring

Loading…

4

9538004600

Loading…

5

6Y58355XT1

Bracket, meter 1

Loading…

6

6Y583570S6 AP

Speedometer assembly

Loading…

9

6Y583533T2

Loading…

11

6Y587122S0 AP

Cord assembly 1

Loading…

12

6Y583553M0 AP

Wire, lead (l=2.5m)

Loading…

13

1E68215100

Loading…

14

6Y58211700 AP

Loading…

15

6Y58365330 AP 4P,8M

Loading…

16

6Y58355710 AP

Loading…

17

9046511M10 AP

Loading…
