FT9.9AMH (1987)
Magneto

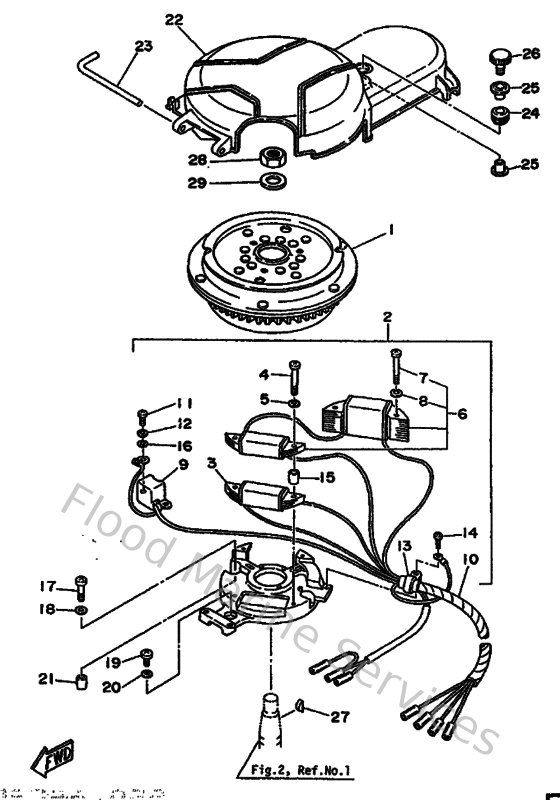

Diagram: Magneto
Parts List
Reference
Description
Price
4
978020504000
Screw,panhead (eg9)
Loading…
↗
5
929020510000
Ybs67-5 washer, spring
Loading…
↗
8
929900510000
Ybs67-5 washer, spring
Loading…
↗
11
978030501200
Screw,pan head (646)
Loading…
↗
12
929030510000
Ybs67-5 washer, spring
Loading…
↗
13
445813282000
Clamp, read
Loading…
↗
14
978020400800
Screw, pan head (713)
Loading…
↗
15
6G8855190000
Spacer
Loading…
↗
16
929900560000
Washer, plain (646)
Loading…
↗
17
978030602500
Screw, pan head(6b0)
Loading…
↗
18
929030660000
Washer, plain (646)
Loading…
↗
19
985800602000
Screw pan head
Loading…
↗
22
6G8813370100
Cover, Flywheel
Loading…
↗
23
6G8427520000
Shaft
Loading…
↗
24
9048015M3100
Grommet (6g1)
Loading…
↗
25
9038706M7100
Collar (6g8)
Loading…
↗
26
6G8813230000
Screw 1
Loading…
↗
27
902800500100
Key, woodruff
Loading…
↗
28
901701206600
Nut, hexagon 6481155500
Loading…
↗
29
902011247200
Washer, plate (4n0)
Loading…
↗
7
985070504000
Screw, pan
Loading…
↗
11
985170501200
Screw, pan
Loading…
↗
16
929030560000
Washer, plain (646)
Loading…
↗
