F20FETL (2018)
OIL PAN

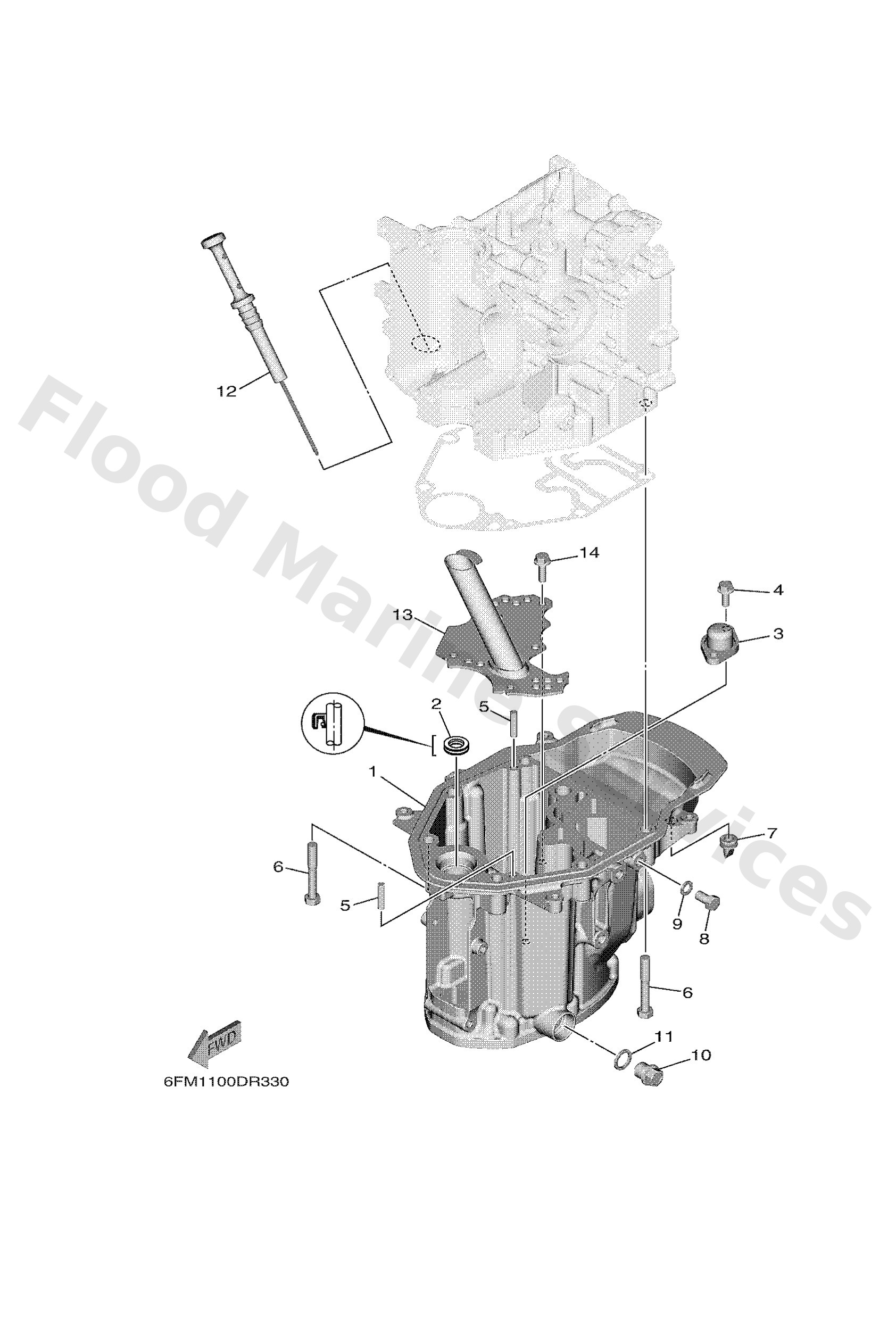

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
6FM15311008D
Oil pan
Loading…
↗
2
9310113001
Oil seal
Loading…
↗
3
6FM1341100
Strainer, oil
Loading…
↗
4
9582206016
Bolt, flange
Loading…
↗
5
9360625M00
Pin, dowel b (676)
Loading…
↗
6
9757508555
Bolt, hexagon w/w deep recess
Loading…
↗
7
65W4271700
Rubber, seal 2
Loading…
↗
8
9709508014
Bolt, hexagon deep recess
Loading…
↗
9
9043008143
Gasket (256-11198-00)
Loading…
↗
10
9034014M06
Plug, straight screw(62y)
Loading…
↗
11
9043014M09
Gasket
Loading…
↗
12
6FM1536200
Plug, oil level
Loading…
↗
13
6FM1331700
Plate, baffle
Loading…
↗
14
9582206020
Bolt, flange
Loading…
↗
