F25GMH (2021)
OIL PUMP

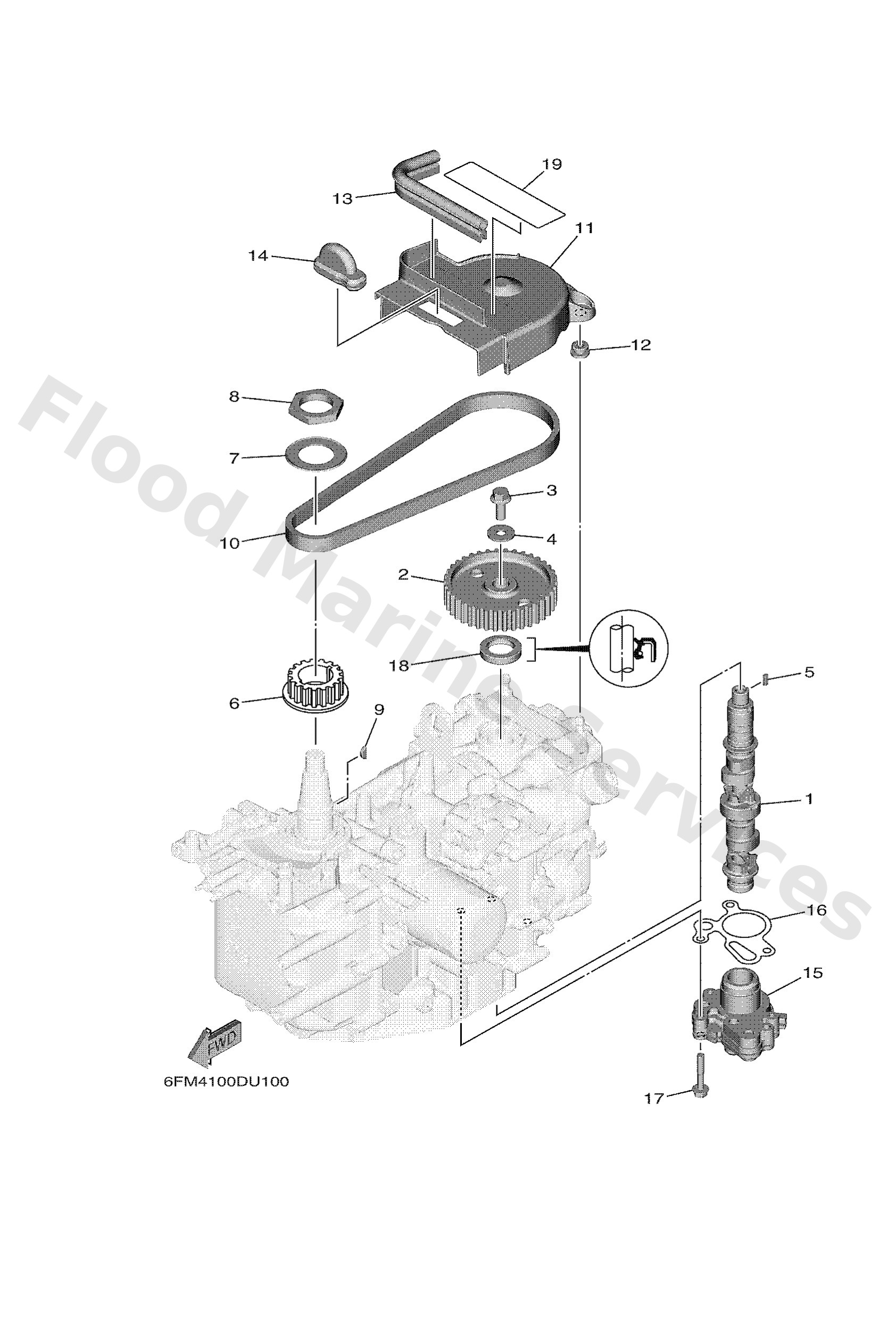

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
6FM1217010
Camshaft assembly 1
Loading…
↗
2
6AH1153701
Gear, driven
Loading…
↗
3
90105081A7
Bolt, washer based(jn9)
Loading…
↗
4
9020108784
Washer, plate (3l7)
Loading…
↗
5
9028205012
Key, straight
Loading…
↗
6
6AH1153600
Gear, drive
Loading…
↗
7
6AH1155700
Washer 1
Loading…
↗
8
9017030009
Nut
Loading…
↗
9
9028003M01
Key woodruff 146115450000
Loading…
↗
10
6FM4624100
Belt
Loading…
↗
11
6FM4629700
Cover, dust
Loading…
↗
12
9048010627
Grommet
Loading…
↗
13
6FM4261700
Damper, form
Loading…
↗
14
6FM8163901
Cover
Loading…
↗
15
6AH1330000
Oil pump assembly
Loading…
↗
16
6AH1332910
Gasket, pump cover
Loading…
↗
17
9010506035
Bolt, flange
Loading…
↗
18
9310222010
Oil seal
Loading…
↗
19
6FM1343762
Mark, caution
