FL225HET (2019)
POWER TRIM & TILT ASSY 1

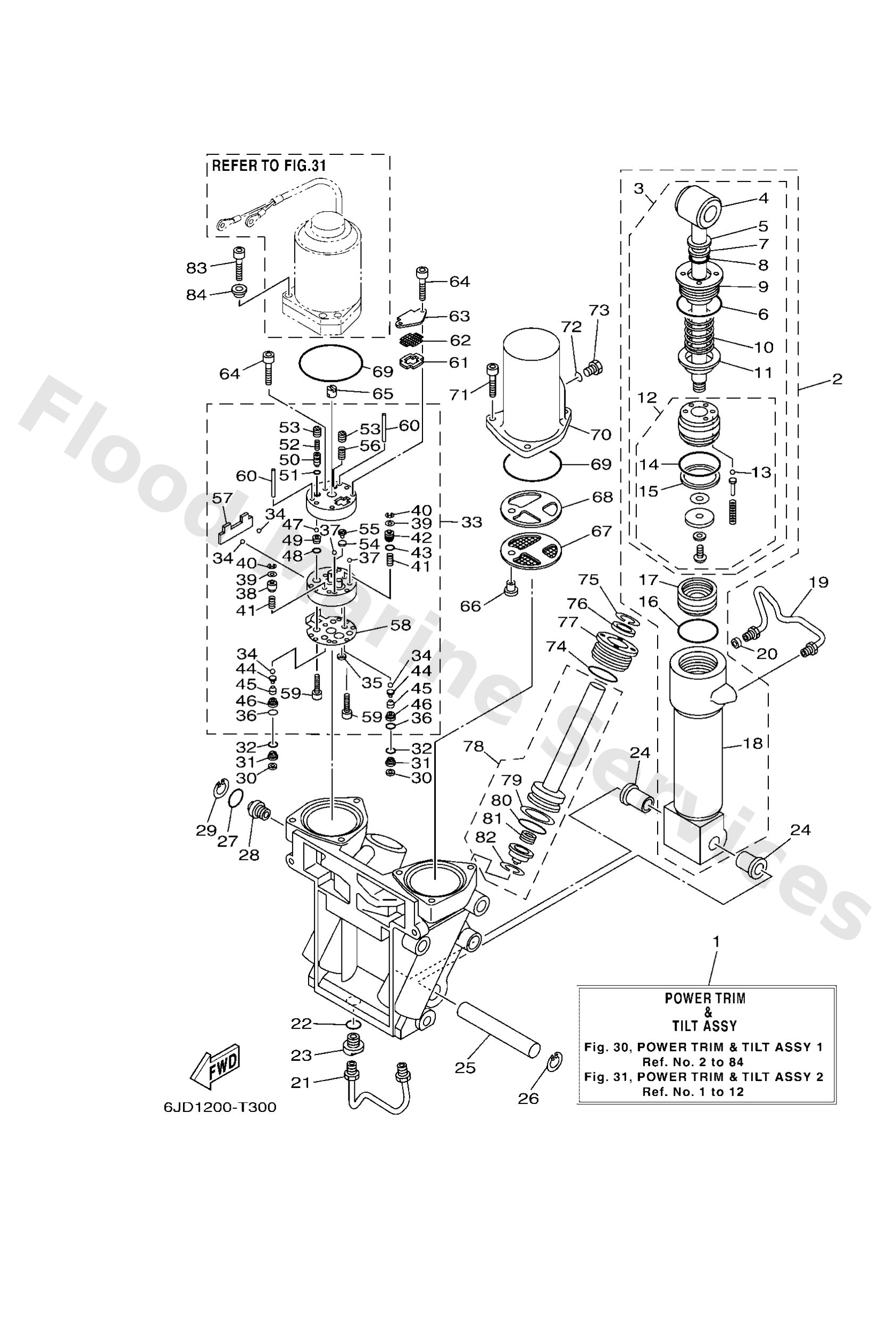

Diagram: POWER TRIM & TILT ASSY 1
Parts List
Reference
Description
Price
1
69J43800108D
Power trim & tilt assembly
Loading…
↗
2
6CE4384000
Power tilt assembly
Loading…
↗
3
6CE4381000
Tilt piston sub assembly
Loading…
↗
4
69J4380101
Rod
Loading…
↗
5
9310619N50
Oil Seal
Loading…
↗
6
63P4386120
O-ring
Loading…
↗
7
6H14387200
Ring, Back Up
Loading…
↗
8
61A4389H01
O-ring
Loading…
↗
9
61A4381100
Screw, Cylinder End
Loading…
↗
10
69J4384H00
Spring
Loading…
↗
11
69J4382E00
Adaptor 2
Loading…
↗
12
6CE4380P00
Piston sub assembly
Loading…
↗
13
9350532038
Ball
Loading…
↗
14
61A4386100
O–Ring
Loading…
↗
15
61A4387100
Ring, Back Up
Loading…
↗
17
6H14381411
Piston, free
Loading…
↗
18
61A4381302
Cylinder, tilt
Loading…
↗
19
69J4383510
Pipe
Loading…
↗
20
69J4388J00
Plug 2
Loading…
↗
21
69J4383302
Pipe
Loading…
↗
22
9321017239
O–Ring
Loading…
↗
23
69J4388E01
Bolt ,screw
Loading…
↗
24
9038618M14
Bush
Loading…
↗
25
61A4381800
Pin, Lower Shock Mount
Loading…
↗
26
61A4387600
Ring, Snap
Loading…
↗
27
6D84386300
O-Ring
Loading…
↗
28
69J4384500
Screw, Manual Release
Loading…
↗
29
6H14387500
Ring, Snap
Loading…
↗
30
69J4381C00
Filter 3
Loading…
↗
31
69J4389901
Plate Stopper
Loading…
↗
32
69J4389J00
O-Ring
Loading…
↗
33
69J4383001
Gear pump assembly
Loading…
↗
37
9350316003
Ball
Loading…
↗
38
6CJ4384M00
Piston, Shuttle 2
Loading…
↗
39
69A4384F00
Seal, Main Valve
Loading…
↗
40
9900203600
Clip
Loading…
↗
41
69J4389400
Spring, Shuttle Return
Loading…
↗
42
6CJ4384100
Piston, Shuttle
Loading…
↗
43
6H14388300
O-Ring
Loading…
↗
44
60V4386A00
Pin, absorber valve
Loading…
↗
45
69J4385300
Spring, Main Valve
Loading…
↗
46
6CJ4389300
Washer
Loading…
↗
47
9350108001
Ball
Loading…
↗
48
9321008391
O–Ring
Loading…
↗
49
69J4385100
Seat, Relief Valve
Loading…
↗
50
63P4384420
Pin, valve support
Loading…
↗
51
93210064A5
O-Ring
Loading…
↗
52
69J4385500
Spring, Up Relief
Loading…
↗
53
6CJ4384300
Screw, valve lock
Loading…
↗
54
6H14384G11
Seal, Relief Valve
Loading…
↗
55
6H14384410
Pin, Valve Support
Loading…
↗
56
6H14385610
Spring, Down Relief
Loading…
↗
57
69J4385400
Spring, Manual Release
Loading…
↗
58
69J4384G00
Seal, Relief Valve
Loading…
↗
59
9131805025
Bolt
Loading…
↗
60
9360435236
Pin, Dowel
Loading…
↗
61
69J4387100
Ring, Back Up
Loading…
↗
62
69J4381600
Filter 1
Loading…
↗
63
69J4381J00
Plate
Loading…
↗
64
9131805040
Bolt
Loading…
↗
65
69J4383100
Connector, Shaft
Loading…
↗
66
69J4388H00
Plug
Loading…
↗
67
69J4381700
Filter 2
Loading…
↗
68
69J4388F00
Spacer
Loading…
↗
69
9321066001
O-ring
Loading…
↗
70
69J4382800
Body, Reservoir
Loading…
↗
71
69J4388800
Bolt, Socket
Loading…
↗
72
9321009165
25
Loading…
↗
73
6H14382900
Plug, Reservoir
Loading…
↗
75
6T44387501
Ring, snap
Loading…
↗
76
69J4382200
Seal, trim dust
Loading…
↗
77
61A4382101
Screw, trim cylinder end
Loading…
↗
78
69J4382001
Trim piston sub assembly
Loading…
↗
79
61A4387400
Ring, Back Up
Loading…
↗
80
61A4386400
O–Ring
Loading…
↗
81
61A4384H10
Spring
Loading…
↗
82
61A4387510
Ring, Snap
Loading…
↗
83
9011008M05
Bolt, Hexagon Socket Head
Loading…
↗
84
6GR2311300
Collar
Loading…
↗
