Yamaha Outboard Parts - Partie Electrique 2 - L250AETO (1995) | Flood Marine

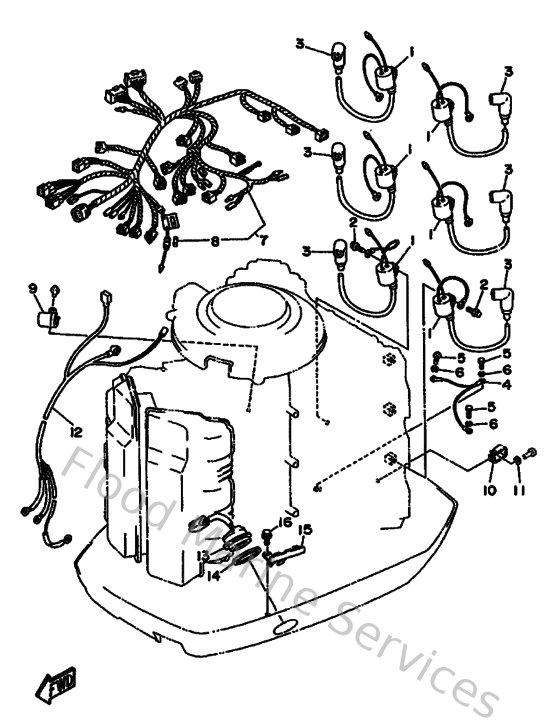

Diagram: Partie Electrique 2

Diagram

Parts List

Reference
Description
Price


1
61A855700000
Ignition coil assembly
Loading…

↗
2
975130652000
Bolt, with washer(61b)
Loading…

↗
3
6E3823702000
Plug cap assembly
Loading…

↗
4
61A825310000
Wire, lead
Loading…

↗
5
970800601200
Bolt(gh1)
Loading…

↗
6
929950610000
Washer(6a1)
Loading…

↗
7
61A825900200
Wire Harness Assembly
Loading…

↗
8
682821510100
Fuse
Loading…

↗
9
9046510M1400
Clamp
Loading…

↗
10
9046508M3300
Clamp(6t4)
Loading…

↗
11
929900660000
Washer, plain (646)
Loading…

↗
12
61A821050000
Battery cable
Loading…

↗
13
6R3825630100
Trim & tilt switch assembly
Loading…

↗
14
6E5825870000
Gasket
Loading…

↗
15
61A836140000
Bracket
Loading…

↗
16
970950601200
Bolt(gh1)
Loading…

↗
