F40AET (2001)
Power Trim & Tilt Assy 2

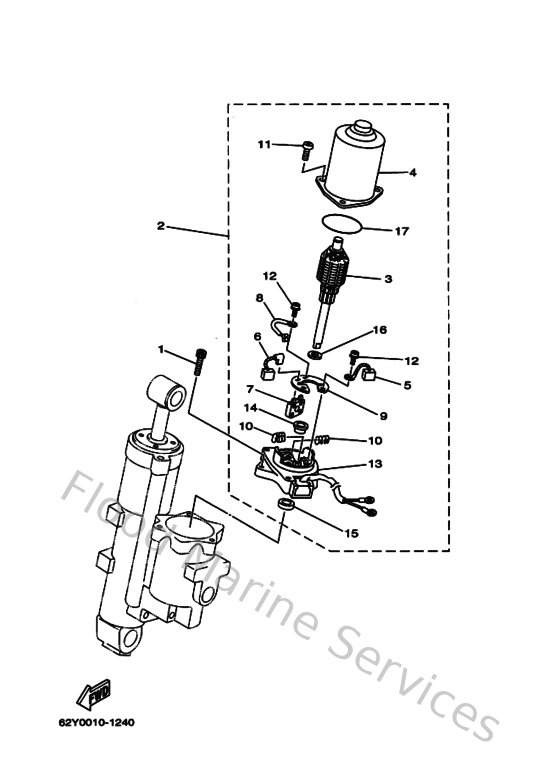

Diagram: Power Trim & Tilt Assy 2
Parts List
Reference
Description
Price
1
62X438880000
Bolt,socket
Loading…
↗
2
CS3438800000
Motor assembly
Loading…
↗
3
CS3438050000
Armature assembly
Loading…
↗
4
62X438040100
Stator assembly
Loading…
↗
5
CS3438920000
Brush 2
Loading…
↗
6
CS3438910000
Brush 1
Loading…
↗
7
CS3821810000
Circuit Breaker Comp
Loading…
↗
8
62X438070000
Wire sub assembly
Loading…
↗
9
62X4380F0000
Plate, brush holder
Loading…
↗
10
62X4386K0000
Spring, brush
Loading…
↗
11
978800502000
Screw, pan head (e22)
Loading…
↗
12
976020421600
Screw, pan head with washer
Loading…
↗
13
62Y438810000
Frame, end
Loading…
↗
14
62X4380H0000
Metal
Loading…
↗
15
931020841400
Oil seal(61a)
Loading…
↗
16
90201083J800
Washer, plate(62x)
Loading…
↗
17
932105244900
O-ring(50m)
Loading…
↗
