Yamaha Outboard Parts - REMO CON ATTACHMENT - F15CMH (2013) | Flood Marine

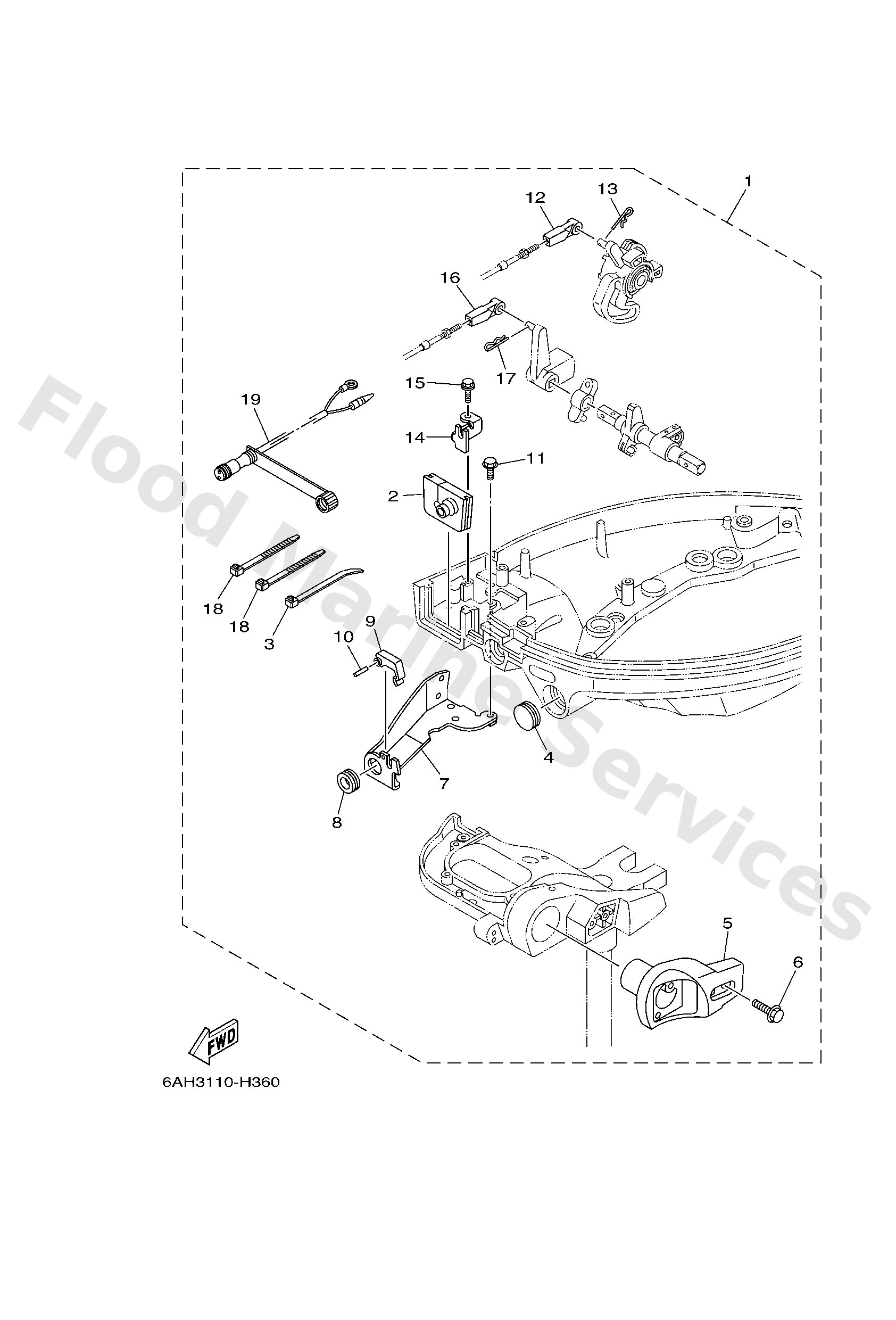

Diagram: REMO CON ATTACHMENT

Diagram

Parts List

Reference
Description
Price


1
6AH4850100 AP
Remote cont. attachment assembly.
Loading…

↗
2
6AH4272410
Grommet
Loading…

↗
3
9046511M10
Clamp
Loading…

↗
4
65W4272610
Grommet
Loading…

↗
5
6AH8377300
Bracket, switch
Loading…

↗
6
9759506530
Bolt, hexagon w/w deep recess
Loading…

↗
7
6AH4853200
Bracket, remote control 2
Loading…

↗
8
9048019031
Grommet(75v)
Loading…

↗
9
6824853850
Clamp, cable
Loading…

↗
10
9169030012
Pin, spring
Loading…

↗
11
9759506514
Bolt(gj3)
Loading…

↗
12
6634834400
Cable end, remote control
Loading…

↗
13
9046818008
Clip 620436610000
Loading…

↗
14
6AH4853100
Bracket, remote control 1
Loading…

↗
15
9010906M86
Bolt
Loading…

↗
18
9046513M18
Clamp
Loading…

↗
19
6D58434000
Socket cord assembly 1
Loading…

↗
