Yamaha Outboard Parts - REMOTE CONTROL ATTACHMENT - 15FMH (2003) | Flood Marine

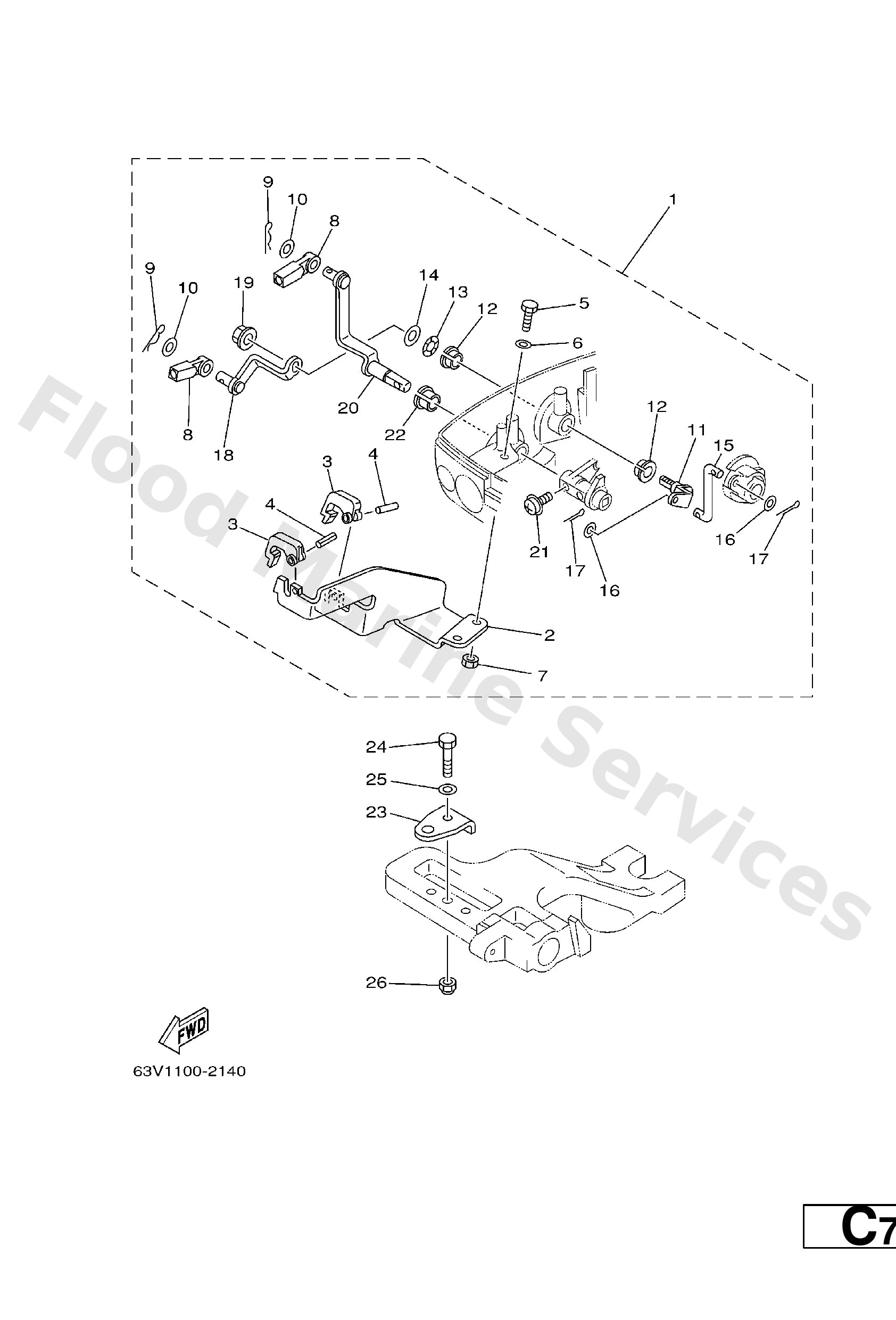

Diagram: REMOTE CONTROL ATTACHMENT

Diagram

Parts List

Reference
Description
Price


1
63V−48501−00 AP
Remote cont. attachment assembly
Loading…

↗
2
63V−48531−00
Bracket, remote control 1
Loading…

↗
3
682−48538−50
Clamp, cable
Loading…

↗
4
91690−30012
Pin, spring
Loading…

↗
5
97095−06016
Bolt, hexagon deep recess
Loading…

↗
6
92995−06600
Washer, plain (646)
Loading…

↗
7
95380−06600
Nut(661)
Loading…

↗
8
663−48344−00
Cable end, remote control
Loading…

↗
9
90468−18008
Clip 620436610000
Loading…

↗
10
90201−08M12
Washer plate (682)
Loading…

↗
11
63V−42154−00
Lever, throttle control
Loading…

↗
12
90386−10025
Bushing (658)
Loading…

↗
13
90206−10M04
Washer, wave (676)
Loading…

↗
14
90201−10M02
Washer, plate(6g9)
Loading…

↗
15
63V−42192−00
Rod 2
Loading…

↗
16
90201−04M06
Washer, plate(26h)
Loading…

↗
17
91490−20010
Pin, cotter
Loading…

↗
18
63V−48534−00
Throttle lever, control
Loading…

↗
19
95780−08300
Nut, nylon (6j8)
Loading…

↗
20
63V−48544−00
Lever, shiftcontrol
Loading…

↗
21
90159−05M25
Screw,pan head (646)
Loading…

↗
22
90386−10009
Bushing 6484418600
Loading…

↗
23
63V−48511−01 AP
Hook, steering
Loading…

↗
24
97075−08035 AP
Bolt(70w)
Loading…

↗
25
92995−08600 AP
Washer, plain (663)
Loading…

↗
26
90185−08057 AP
Nut, nylon (6j8)
Loading…

↗
