F9.9FMH (2010)
REPAIR KIT 3

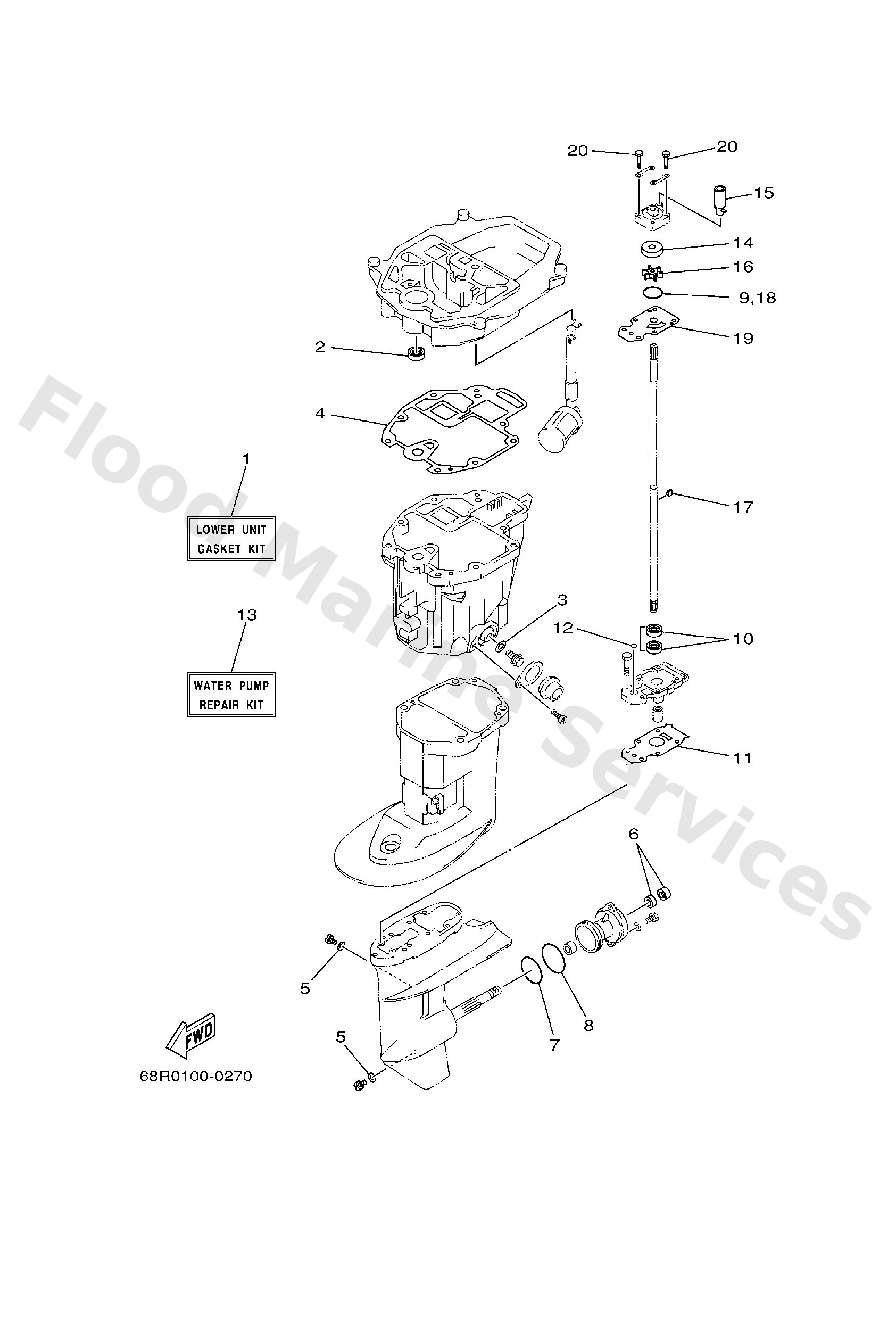

Diagram: REPAIR KIT 3
Parts List
Reference
Description
Price
1
68TW000120
Lower unit gasket kit
Loading…
↗
2
9310112M70
Oil seal
Loading…
↗
3
9043010M11
Gasket
Loading…
↗
4
68T1347500
Gasket
Loading…
↗
5
9043008020
Gasket
Loading…
↗
6
9310115074
Oil seal (655)
Loading…
↗
7
9321049046
O-ring (620)
Loading…
↗
8
9321053M08
O-ring(50m)
Loading…
↗
9
9321044398
O-ring(55x)
Loading…
↗
10
9310111M23
Oil seal (6g1)
Loading…
↗
11
68T45315A0
Packing, lower casing
Loading…
↗
12
9321006ME6
O-ring
Loading…
↗
13
68TW007800
Water pump repair kit
Loading…
↗
14
63V4432200
Insert, cartridge
Loading…
↗
15
68T4436600
Damper, water seal 2
Loading…
↗
16
68T4435200
Impeller
Loading…
↗
17
6644433800
Key, woodruff
Loading…
↗
19
68T4432300
Outer plate, cartridge
Loading…
↗
20
9708008045
Bolt, hexagon
Loading…
↗
