Yamaha Outboard Parts - Remote Control Assy - 8CEM (1987) | Flood Marine

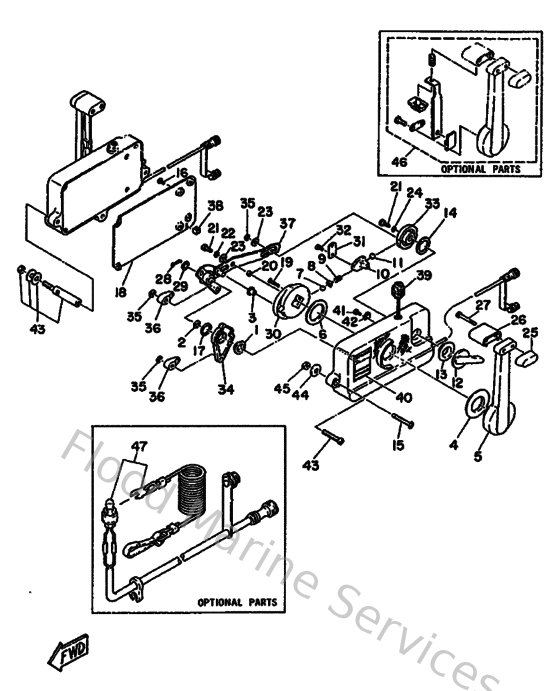

Diagram: Remote Control Assy

Diagram

Parts List

Reference
Description
Price


1
701481011000
Remote control assembly
Loading…

↗
2
701481971000
Washer, wave 2
Loading…

↗
3
701482520000
Roller, cam
Loading…

↗
4
701482340000
Bushing 1
Loading…

↗
5
701482210000
Lever, control
Loading…

↗
6
701481961100
Washer, wave 1
Loading…

↗
9
702482380000
Spring, Detent
Loading…

↗
23
701482460000
Spacer
Loading…

↗
24
929900630000
Washer, tooth
Loading…

↗
25
701482290000
Grip, control lever 2
Loading…

↗
26
701482220000
Grip, control lever
Loading…

↗
27
701482820000
Screw, pan head
Loading…

↗
28
701482390000
Set Pin, Plate
Loading…

↗
29
701482660000
Spacer 2
Loading…

↗
30
701482320000
Gear 1
Loading…

↗
31
701481891100
Retainer
Loading…

↗
32
985800501000
Screw, pan head(62x)
Loading…

↗
